Syj-200 Precision Sample Cutting Saw
| Price: |
US $ 99-7999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product Description
Model: | SYJ-200 Precision Cutting Saw |

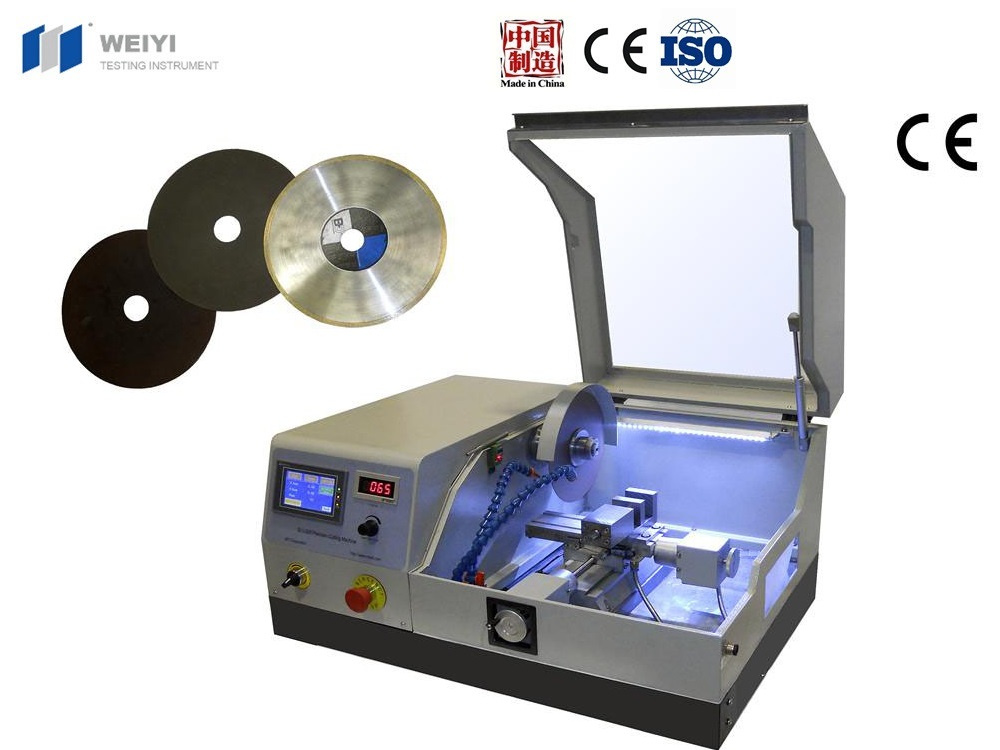

Brief Introduction: | SYJ-200 Precision Cutting Saw is a CE certified precision cutting saw, widely used in universities and colleges, researching labs for high speed cutting metal, ceramic, glass, rock, concrete, organic materials. Because of equipping with high precision walking system, SYJ-200 Precision Cutting Saw has a high cutting accuracy. It is a effective tool for analyzing the materials. Our company provides fastener blade clamps and process based on your requirement. |
Main Feature: | 1. Pulse width adjustable speed, high torque, running steady.
2. The big color touch screen, digital display, parameter precision and adjustable.
3. X, Y-axis are driven by stepping motor
4. Coolant circulating system. 5. Design all kinds of suitable blade clamps according to your requirement. |
Technical Parameter: | 1. Speed range:0-3000rpm
2. Blade dimension:100mm,120mm,150mm,200mm
3. Max.travel distance:X-axis:60mm; Y-axis:70mm Theoretical max cutting depth :60mm
4. Voltage:220V
5. Total power:600W
6. Control:manual control by central programming unit |
Specification: | Size:622mm x523mm x460mm Weight:65kg |
Standard Accessories: | 1. | Edge sintered Diamond Blade | 1 pc | | 2. | Sic blade | 2 pcs | | 3. | Al2O3 blade | 2 pcs | | 4. | Blade clamps (Φ32mm,Φ25.4mm) | 2 suit | | 5. | Resin ceramic block | 2 pcs | | 6. | Wax for gluing samples | 10 pcs | | 7. | Coolant circulating tank with pump | 1 pc | |
|
Optional Accessories : | Fastener blade clamps |
More Information
Laizhou Weiyi Experimental Instrument Manufacturing Co. Ltd. Is engaged in domestic metallographic sample preparation equipment, sample preparation supplies R & D, production and sales of leading enterprises. The company was founded in 2001, covering an area of 55 acres. We have 110 staff at present, among which there are 32 engineering and technical staff, 17 staff working for products and technology development. We are a high-tech enterprises authorized by Shandong science and technology department, as well as the base on scientific research in Shandong province.
In 2004, the company passed the ISO9001 quality system certification.
In 2005 we achieved the independent right of import and export.
In 2011 we first achieved CE certification in the domestic industry, laying the foundation for the comprehensive development of international market.
We have established 3 sales companied in China, more than 200 dealers. Meanwhile we have more than 20 foreign agents in the world.
We have been focusing on the investment in technology development. In recent years we have developed a number of international advanced level of metallographic sample preparation equipment. We have won 4 national invention patents, dozens of patents of utility model patents as well as the appearance patents. Several products can replace the imported products, which makes the "WEIYI"brand the leading brand in the domestic industry.
Welcome all friends at home and abroad to our company for visits
