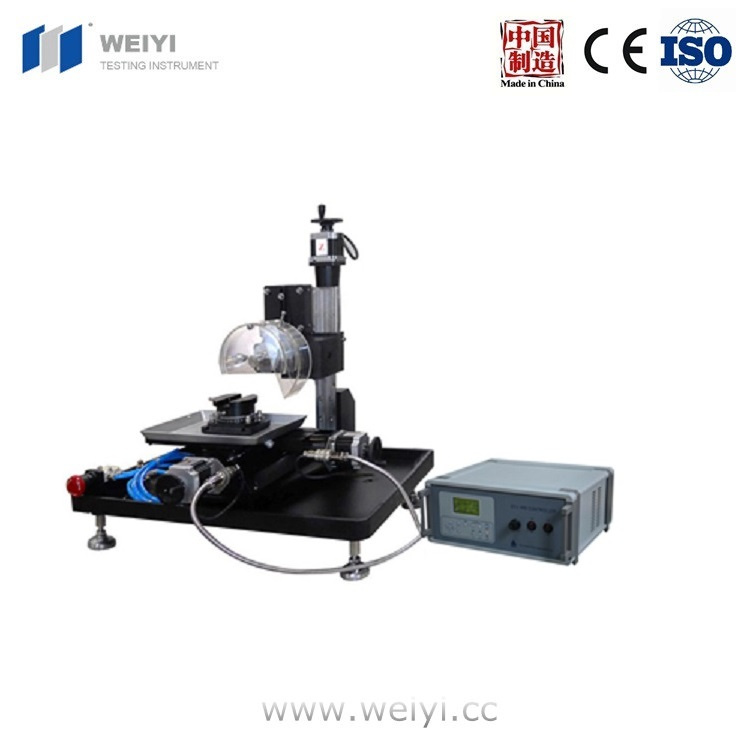

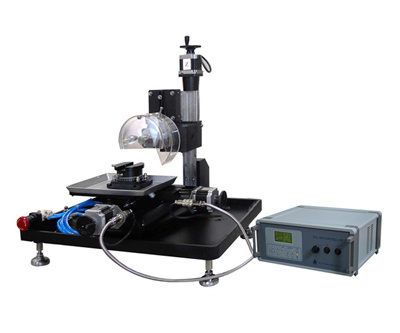

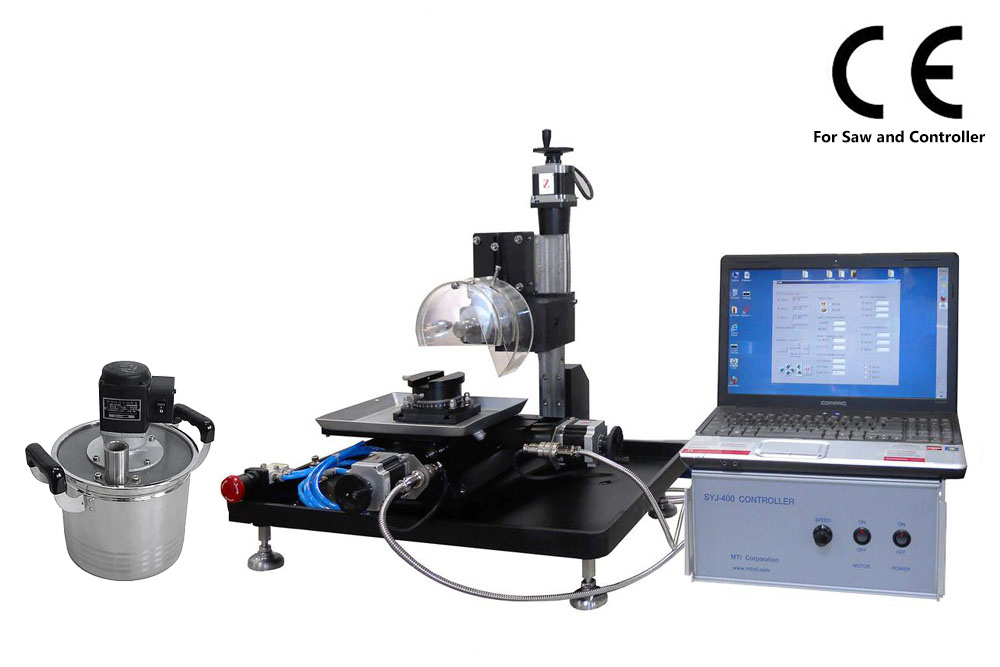

Syj-400 CNC Cutting/Dicing Saw for Lab Equipment
| Price: |
US $ 99-1999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
SYJ-400 CNC Cutting/Dicing Saw |
Product Description
Model: | SYJ-400 CNC Cutting/Dicing Saw |
Brief Introduction: | SYJ-400 CNC Cutting/Dicing Saw is a CE certified cutting saw, designed from the manufacture of precision computerized milling and grinding machine. Main motor, adjustable speed box, lead screw, hand wheel, lead rail, stepping motor are imported from US. It can be used for cutting and dicing all kinds of materials, depth can reach to 25mm. The machine is completely controlled by computer, accuracy is 0.01mm, providing a full MTI operating program, or single board machine operating program, can be programed by customer, automatic cut. Sample flatform can rotate 360°, equipping with one cross mount vise, one vacuum chuck. |
Main Feature: | SYJ-400 CNC Cutting/Dicing Saw:High precision processing, program is flexible and diversified, easy to operate. |
Technical Parameter: | 1. 0.5HP high torque DC motor, Stepless speed adjust:0-3000RPM,Voltage:110V-220V
2. X=230mm, Y=130mm, Z=110mm(Max. travel distance).PC control stepping motor moving resolution:0.0025mm, Position accuracy:0.01mm.
3. Equip with one precision sample platform(Dia:80mm), can turn 360° , cutting angle tolerance:+ /-0.5 . 4. Dia. precision vacuum pump:100mm
5. Blade clamps(3 set):Φ90mm, Φ62mm, Φ42mm 6. Cutting depth:50mm |
Specification: | Size:580×560×660mm Weight:39kg |
Standard Accessories: | 1. | Electroplating diamond blade : Φ100×12.7×0.4mm | 2pcs | | 2. | Full sintered Diamond Blade:Φ100×12.7×0.35mm | 1pc | | 3. | Vacuum pump | 1set | | 4. | Cross mount vise | 1set | | 5. | Aluminum Plate | 2pcs | | 6. | Steel plate for holding sample | 2pcs | | 7. | Blade clamps | 3set | | 8. | Wax | 4pcs | | 9. | Resin ceramic block | 2pcs | |
|
Optional Accessories : | 1. Edge sintered Diamond Blade:150×12.7×0.40mm 2. Dicing diamond blade 3. TW-0.5C Vacuum pump 4. Water-proof cover |
Product Purpose: | Used for cutting crystal, ceramic, glass, rock, metal samples. |
Standard package | Standard package( shock absorption and moisture proof) |
More Information
Laizhou Weiyi Experimental Instrument Manufacturing Co. Ltd. Is engaged in domestic metallographic sample preparation equipment, sample preparation supplies R & D, production and sales of leading enterprises. The company was founded in 2001, covering an area of 55 acres. We have 110 staff at present, among which there are 32 engineering and technical staff, 17 staff working for products and technology development. We are a high-tech enterprises authorized by Shandong science and technology department, as well as the base on scientific research in Shandong province.
In 2004, the company passed the ISO9001 quality system certification.
In 2005 we achieved the independent right of import and export.
In 2011 we first achieved CE certification in the domestic industry, laying the foundation for the comprehensive development of international market.
We have established 3 sales companied in China, more than 200 dealers. Meanwhile we have more than 20 foreign agents in the world.
We have been focusing on the investment in technology development. In recent years we have developed a number of international advanced level of metallographic sample preparation equipment. We have won 4 national invention patents, dozens of patents of utility model patents as well as the appearance patents. Several products can replace the imported products, which makes the "WEIYI"brand the leading brand in the domestic industry.
Welcome all friends at home and abroad to our company for visits
