Syj-50 Metallographic Sample Cutting Saw
| Price: |
US $ 99-2999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
Product Description

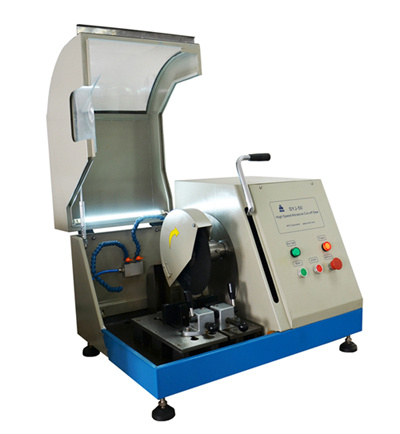

SYJ-50 Metallographic Sample Cutting Saw
Model: | SYJ-50 Metallographic Sample Cutting Saw |
Brief Introduction: | SYJ-50 Metallographic Sample Cutting Saw is used for cutting metal, resin, ceramic and other kinds of materials. It's a ideal tool for being used in the colleges, universities and the researching labs. This machine equips with fast fixture, convenient to quickly fasten the sample. CE certified. |
Main Feature: | Metallographic Sample Cutting Saw cuts down the metallographic samples by the high speed rotary sheet wheel, it is widely used for cutting the metallic materials in the metallographic labs. Because of the cooling system, take away the heat created by the cutting process, so avoid to change the metallographic structure by the high temperature.
1. Double fast fixture, suit for cutting bent axis, valve and other complex shape objects.
2. Cutting chamber has emergency light, convenient to monitor the cutting process.
3. Stainless steel platform, to avoid corrosion.
4. Multi water pipes cooling, it's good for taking the heat off quickly when it is running.
5. Hyaline resin observation window, safe and reliable. |
Technical Parameter: | 1. Rotary speed:2800RPM
2. Voltage:220V
3. Power:1.5KW
4. Sand paper specification:250x2x25mm
5. Max. cutting diameter:60mm |
Specification: | Size:750 x600 x550mm Weight:85kg |
Standard Accessories: | 1 | Sic blade:φ250mm×32mm×2.0mm | 1pc | | 2 | Al2O3 blade: φ250mm×32mm×2.0mm | 1pc | | 3 | Edge sintered Diamond Blade:φ250mm×25.4mm×2.0mm | 1pc | | 4 | Blade clamps :φ20mm×φ80mm | 1set | |
|
Optional Accessories : | Circulating pump(for cooling water circulation) |
more information
Laizhou Weiyi Experimental Instrument Manufacturing Co. Ltd. Is engaged in domestic metallographic sample preparation equipment, sample preparation supplies R & D, production and sales of leading enterprises. The company was founded in 2001, covering an area of 55 acres. We have 110 staff at present, among which there are 32 engineering and technical staff, 17 staff working for products and technology development. We are a high-tech enterprises authorized by Shandong science and technology department, as well as the base on scientific research in Shandong province.
In 2004, the company passed the ISO9001 quality system certification.
In 2005 we achieved the independent right of import and export.
In 2011 we first achieved CE certification in the domestic industry, laying the foundation for the comprehensive development of international market.
We have established 3 sales companied in China, more than 200 dealers. Meanwhile we have more than 20 foreign agents in the world.
We have been focusing on the investment in technology development. In recent years we have developed a number of international advanced level of metallographic sample preparation equipment. We have won 4 national invention patents, dozens of patents of utility model patents as well as the appearance patents. Several products can replace the imported products, which makes the "WEIYI"brand the leading brand in the domestic industry.
Welcome all friends at home and abroad to our company for visits
