Syj-800 Sample Cutting/Dicing Saw for Lab
| Price: |
US $ 99-1999/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
SYJ-800 Cutting/Dicing Saw |
Product Description
Model: | SYJ-800 Cutting/Dicing Saw |

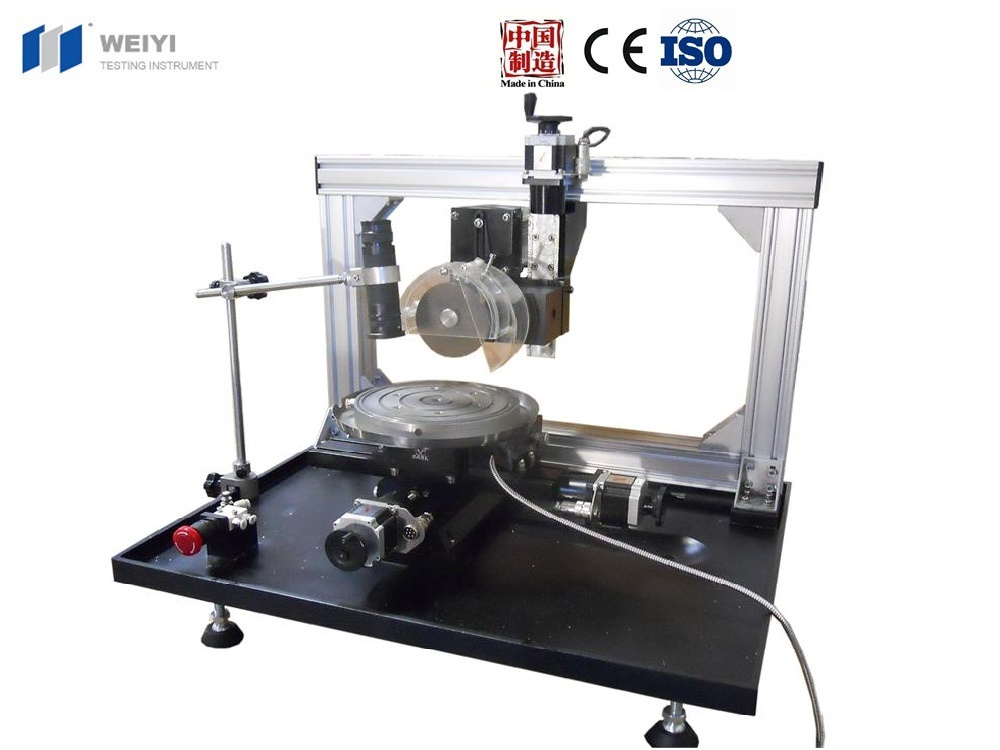

Brief Introduction: | SYJ-800 Cutting/Dicing Saw is mainly used for dicing and cutting all kinds of crystal, glass, ceramic, mineral, metal. It can realize the computer 3D automatic control. Dicing crystal wafer's diameter can reach to 200mm, cutting accuracy can reach to 0.02mm. It's one of the best precision cutting saw for lab and factory's manufacturing. |
Main Feature: | 1. Single board computer and normal computer can be used to control this machine, allowing user to program, manual cutting and dicing. 2. 0.5 hp high torque brushless DC motor, can reach to 0-3000 r/min,voltage: 110V-220V.
3. PC controlled stepping motor driving resolution 0.0025mm,position accuracy 0.01mm.
4. Manual control / Automatic digital control by control box .Equip with exquisite sample spinning platform, can turn 360°, cutting angle tolerance + /-0.5° . 5. Equip with precision φ200mm vacuum chuck, andφ200mm glass or ceramic resin sample holder. 6. Suited blade and blades clamp can be choice according to cutting materials' dimension.
7. Water-proof system and splashing protection,throttle valve adjust the cutting liquid flow. |
Technical Parameter: | No. | Item | Technical Standard | Unit | 1 | Principal axis drive power | 0.5 | p | 2 | Principal axis rotating speed | 0-3000 | r/min | 3 | X-axis travel distance | 205 | mm | 4 | Y-axis travel distance | 205 | mm | 5 | Z-axis travel distance | 70 | mm | 6 | Processing wafer thk. | 0.05-2.5 | mm | 7 | Cutting max depth | 10 | mm | 8 | Operating platform turn angle and turn angle error | 360±0.01 | (°) | 9 | Stepping motor resolution | 0.0025 | mm | 10 | Stepping motor position accuracy | 0.01 | mm | 11 | Dia.Sample Holder | 200 | mm | 12 | Dia.Vacuum chuck | 200(8inch) | mm | 13 | Blade outside diameter | Dicing blade 86,cutting blade 100 | mm | 14 | Blade inside diameter | 12.7 | mm | 15 | Voltage | 220 | V |
|
Specification: | 700mm×530mm×750mm |
More Information
Laizhou Weiyi Experimental Instrument Manufacturing Co. Ltd. Is engaged in domestic metallographic sample preparation equipment, sample preparation supplies R & D, production and sales of leading enterprises. The company was founded in 2001, covering an area of 55 acres. We have 110 staff at present, among which there are 32 engineering and technical staff, 17 staff working for products and technology development. We are a high-tech enterprises authorized by Shandong science and technology department, as well as the base on scientific research in Shandong province.
In 2004, the company passed the ISO9001 quality system certification.
In 2005 we achieved the independent right of import and export.
In 2011 we first achieved CE certification in the domestic industry, laying the foundation for the comprehensive development of international market.
We have established 3 sales companied in China, more than 200 dealers. Meanwhile we have more than 20 foreign agents in the world.
We have been focusing on the investment in technology development. In recent years we have developed a number of international advanced level of metallographic sample preparation equipment. We have won 4 national invention patents, dozens of patents of utility model patents as well as the appearance patents. Several products can replace the imported products, which makes the "WEIYI"brand the leading brand in the domestic industry.
Welcome all friends at home and abroad to our company for visits
