Synthetic Diamond Plate Hpht CVD for Industrial or Jeweral or Seed

Name: Synthetic Diamond Plate Hpht CVD for Industrial or Jeweral or Seed
Brand: tool-buy.com
SKU: 810961355
Availability: InStock
Rating: 4.5 (143 reviews)

Price:	US $ 0.1-100/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Chenguang Machinery & Electric Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	cs
Color:	Yellow
Hardness:	10
Process Type:	Hpht
Material:	Diamond
Usage:	Industrial Tools

Product Description

synthetic diamond plate hpht cvd for industrial or jeweral or seed

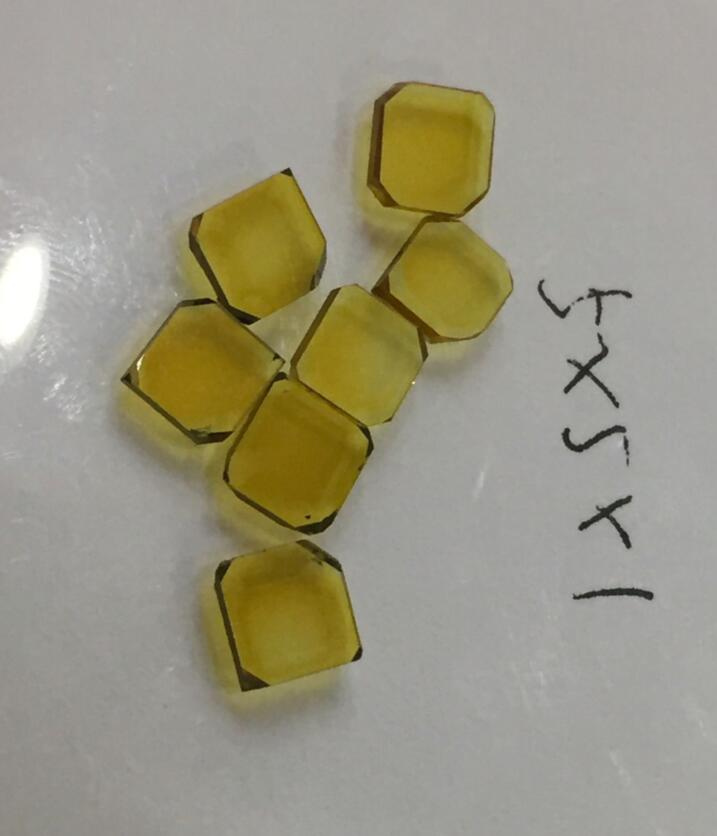

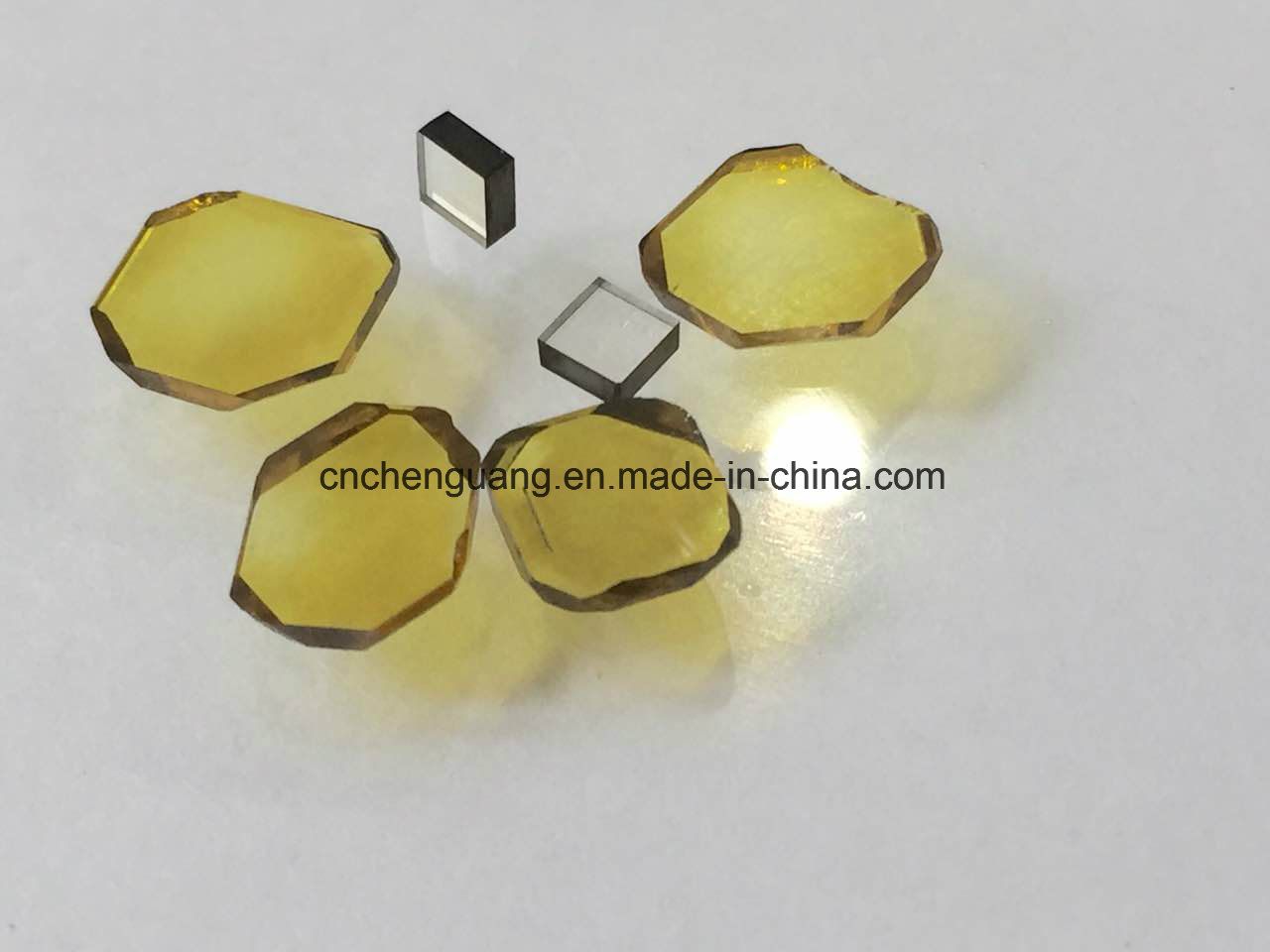

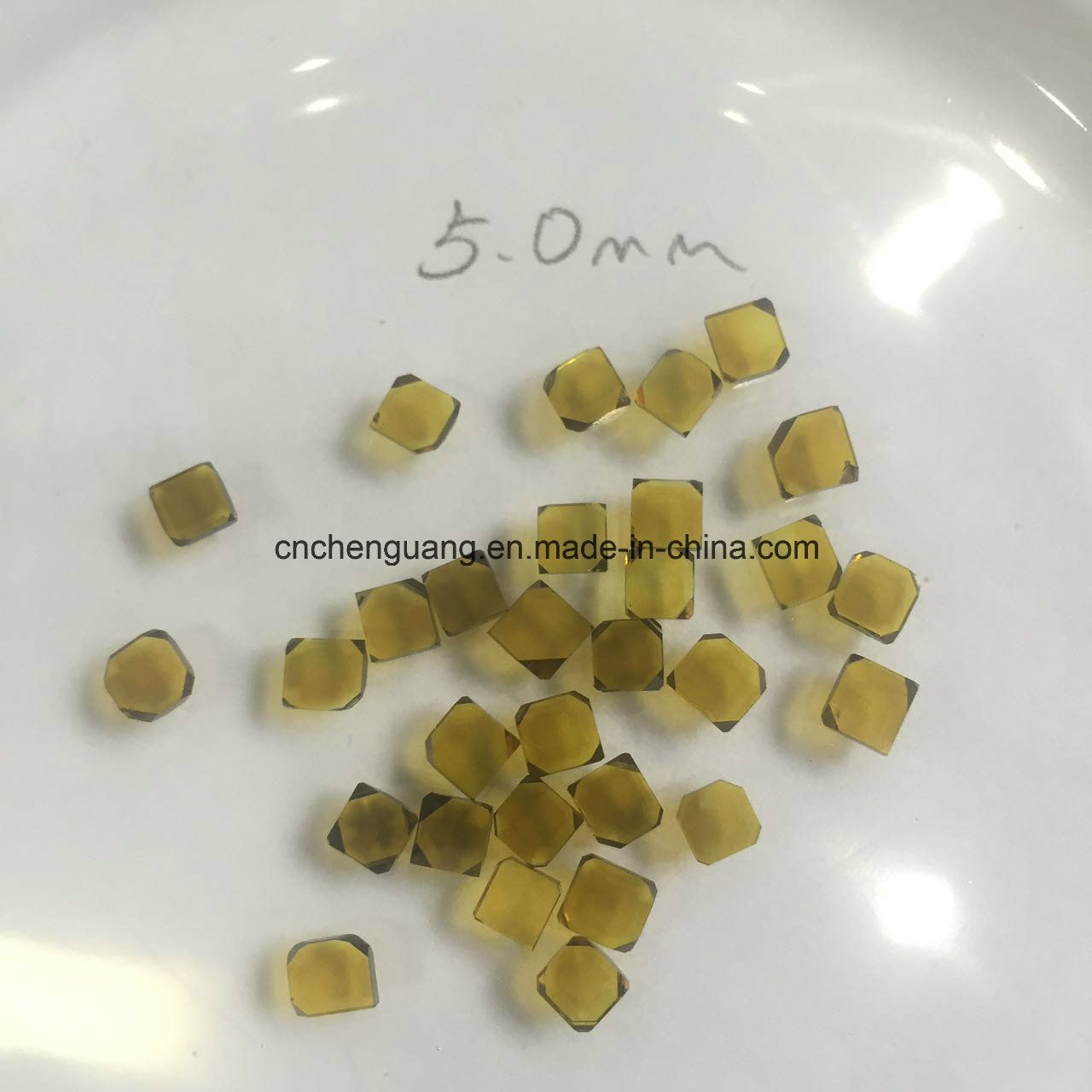

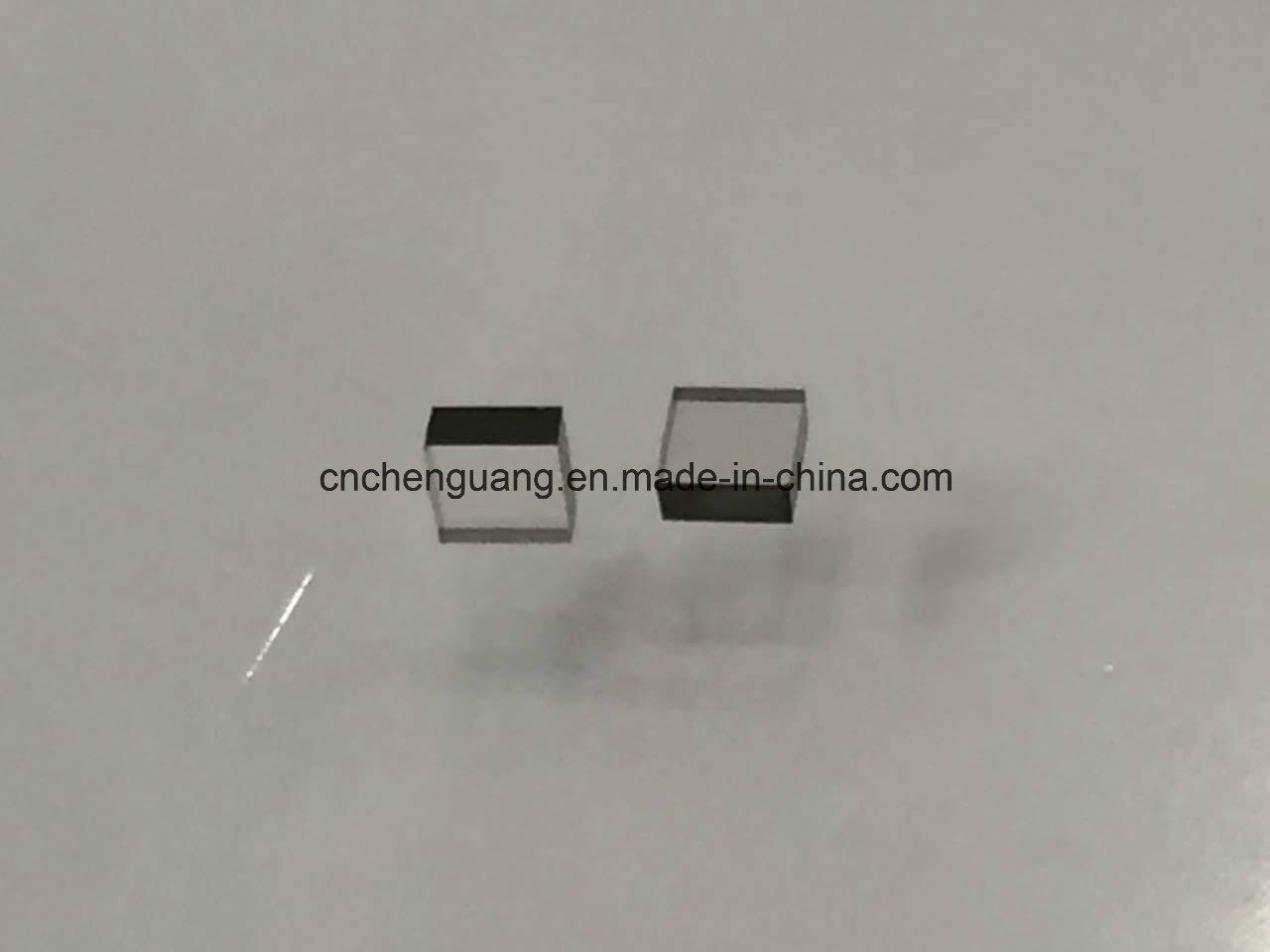

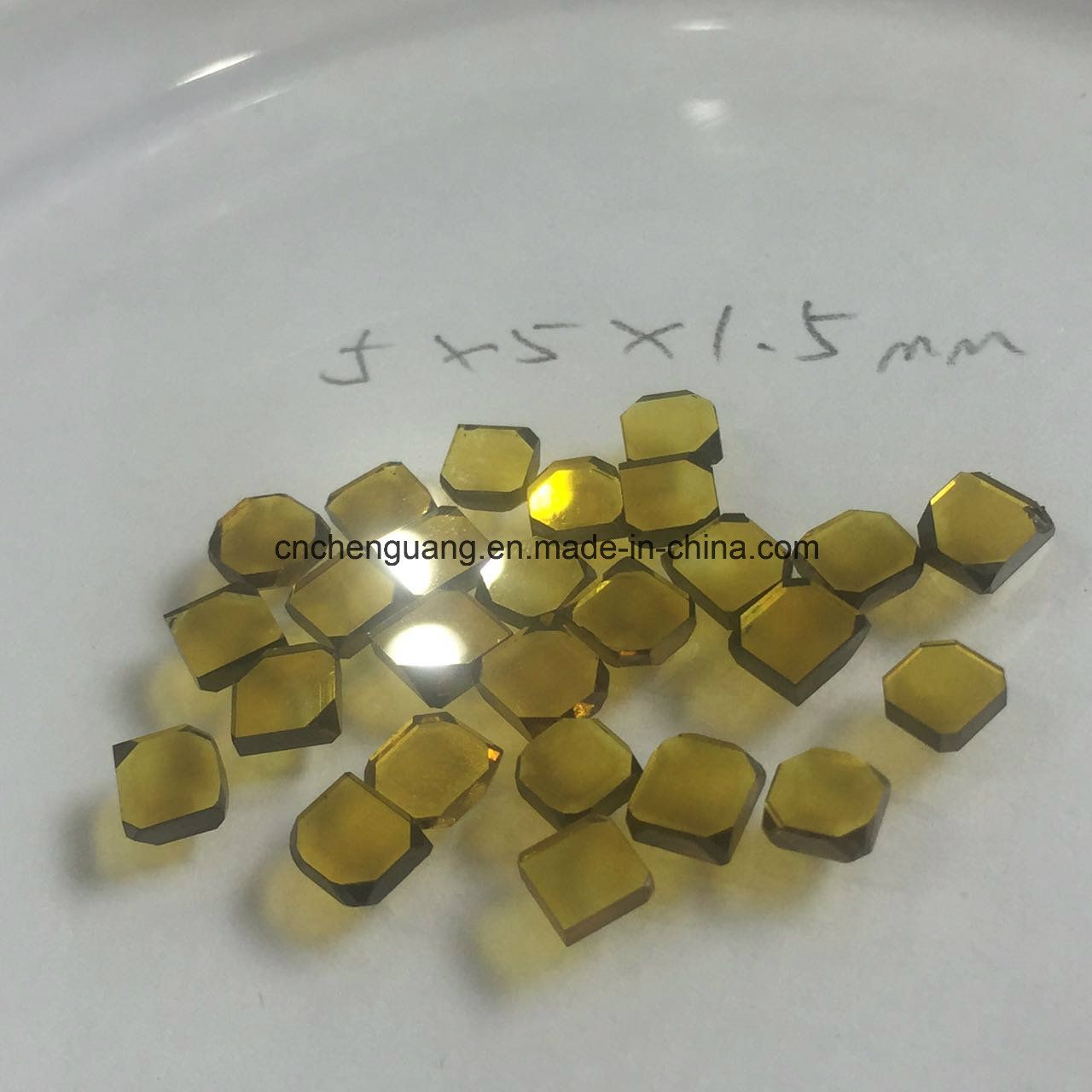

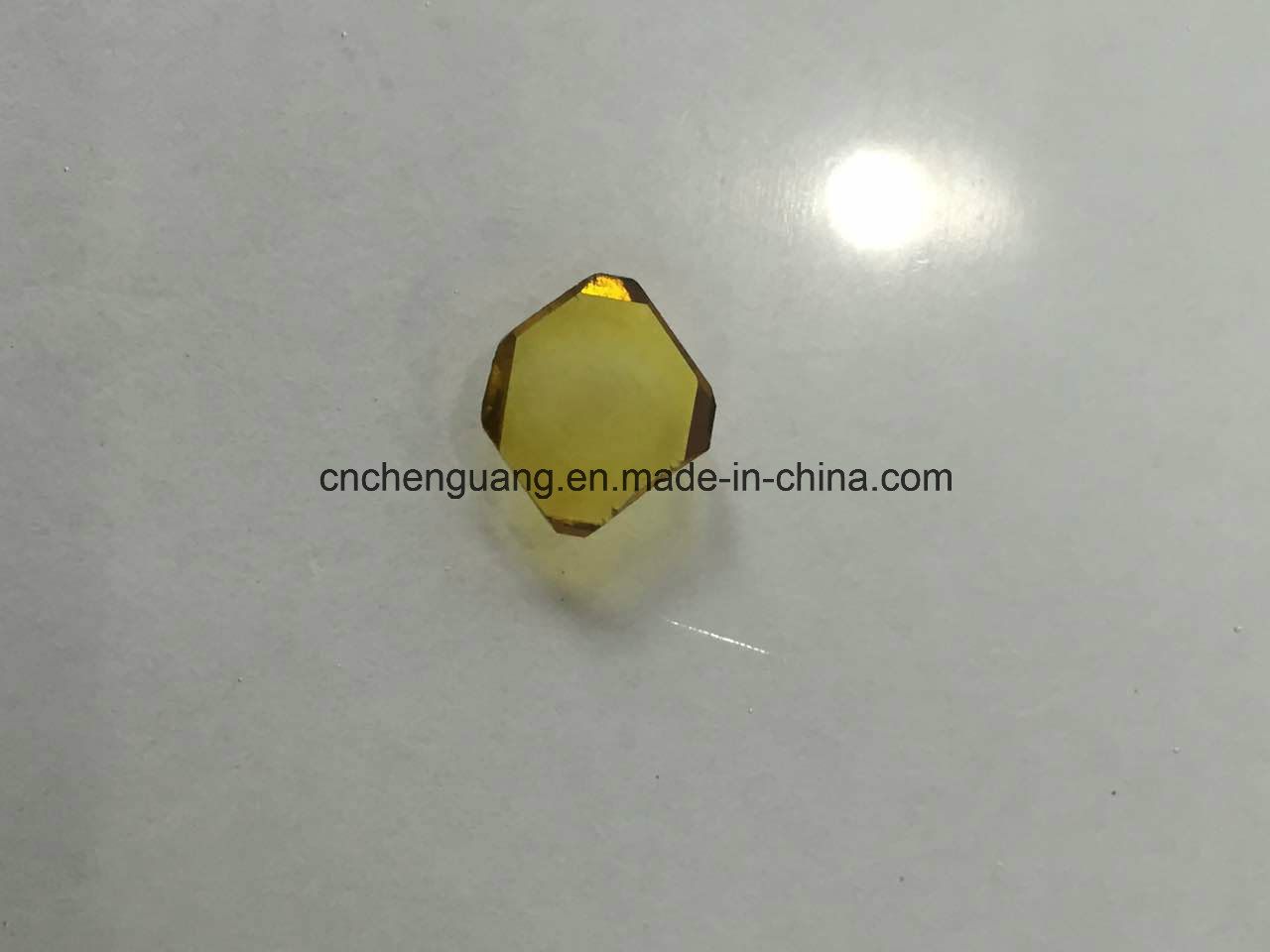

Single crystal synthetic diamond plates:

1. Large size(up to 12 * 12 * 3 mm

2. Scope of application: industrialgrade Electronic grade optical grade

3.Hardness and high mechanical stability

4. Scratch proof and wear resistance.

5.Wide spectral transparency UV to THz

6.High Strength and Great Thermal Stability

7.White Color (from brown to colorless)

8.Other quality index could reach the international standard

1,Size of diamond plates:

2.0x2.0 x1.1mm, 2.5x2.5x1.1mm, 3.0x3.0x1.1mm, 3.5x3.5x1.1mm,

4.0x4.0x1.1mm, 4.5x4.5x1.1mm, 5.0x5.0x1.1mm, 5.5x5.5x1.1mm etc

Thickness of diamond plates:from 1.1mm to 1.7mm

Shape of diamond plates: Round shape, Square shape, rectangle,hexangle shapes etc

Customized shape and size are available!

Application

a, cutting tools for non-ferrous and non-metallic materials.
b, dressers for wheel dressing

c, a variety of speciallity knives

d, burnishing tools

e, wear parts

f, wire drawing dies

g, seeds for cvd diamond

Advantages:

1, produced by HPHT or CVD
2, high quality as natural diamond, hardness is Moh's 10, can pass diamond test pen.
3, white or yellow color, good transparency, high strengh, low impurity
4, different shape(round, square, cube), size and thickness(1.1mm to 1.7mm) are available.

2. Features for mono-crystal synthetic diamonds for sale
1. Regular and irregular square shape
2. High hardness and stength, great thermal stability
3. High impact resistance
4. Good diaphaneity

How to choose synthetic diamonds?

All available sizes of industrial synthetic diamonds and their applications below.

1.Sythetic diamond grit :

16/18(D1180),18/20 (D1001),20/25 (D851),25/30 (D711),30/35 (D601),35/40 (D501)
40/45 (D425), 45/50 (D356), 50/60 (D301), 60/70 (D251),70/80 (D213), 80/100 (D181)
100/120 (D151),120/140 (D126),140/170 (D107),170/200 (D91),200/230 (D76)
230/270 (D64),270/325 (D54), 325/400 (D46)

2. Large size synthetic diamond for tools, jewellery

crystals : 1mm to 5mm

plates: 2.0 x 2.0 x 1.0mm, 2.5x2.5x1.0mm, 3.0x3.0x1.0mm, 3.5x3.5x1.0mm, 4.0x4.0x1.0mm, 4.5x4.5x1.0mm, 5.0x5.0x1.0mm, 5.5x5.5x1.0mm
Different shapes (Round shape, Square shape, rectangle,sexangle shapes ) are available.

3.RVD diamond crushing material:

100/120 230/270
120/140 270/325
140/170 325/400
170/200 400/500
200/230 500/600

4.Diamond micro powder:

For polishing: 0-0.5,0-1,0.5-1,0.5-1.5,0-2, 1-2,1-3,2-4,2.5-5,3-6
For Lapping ; 4-8, 5-10,6-12,8-16,10-20
For Grinding : 12-22, 20-30,22-36, 36-54

How to place order to us?

1.Please let me know what are the synthetic diamond used for? the most suitable size and grade diamond will recommend to you.

2.We provide small sample for your test.

3.If sample test succeed please inform us to arrange your needed goods.

4.Usually our synthetic diamond delivered by Express or air transport. If you have special requirement please let us know.

5.Delivery time usually 5-7 days after confirmation of deposit.

Application

Synthetic diamonds have a wide range of using methods, such like Saws , dressing tools, drilling tools, electroplated tools, scraping tools, metal bond abrasive wheels, stone/ceramics/glass processing tools, mechanical pressing industry etc

If you have any needs of diamond or diamond correlates please do feel free to contact me for more details of the product you are interested in.

Chenguang machinery & Electric Equipment Co. Ltd specialized in development, production, and marketing of ultra-hard materials.

We started to provide high quality synthetic diamond to domestic diamond tool manufacturers since1993. We utilize a wide range of advanced production equipment and test instrumentation in an environment using strict quality control procedures for all our products. As a diamond supplier; We provide a wide range of diamond products and solutions for many well-known Chinese enterprises. Among these enterprises are more than 20 well-known enterprises who have enjoyed at least 10 years with us; We are proud to mention that our products are routinely exported worldwide since 2010, the stable quality and professional service is well appraised by huge users.

Our main superhard matierial products include: Synthetic diamond, Diamond saw blade, Diamond Drill bit, welcome friends from home and abroad to cooperate with us and create a brilliant future.
