| Prod Model: |
2 7/8"~8" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
as Per Your Request |
| Use: |
Rock Drilling |
Product Description
1.API 3 Wings Alloy Steel Drag Bit/Stepped Drag Bit/Tungsten Carbide Drag Bit
1-API or ISO 9001:2008
2-Delivery Date: In 7 work days
3-Delivery term: By air or by sea
4-MOQ: 1 units
5-Brand new
6-Size: 3"-17"
7-Packing: Wooden Case
2.Product Description:

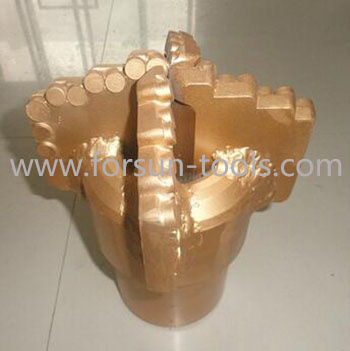

Step Drag Bits also named blade bits, with a Tungsten Carbide inserts on the blades.
They are usually designed for use in soft formations such as sand, clay, or some soft rock.
Their uses include drilling water wells, mining, geothermal, environmental and exploration drilling.
Whenever possible, they should be used to drill pilot holes, for they produce cuttings are easiest to log.
Normally drag bits are 3 wings, but we can make 4 or 5 wings following your drawings or samples.
Many special designs are available upon your request.
Type: Chevron and Step type
Wings: three
Size: 2 7/8" to 24"
Thread: 2 3/8, 3 1/2, 4 1/2, 5 1/2, 6 5/8 API Reg. Pin
Drag bit are manufactured from forged high quality alloy steel and premium tungsten carbide insert, plus state of art welding technology and multiple precision heat-treatment to provide highest penetration rate and longest lifespan at roughest condition.
Product Description
Good performance
4.1/2", 4.3/4", 5.1/8", 5.5/8", 5.7/8", 6.1/4", 6.3/4", 6.5/8" 7.3/8" 9.7/8", 11.1/2" etc. Drag bits are avaiable.
Our current product list as below:
1. Impregnated diamond core bits
2. Surface set Diamond Bits(coring bits and non-coring bits)
3. Casing(Rod) shoes/Casing bits
4. Reaming shells
5. PDC bits (coring or non-coring)
6. Core lifters, core lifter cases
7. Diamond circle wrench
8. Core barrel and accessories, BQ, NQ, HQ and PQ(Inner & Outer Tube, Head assembly, Locking
Coupling, Adaptor Coupling, Inner Tube Stabilizer Ring, Landing Ring, Landing Shoulder etc)
9. NQ&HQ overshot.
10. BQ, NQ, HQ, PQ, NT, HT, PT drill rods and BW, NW, HW, PW casing.
11. Drag bits and tricone bits.
* Above bits and reaming shells conform to Metric, DCDMA, CDDA standards.
* We can manufacture all kinds of bits and shells according to customer's special requirement.
Any requirement please contact us, we'll do the best service for you. Hope we can establish a good business relationship.
FORSUN is a manufacturer of Diamond Core Bits, Reaming Shells, Core Barrels, Drill Rods, Casings, other Drilling Accessories and Drilling Rigs which are used mainly in mineral exploration, site investigation, water well construction. FORSUN products are produced according to ISO, DCDMA, CDDA, Metric, and Chinese standards. So far FORSUN products have been exported to more than 50 countries. With qualified and professional staff as well as advanced production technologies and equipment, FORSUN is capable to offer customers both the standard and customized products.
Forsun is a leading manufacturer and supplier of drilling equipment, specializing in producing Diamond Core Bits (Impregnated and Surface Set, E. P. ), Reaming Shells, Core Barrels, Drill Rods, Water Swivels, Hoisting Plugs, SPT complete, and other drilling tools and accessories.
Sizes Available:
Diamond core drill bits and diamond non-core drill bits
A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
And all other standard CDDA, DCAMA, Crealius, and ISO sizes.
