| Prod Model: |
DSB-3 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East |
| Main Diameter Size: |
300-800mm |
| Core Thickness: |
2.0-4.5mm |
| Segment Height: |
15/20mm |
| Cutting Material: |
Granite |
| OEM&ODM: |
Yes |
| Customized: |
Customized |
| Brand: |
Jdk |
| Delivery Time: |
7-10days |
| Export Area: |
Global |
Product Description

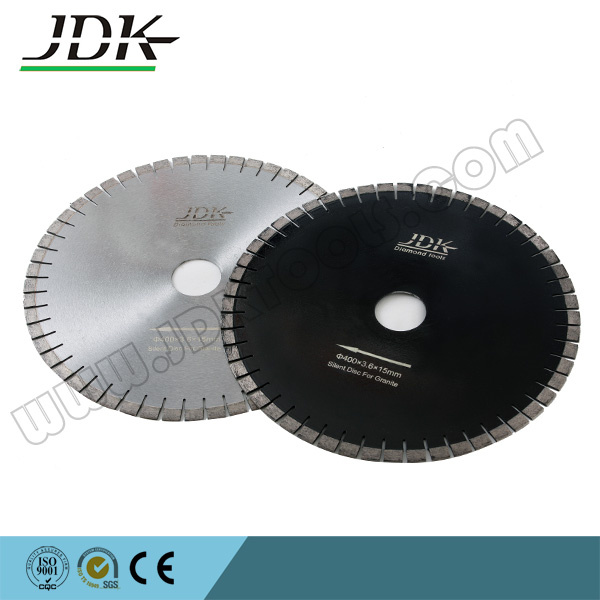

Manufacture T Segment Grantite Blade for Granite CNC Copy Line Cutting Machine and Edge Cutting Machine
Description and specification:
| 1.Unique 'T" design of segment side face allows ideal debris removal and better cooling. | |
| 2.Comparing to the long segment (L-40),this short segment (L20) design makes better sharpness and cutting efficiency. | |
| 3.This special design will not allow easy edge collapse,break,tapered slab etc. | |
| Product Name | Specification | Core Thickness | Segment Dimension | Segment Number | Application | Note |
| JDK | Φ300 | 2.2/2.0 | 20x3.6/3.3/3.0x15(20) | 38 | Granite | Silent or Non Silent |
| Φ350 | 2.4/2.2 | 20x3.6/3.3/3.0x15(20) | 46 |
| Φ400 | 2.8/2.4 | 20x4.0/3.7/3.4x15(20) | 52 |
| Φ450 | 2.8/2.6 | 20x4.3/4.0/3.7x15(20) | 60 |
| Φ500 | 3.2/2.8 | 20x4.3/4.0/3.7x15(20) | 66 |
| Φ550 | 3.2/3.0 | 20x5.0/4.7/4.4x15(20) | 72 |
| Φ600 | 3.6/3.2 | 20x5.0/4.7/4.4x15(20) | 80 |
| Φ650 | 4.0/3.6 | 20x5.0/4.7/4.4x15(20) | 84 |
| Φ700 | 4.0/3.8 | 20x5.4/5.1/4.8x15(20) | 90 |
| Φ800 | 4.5/4.2 | 20x6.0/5.7/5.4x15(20) | 100 |
Our Feature:
Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Our advantage:
1. Manufacturer with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
Payment:
T/T, Western Union, L/C, Cash
Delivery time:
For samples, shipped within 3 days after receiving the deposit,
For regular order, around 3-7 days, depends on the quantity of your order.
Packaging:
The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.
Shipment:
<45kg, express service is recommonded
>45kg, air or sea is a better choice 45kgs
