T2-86 Surface Set Diamond Core Drill Bit
| Price: |
US $ 200-300/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
T2-86 |
| Color: |
as Per Request |
Product Description
Forsun Surface Set Diamond Core Bits(T2-86)
Surface Set Diamond Core Bits are the drilling bits which a single layer of industrial natural diamonds is mounted on the matrix as the working surface for the required purpose. Therefore, compared to the Impregnated Diamond Core Bits, the matrix is extremely hard for holding the diamonds in postion throughtout the bit life.
Forsun manufactuered Surface Set Diamond Core Bits provide the highest quality in China. They are highly recommended for the soft to medium hard, abrasive, uncosoildated formations, and for those projects which the timing is on the top of the priority list. Some special designed Forsun Suface Set bits are also recommended for hard formations with a lower rotational speed and bit load.
The Surface Set product line includes various diamond grades, stone sizes and matrix profiles for different solutions(DCDMA, CDDA, Craelius, ISO and Etc.). Forsun are also able to provide the service to design new products for some special condition.

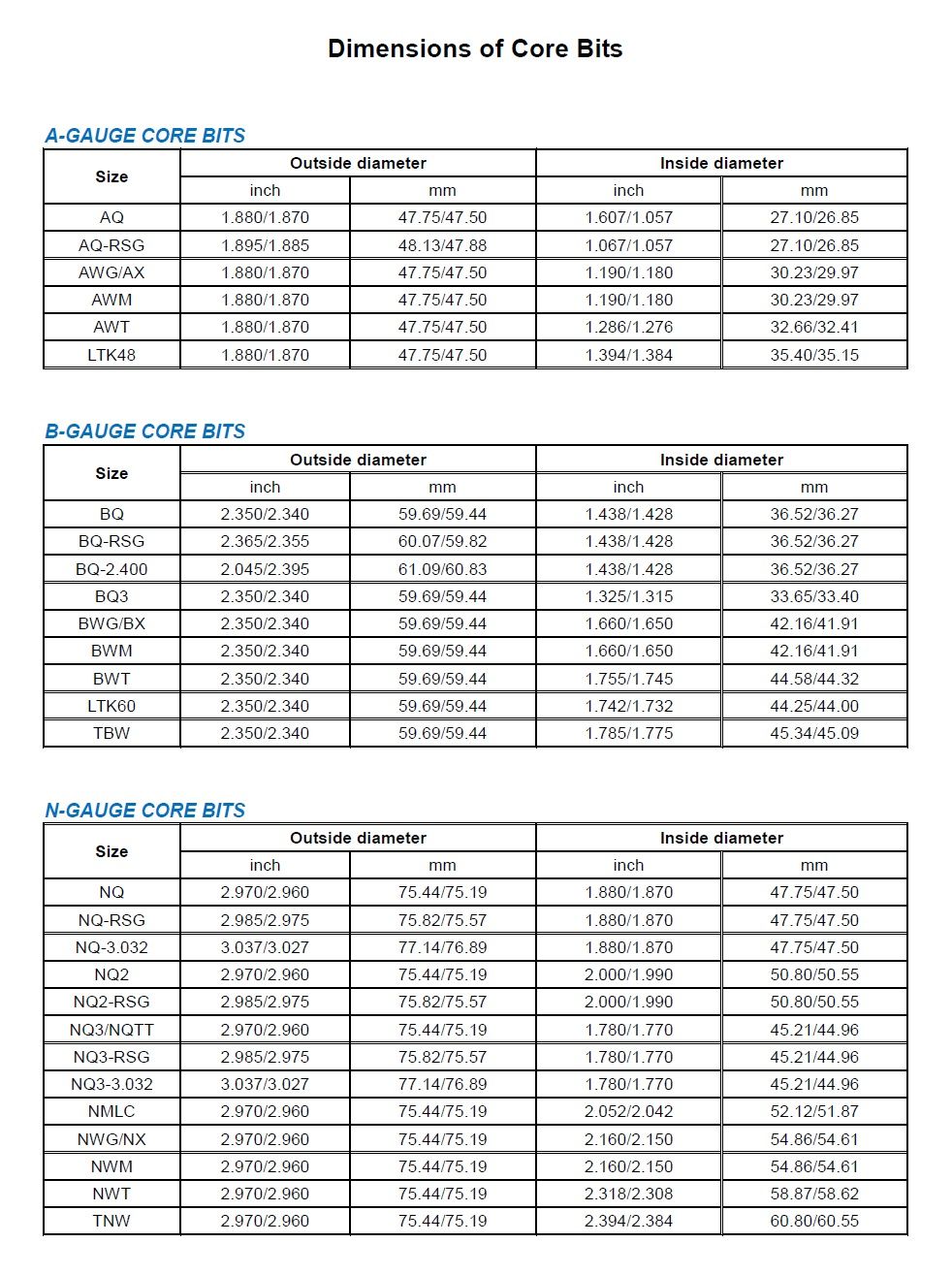

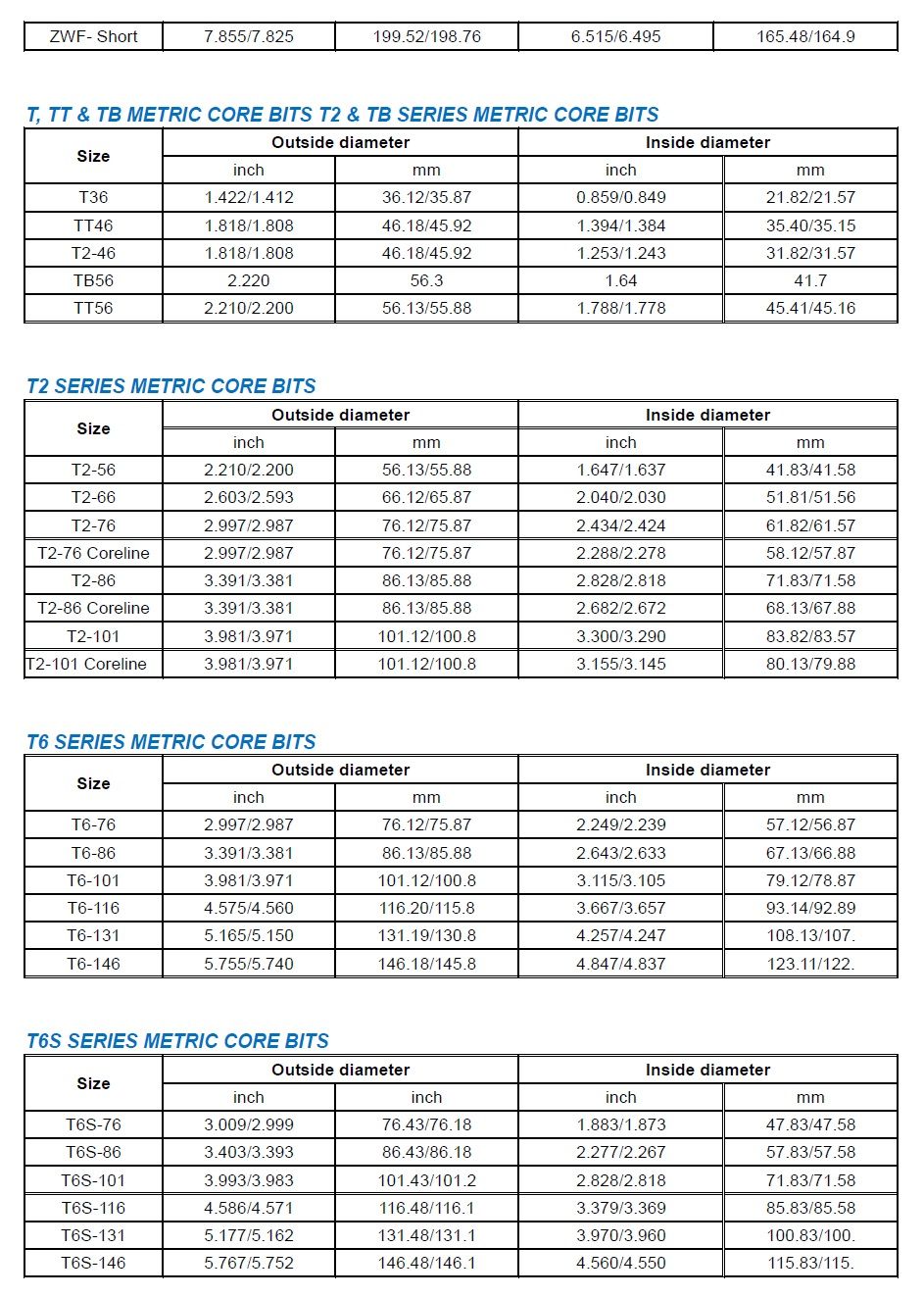

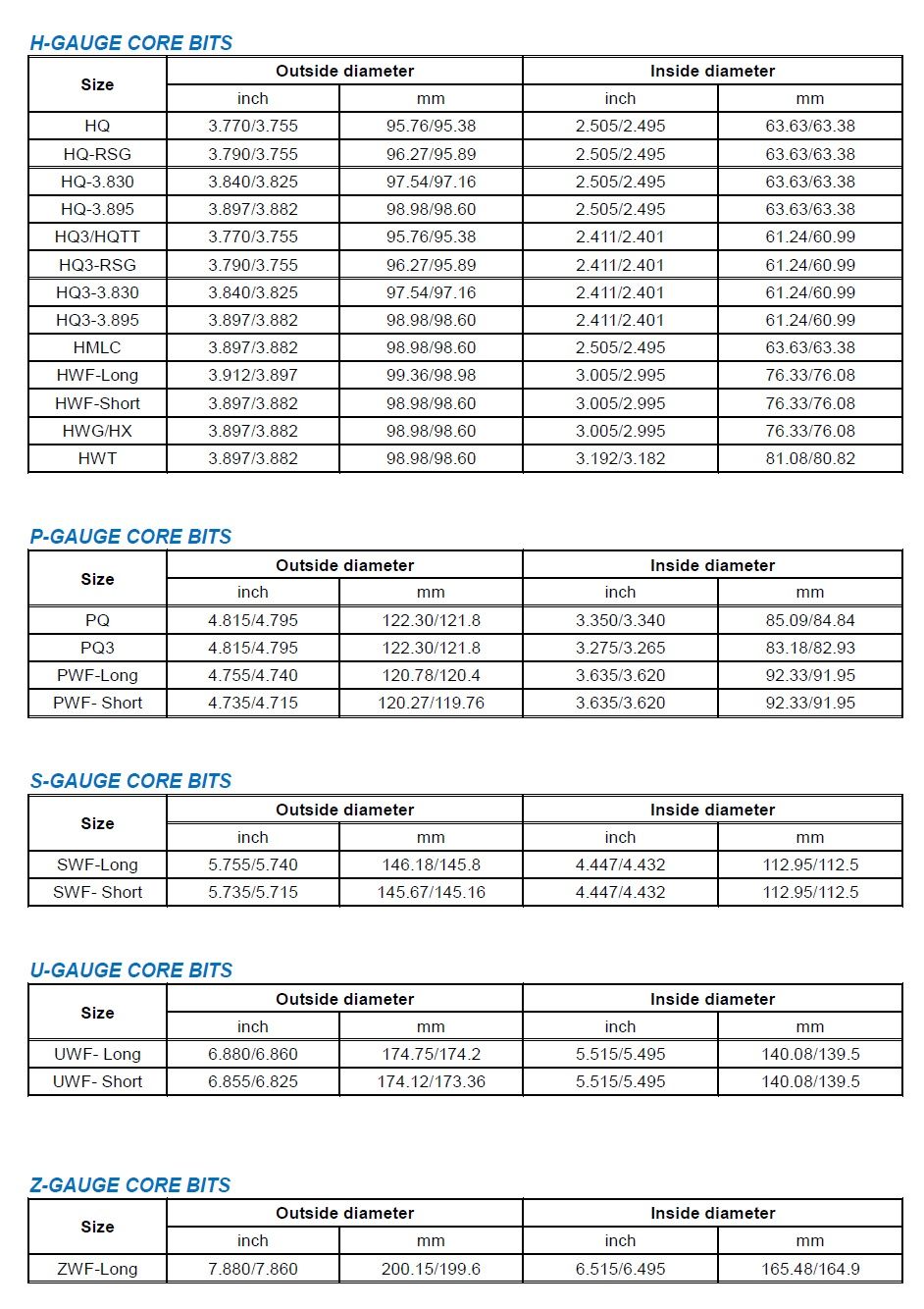

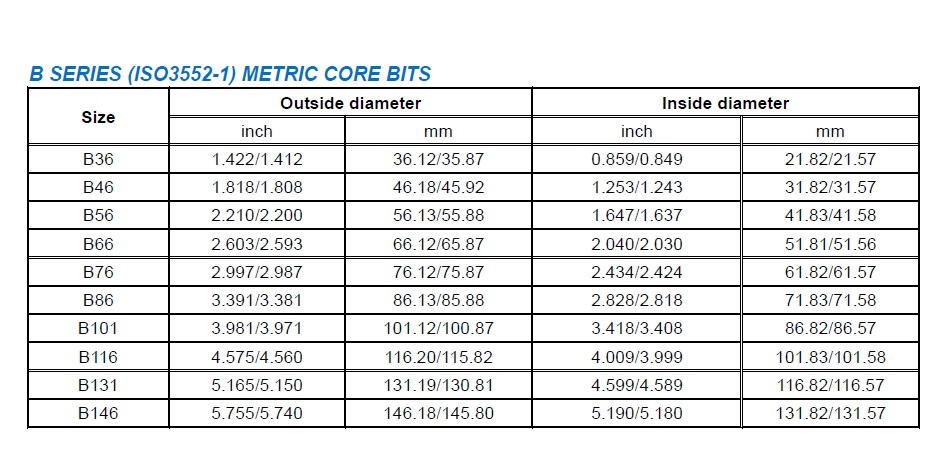

All available dimensions are as follows:
FORSUN is a manufacturer of Diamond Core Bits, Reaming Shells, Core Barrels, Drill Rods, Casings, other Drilling Accessories and Drilling Rigs which are used mainly in mineral exploration, site investigation, water well construction. FORSUN products are produced according to ISO, DCDMA, CDDA, Metric, and Chinese standards. So far FORSUN products have been exported to more than 50 countries. With qualified and professional staff as well as advanced production technologies and equipment, FORSUN is capable to offer customers both the standard and customized products.
Forsun is a leading manufacturer and supplier of drilling equipment, specializing in producing Diamond Core Bits (Impregnated and Surface Set, E. P. ), Reaming Shells, Core Barrels, Drill Rods, Water Swivels, Hoisting Plugs, SPT complete, and other drilling tools and accessories.
Sizes Available:
Diamond core drill bits and diamond non-core drill bits
A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
And all other standard CDDA, DCAMA, Crealius, and ISO sizes.
