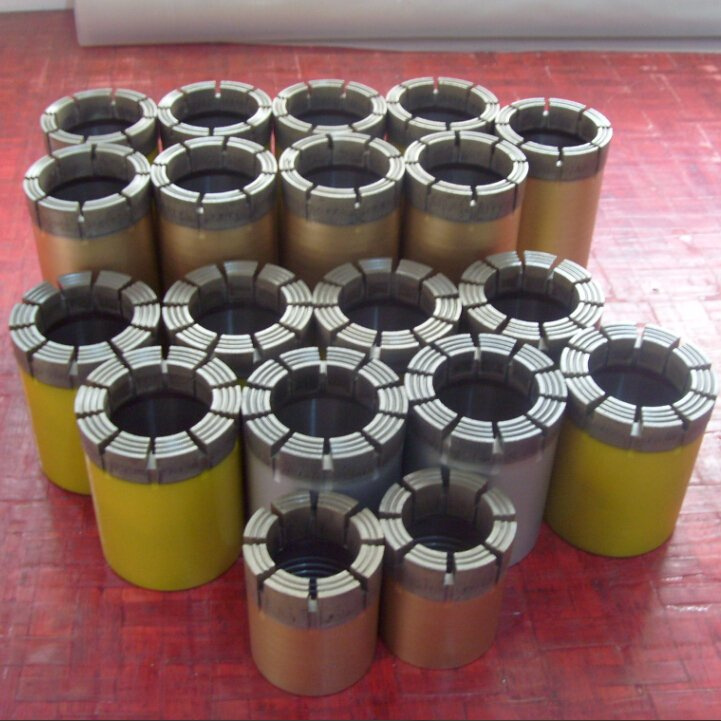

T2 Series Diamond Core Drill Bits with Diameter 101, 86, 76, 66, 56mm
| Price: |
US $ 60-200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
101, 86, 76, 66, 56, 46 mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Core Drilling |
Product Description
T2 Series Diamond Core Drill Bits with diameter 101, 86, 76, 66, 56mm Depending on the range of application as well as the cutting media on the core bits, Forsun makes six types of core bits:
---Impregnated Diamond Type
---Surface set Diamond Type
---Tungsten Carbide Type
---PDC Type
---PCD Type
---Electroplated Diamond Type
Generally, an overall Drilling System consist of core bits, reaming shells, core barrels, drill rods and drilling rig.
Core Bits are used for drilling materials like the rock, concrete, limestone, granite, marble, clay, basalt, schist, quartz etc..
| Sizes Available |
| Wireline series | Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76 |
| T2 / T series | T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86 |
| TT series | TT 46, TT 56 |
| T6 series | T6 76, T6 86, T6 101, T6 116, T6 131, T6 146 |
| T6S series | T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146 |
| B series | B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| MLC series | NMLC, HMLC, 3C, 4C, 6C, 8C |
| LTK series | LTK48, LTK60 |
| WF series | HWF, PWF, SWF, UWF, ZWF |
| WT series | RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube) |
| WG series | EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube) |
| WM series | EWM, AWM, BWM, NWM, HWM |
| Other sizes | AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H, SK6L-146 |
| Chinese standard | 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm |
| Russian standard | 59, 76, 93, 112, 132, 152 mm |
| Special sizes can also be made as per request. |
FORSUN is a manufacturer of Diamond Core Bits, Reaming Shells, Core Barrels, Drill Rods, Casings, other Drilling Accessories and Drilling Rigs which are used mainly in mineral exploration, site investigation, water well construction. FORSUN products are produced according to ISO, DCDMA, CDDA, Metric, and Chinese standards. So far FORSUN products have been exported to more than 50 countries. With qualified and professional staff as well as advanced production technologies and equipment, FORSUN is capable to offer customers both the standard and customized products.
Forsun is a leading manufacturer and supplier of drilling equipment, specializing in producing Diamond Core Bits (Impregnated and Surface Set, E. P. ), Reaming Shells, Core Barrels, Drill Rods, Water Swivels, Hoisting Plugs, SPT complete, and other drilling tools and accessories.
Sizes Available:
Diamond core drill bits and diamond non-core drill bits
A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
And all other standard CDDA, DCAMA, Crealius, and ISO sizes.
