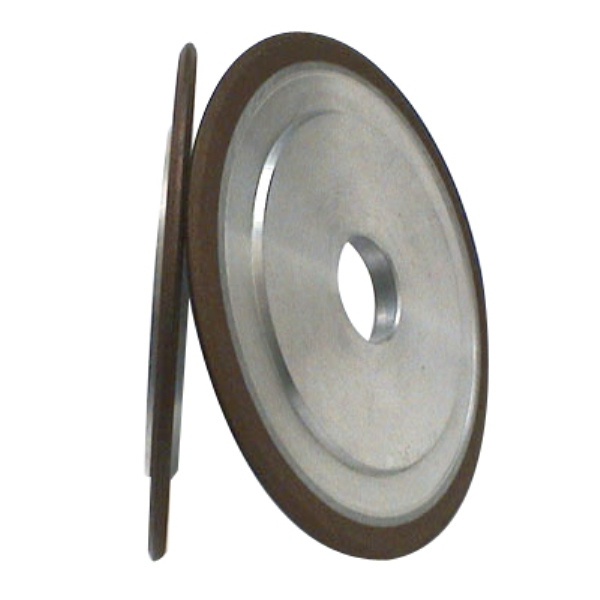

Tapered Diamond Resin Bond Grinding Wheel (JL-TRGW)

Prod Model:	JL-TRGW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Taper Shape
Diamond Grit:	80#-400#
Working Part Thickness:	3.5mm
Bond:	Resin
Material:	Diamond
Abrasive:	Normal Abrasive
Shapes:	Edge Shape
Types:	Surface Grinding Wheel
Working Style:	Tool Grinding

Product Description

Diamond Resin Tapered Grinding Wheel with Double Edge(JL-TRGW)

Diamond resin bond wheels mainly applied for straight edging and double edging glass machine. Used for high presion and fine glass polishing.

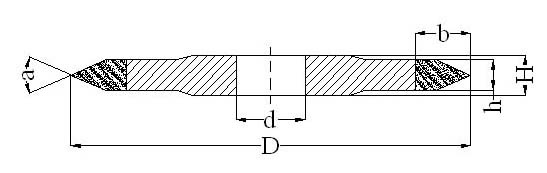

Regular dimensions(mm):
Diameter: 100, 130, 150, 175
Width of the coated: 10, 15
Height of the coated: 10
Inner hole: 13, 22, 50
Grit: 180, 240, 320

1.Diamond resin grinding wheel has a good polishing effect, grinding wheel sharp, easy to plug;
2.high grinding efficiency while consuming relatively slow grinding wheel;
3. self-sharpening, grinding, heat a small, easy to plug, reducing the grinding burn occurs when the phenomenon of work;
4. wheel has a certain degree of flexibility will help to improve the surface roughness, mainly used for grinding, semi-fine grinding, knife grinding, polishing and other processes;
5.diamond resin grinding is low temperature curing, short production cycle, equipment and supply process is relatively simple; due resin liquid, easy to shape complex plane of the wheel.
6.Application:
Diamond resin grinding wheel mainly uses in grinding the alloy, the nonmetallic material, to cut hard and the crisp hard alloy, the non-metallic mineral and so on. Like hard alloy, ceramics, agate, optical glass, semiconducting material and wear-resisting cast iron, stone material and so on.
7.Grit sizes: Mesh 80/100#, 100/120#, 120/140#, 140/170#, 170/200#, 200/230#, 230/270#, 270/325#, 325/400#


Description	outer diameter(mm)	thickness	workingpart wideness(mm)	working part thickness	angle(ºC)
Single side parallel wheel	70,100,125,150,180,200	4,5,6,8,10		3.5
cup wheel1	80	27	5,10,15,20	3
	100	40			60
	125	40,45
	150		5,10,15,20,25
parallel angle wheel	80	30	3-10	3,5,8,10	10,15,20
	100
	125
	150
cup wheel2	50	38	5	2.5	60
	75			10
	100
	125
	150
