| Prod Model: |
Round Hole Bending Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coiled Metal Thickness: |
0.2mm-1mm |
| Coiled Metal Length: |
20m |
| Coiled Metal Hole Size: |
1.5mm-10mm |
| Sheet Metal Thickness: |
0.2mm-20mm |
| Sheet Metal Overall Size: |
1.5mx5m |
| Sheet Metal Hole Size: |
0.5mm-200mm |

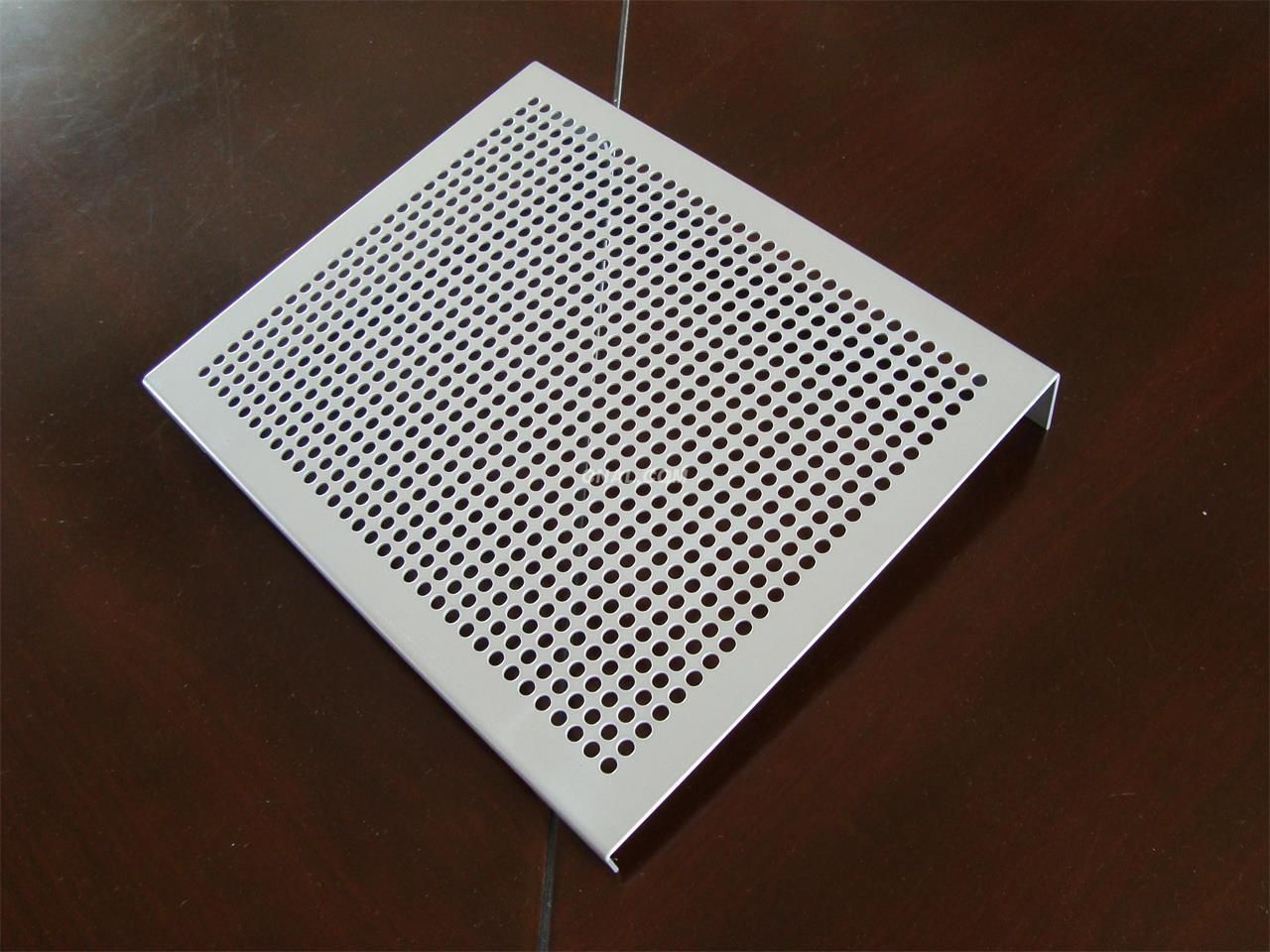

Product Description
Available Material Types: Low carbon steel, galvanized steel, stainless steel, aluminium and brass/copper/phosphorous bronze plate, etc.
Production ProcessStep 1 Mold Design
The perforating process starts with the accuracy of mold design. We have every confidence in the top quality mold that is principally responsible for top quality perforations. Therefore in recent years, we have invested a lot of money in the mold design, and now we have seen our significantly increased capacity to construct molds. Tec-Sieve has owned several hundred sets of molds, so ordinary holes patterns will not necessitate the remaking of new molds, and these molds are available directly from our storeroom of molds.
Step 2 Punching
We have the state-of-the-art CNC punching equipment, which are of 16MT, 25MT, 40MT and 80MT types. The daily output can reach up to 1000 square meters. Based upon different material types, the plate thickness usually ranges from 0.1mm to 10mm.
Step 3 Leveling
We have 2.7 meters wide leveling machines, which enable perforated sheets to be as smooth as the original plates.
Step 4 Cutting
We have advanced CNC plate shearing machines, which can cut perforated sheets to any accurate sizes you desire.
Step 5 Shaping
We have advanced bending machines, which can bend perforated sheets to various shapes to meet your exact requirements.
Step 6 Packing
Many years of experience in the exportation of perforated metal has convinced Tec-Sieve that good quality products have to be companied by good quality packing, and in this way our clients can receive best quality products in the end!

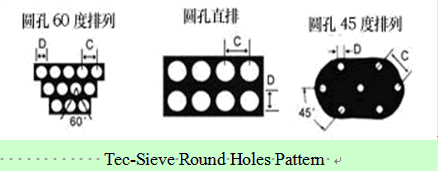

Glossary of Perforated Metal (Take round-hole perforated sheet as an example)
Part V
TolerancesThere are tolerances on quantity, shearing, circle shearing, flatness, thickness and squareness for perforated products. If you do not specify a specific tolerance, the standard tolerance applies. Tolerances can be specified on the perforated round holes pattern quote form.Holes SizeHoles size is the diameter of the perforation. Tec-Sieve carries a wide range of round holes sizes (from 0.020 to 1 inch) and can special order any holes size required as long as it meets minimum holes size requirements.
(To be continued)
