Teflon PTFE PFA FEP Lined Ball Valve for Chemical Industry
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
Q41 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body Material: |
Wcb |
| Seat Material: |
PTFE |
| Ball: |
Wcb+PFA |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Material: |
Stainless Steel |
| Application: |
Water Industrial Usage |
Product Description
Product Description
DOXI VALVE

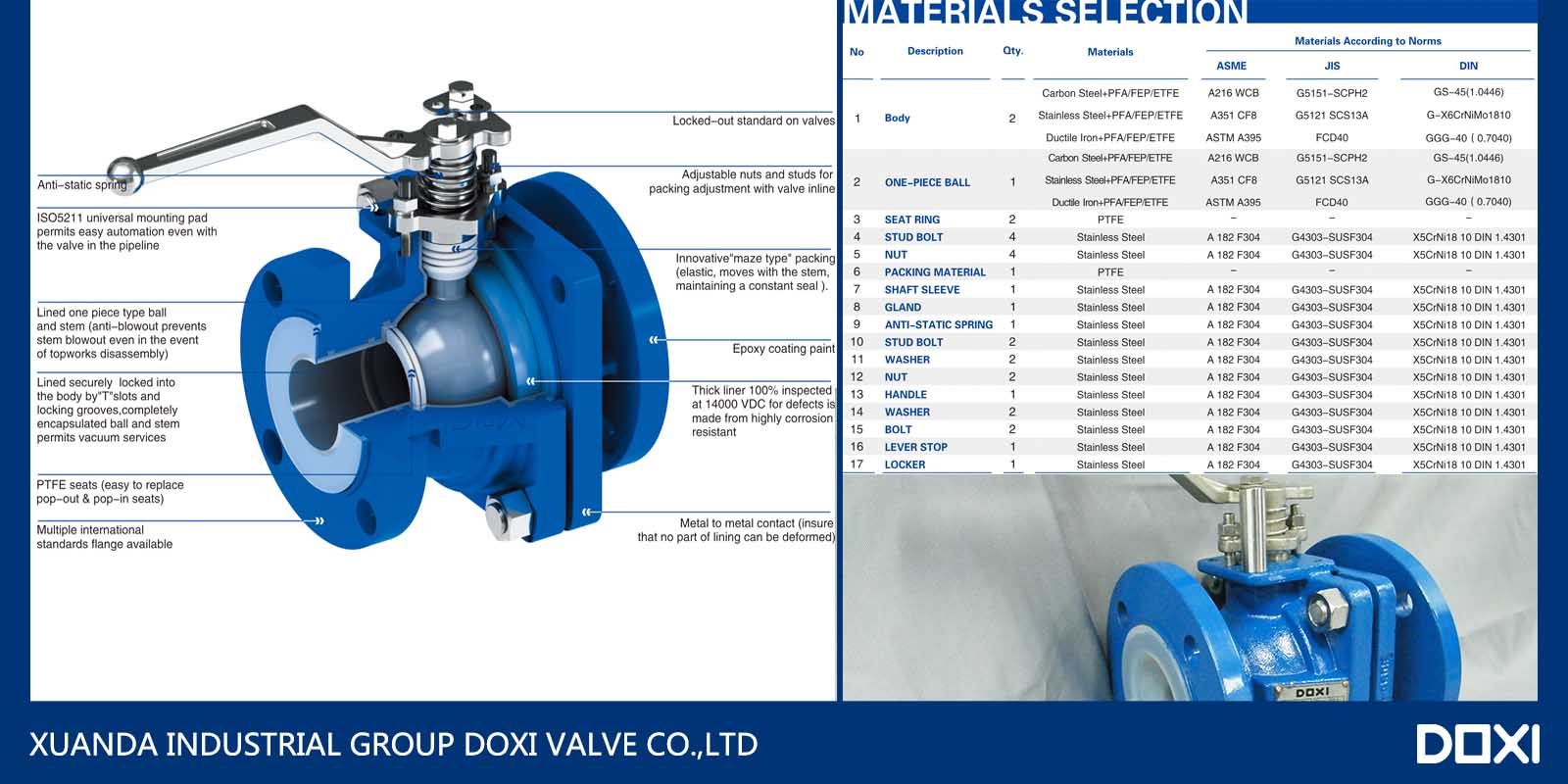

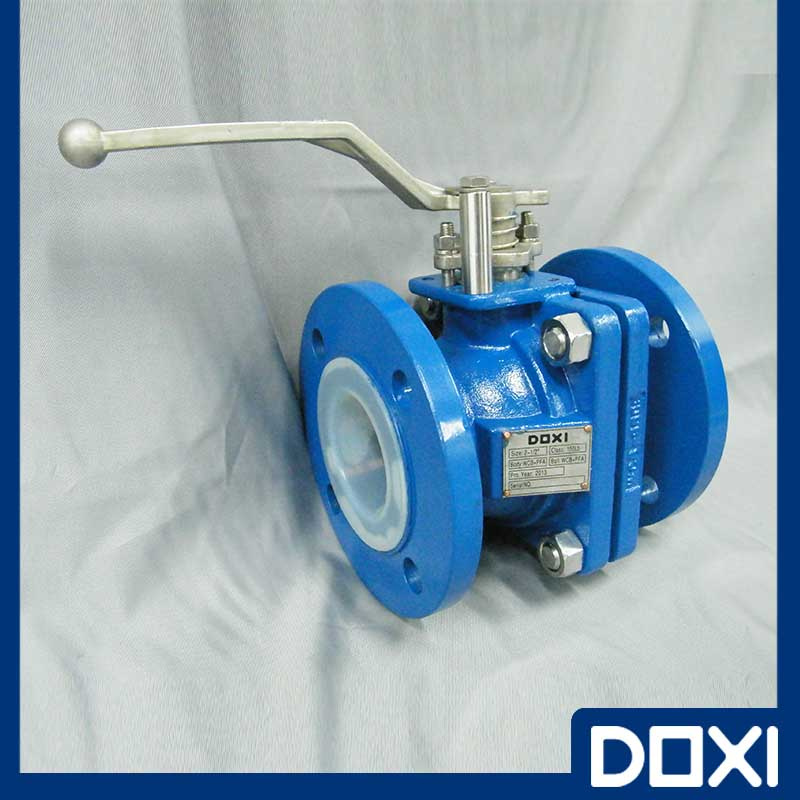

Lined Ball Valve
The DOXI ® Ball Valves are ideally suited for corrosive applications, requiring reliable performance, tight shutoff, and constant torque.
The valves successfully handle a multitude of corrosive applications in industries such as chemical, petrochemical, pharmaceutical, pulp and paper, foundries and mining like sulphuric acid, etc.
| BALL VALVE |
|
|
|
|
|
|
|
|
|
|
|
|
|
| DN | NPS | Dimensions in mm |
| Weight | CV | Torque |
| ASME B16.5 | JIS B2212 10K | DIN2532 PN10 | ISO 5211 |
| [mm] | [in] | L | H | W | L | H | W | L | H | W | [kg] | [N @ m] |
| 15 | 0.5 | 108 | 126 | 160 | 108 | 126 | 160 | 108 | 126 | 160 | F05 | 3.5 | 20 | 9 |
| 20 | 0.75 | 117 | 126 | 160 | 117 | 126 | 160 | 117 | 126 | 160 | F05 | 4.6 | 20 | 9 |
| 25 | 1 | 127 | 131 | 160 | 127 | 131 | 160 | 127 | 131 | 160 | F05 | 5 | 55 | 9 |
| 32 | 1.25 | 140 | 131 | 160 | 140 | 131 | 160 | 140 | 131 | 160 | F05 | 5.5 |
| 20 |
| 40 | 1.5 | 165 | 160 | 200 | 165 | 160 | 200 | 165 | 160 | 200 | F07 | 11 | 210 | 20 |
| 50 | 2 | 178 | 170 | 200 | 178 | 170 | 200 | 178 | 170 | 200 | F07 | 14 | 310 | 26 |
| 65 | 2.5 | 190 | 170 | 200 | 190 | 170 | 200 | 190 | 170 | 200 | F07 | 19 | 310 | 26 |
| 80 | 3 | 203 | 230 | 260 | 203 | 230 | 260 | 203 | 230 | 260 | F07 | 28.8 | 684 | 65 |
| 100 | 4 | 229 | 265 | 313 | 229 | 265 | 313 | 229 | 265 | 313 | F10 | 44.8 | 1546 | 91 |
| 125 | 5 | 229 | 265 | 313 | 229 | 265 | 313 | 229 | 265 | 313 | F10 | 51 | 1546 | 91 |
| 150 | 6 | 267 | 347 | 535 | 267 | 347 | 535 | 267 | 347 | 535 | F12 | 96.2 | 3262 | 143 |
| 200 | 8 | 292 |
|
|
|
|
|
|
|
| F14 | 118 | 4565 | 364 |
| 250 | 10 | 330 |
|
|
|
|
|
|
|
| F14 | 330 | 10250 | 455 |
| 300 | 12 | 610 |
|
|
|
|
|
|
|
| F16 | 460 | 17500 | 494 |

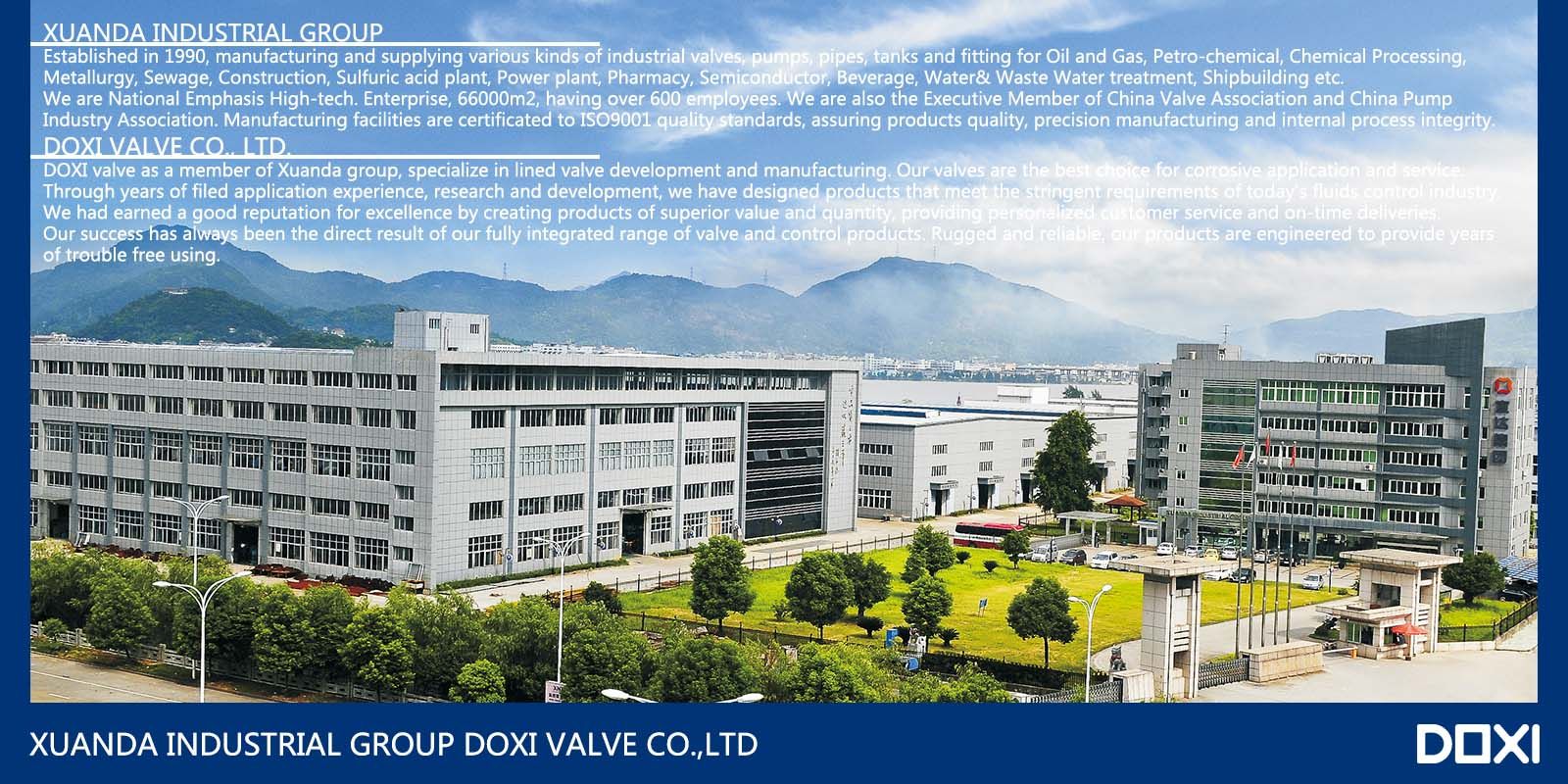

XUANDA INDUSTRIAL GROUP
Established in 1990, manufacturing and supplying various kinds of industrial valves, pumps, pipes, tanks and fitting for Oil and Gas, Petro-chemical, Chemical Processing, Metallurgy, Sewage, Construction, Sulfuric acid plant, Power plant, Pharmacy, Semiconductor, Beverage, Water& Waste Water treatment, Shipbuilding etc.
We are National Emphasis High-tech. Enterprise, 66000m2, having over 600 employees. We are also the Executive Member of China Valve Association and China Pump Industry Association. Manufacturing facilities are certificated to ISO9001 quality standards, assuring products quality, precision manufacturing and internal process integrity.
DOXI VALVE Co., Ltd.
DOXI valve as a Member of Xuanda group, specialize in lined valve development and manufacturing. Our valves are the best choice for corrosive application and service.
Through years of filed application experience, research and development, we have designed products that meet the stringent requirements of today' S fluids control industry. We had earned a Good reputation for excellence by creating products of superior value and quantity, providing personalized customer service and on-time deliveries. Our success has always been the direct result of our fully integrated range of valve and control products. Rugged and reliable, our products are engineered to provide years of trouble free using.
