| Price: | US $ 4800-5000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | JM |
|---|---|
| Rated Speed: | 25 M/Min |
| Color: | as You Wish |
| Power Source: | 380V/50Hz |
| Electromotor Type: | Yzr |
| Wire Rope Dia: | 7.7~30mm |
| Warranty: | 12 Months |
| Type: | Construction Winch |
| Driven Type: | AC |
| Carrying Capacity: | Weight Level |
| Tonnage: | 30T |
| Running Mode: | Stationary |
| Feature: | Antiseptic |
| Standard: | Custom-Made |
| Certification: | CCC |

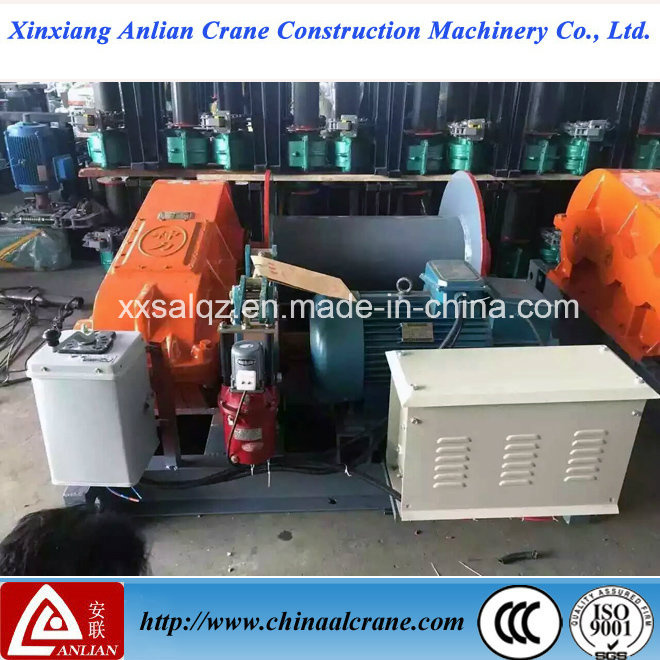

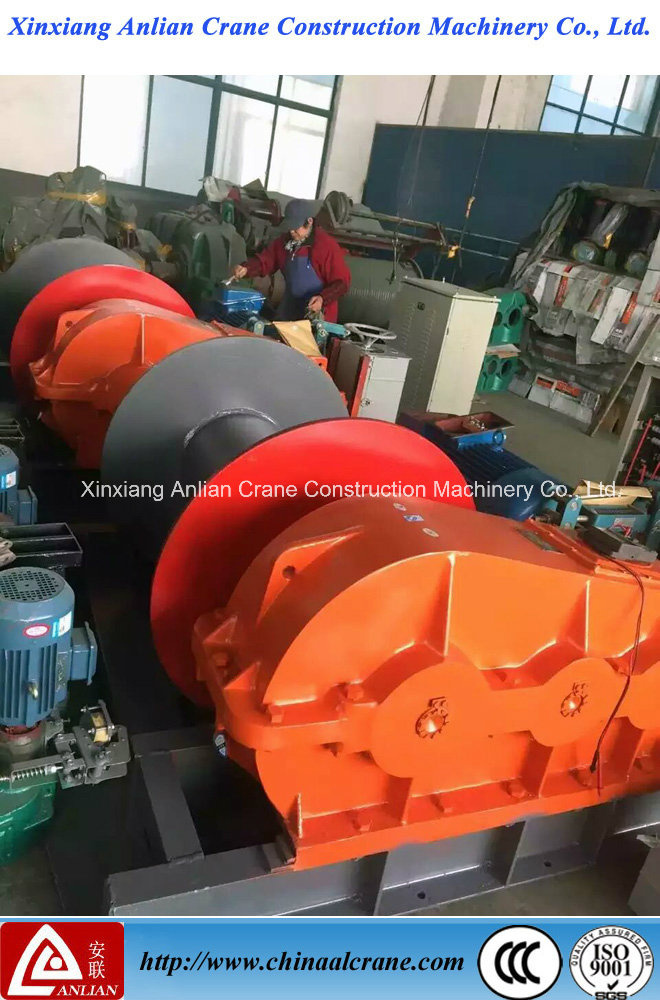

JK electric hoisting and lowering winch is mainly used for hoisting heavy cargos in construction site, factory, mine, port, JK winch is suitable for free fall punching & piling for bridge, dock, construction works and so on.
JK electric hoisting and lowering winch we sell is in compliance with the national standard. The design of hoisting and lowering winch is reasonable, The materials are of good quality, The structure is advanced. The appearance of hoisting and lowering winch is beautiful and the size is compact, the weight is light, the hand pull force is small and parts have high strength, big tenacity, and all these make hoisting and lowering winch safe and durable. And mine winches are popular at home and abroad.
JM is the low speed winch but with more power and lifting force.
Features of power winch
1. High versatility
2.Compact structure
3.Smallvolume, lightweight, convenience in using and transferring
4.Driving stably
5.Very light noise
6.With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.
7. Adjustable lifting or pulling speed for different usage environment.
8. This kind of electric wire rope winch can be applied to the lifting or pulling operating in construction water conservancy, forestry, mining and quay places etc.
Technical parameters
| Model | Rated load (KN) | Rated Speed (m/min) | Rope Capacity(m) | Rope Dia(mm) | Motor | Power (kw) | Dimension(mm) | Weight(KG) |
| JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620*701*417 | 270 |
| JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945*996*570 | 550 |
| JM5 | 50 | 10 | 250 | 21.5 | YZR160L-6 | 11 | 1325*1335*805 | 1500 |
| JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090*1475*956 | 2600 |
| JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090*1475*956 | 3000 |
| JM16 | 320 | 10 | 500 | 37 | YZR250M-8 | 37 | 3750*2400*1850 | 8800 |
| JM20 | 500 | 10 | 500 | 43 | YZR280S-8 | 45 | 3950*2560*1950 | 9900 |
| JM25 | 500 | 9 | 700 | 21.5 | YZR280M-8 | 55 | 4350*2800*2030 | 13500 |
| JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930*3050*2250 | 19500 |
| JM65 | 500 | 11 | 1000 | 64 | LA8315-8AB | 160 | 5900*4680*3200 | 46000 |
Company Information
Xinxiang Anlian Crane Construction Machinery Co., Ltd., the main business: Electric hoist, hoist, crane motors, conical motors, vibration motors, concrete vibrators and hoist accessories, which widely used in various fields of materials handling, such as machinery manufacturing, iron and steel metallurgy, mine mining, water conservancy and hydropower, road and rail, port logistics, shipbuilding and so on.
Founded in 1993, after years of development, as a whole of development, design, manufacture, sale, installation and service, it has become the equipment manufacturing enterprises. Currently has a registered capital of 10 million yuan, more than 200 employees, 20 engineers and technicians, covers an area of 24, 000 square meters, with all kinds of production equipment 90 (sets).
Our Services
1. Freely provide project designing, process designing, choosing suitable equipment for you.
2. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed
process, and complete process of export
3. 100% positive feedback
4. 12 months warranty
5. Professional technicians provide installation, commissioning services
6. Technical advisory for any time
FAQ
1.Q: Why we choose your product?
A: Rich experience: We have more than 10 years experience in this industry. Which means, we can preview the problems for the orders and products.
Point to point service: There is one sale who will serve you from inquiry to products shipped out. During the process, you just need to discuss with her for all problems and the way saves much time.
Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoided within door.
Shipping: We have shipping department and forwarder, so we can promise faster delivery and make the goods well protected.
2. Q:What's your product range?
A:electric hoist, hoist, crane motors, conical motors, vibration motors, concrete vibrators and hoist accessories.etc
3.Q:What is the information should I provide when inquiry?
A: a. Which type of the products I need?
b. What is the quantity of the product I need?
c. FOB or CIF,and which port you want?
4.Q: What is the process for doing business with us ?
A: 1. please provide details of the products you need and we will quote for you.
2. If price is acceptable and you need sample, we will provide Performa Invoice to arrange payment for sample and you should pay for the transportation freight and sample cost.
3. If you approve sample and require for bulk production for order, we will provide Performa Invoice foryou, and we will arrange to produce at once when we get 30% deposit.
4. We will send photos of all goods, packing, details, and B/L copy for you after goods are finished. We will arrange shipment and provide original B/L when the clients pay the balance.
5.Q:Which country have you exported?
A: we have export Russia,Turkey, Malaysia, Vietnam and many other countries.
CONCACT
