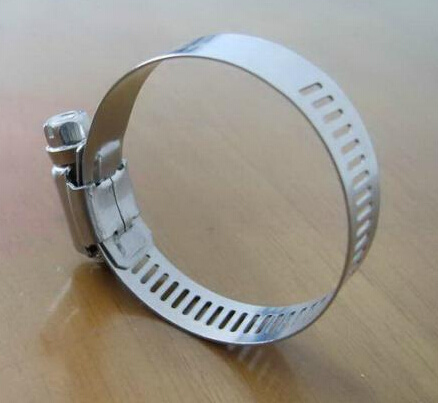

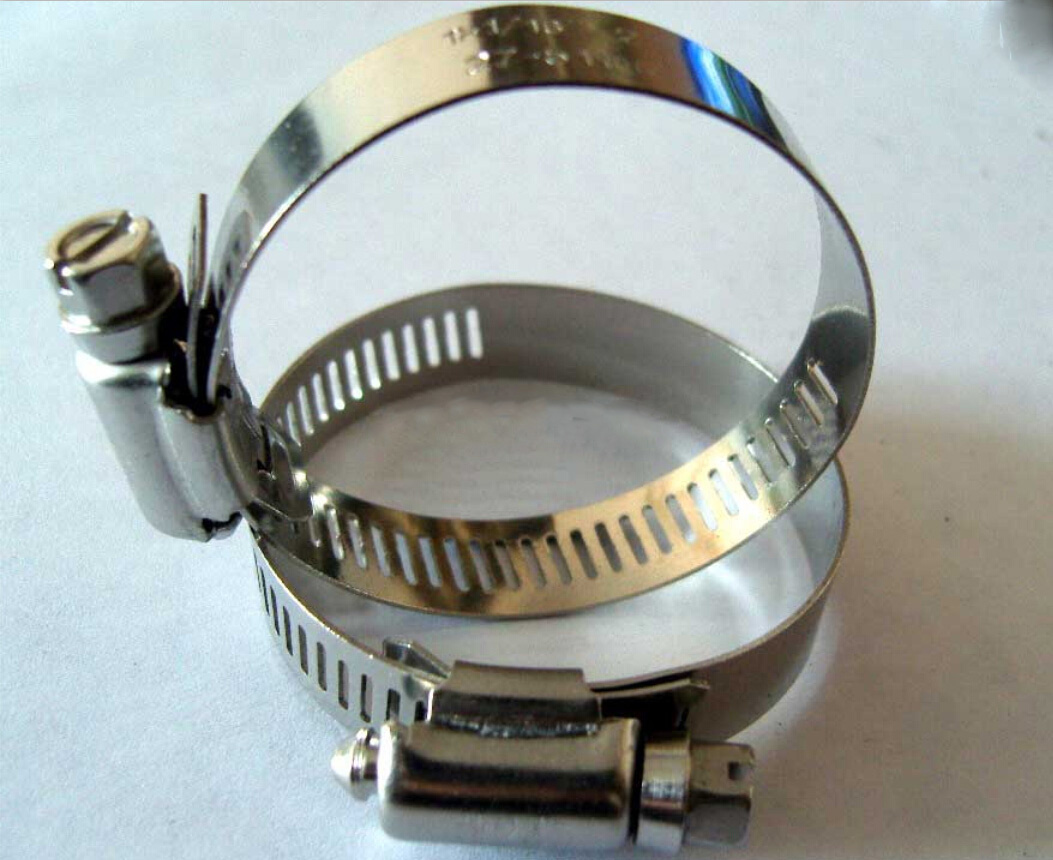

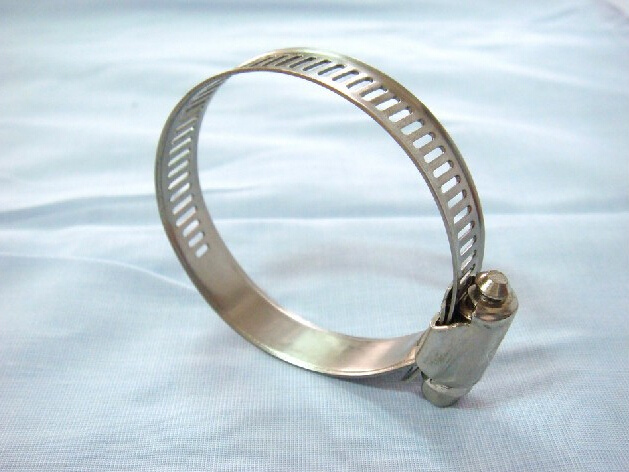

Thickness 1.5mm Steel Galvanized Rubber M10 Nut Metal Hose Clamp

Prod Model:	hose clips
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Condition:	Sand Blasting / Zinc/ HDG
Safety:	3 Times Tensile Strength Test
Package:	White Tissue Within Wooden Crate
Original:	Qingdao
Trade Mark:	at OEM ODM
Certification:	ISO CE SGS
Shipping Port:	Qingdao
Production Capability:	300, 000 PCS / Month
Material:	Metal
Usage:	Pipe Clamp
Structure:	G Clamp
Standard:	Nonstandard
Brand:	at

Product Description

AT PRECAST manufacturer for construction precast including lifting system, rigging hardware, metal parts with 13 years experience.






Quick Details

Place of Origin:	Shan Dong, China (Mainland)	Brand Name:	AT	Model Number:	TY
Usage:	Pipe Clamp	Material:	Metal	Structure:	Wave Clamp
Standard or Nonstandard:	Standard	product:	hose clamp	material:	stainless/carbon steel

Packaging & Delivery

Packaging Details:	Plastic bags/blister paper card/inner box as inner package ,then in cartons ,pallet at last for all kinds of hose clamp.
Delivery Detail:	15-30days

Specifications
We produce all kinds of hose clamp.
Material:carbon steel/stainless steel
Size:according your requirement
Specifications
All kind of hose clamp manufacturer
1)Made of high quality stainless steel
2)Excellent wear resistance
3)Various product available
All kind of hose clamp manufacturer

Specifications:
1)Material :400/300/200 series grade stainless steel /Carbon steel .
2)Band width :12.7mm/8mm/10mm/14.2mm
3)size:various sizes are available ,after your order

Advantages:
1.The outer edge of the band with smoothing and shaping treatment precludes the damage of the hose.
2.using high quality material and precise stamping molding, prevents thread stripping.
3.with precise design, uniform stress, good sealing ability, can be twisted smoothly, and used multiple times.

sizing and clamping range chart


Band width	code	Dia range(mm/inch)
	04	6-16	1/4"-5/8"
5/16"	06	8-22	5/16"-7/8"
Or	08	10-25	3/8"-1
8mm	10	10-27	3/8"-1 1/16"
	12	13-32	1/2"-1 1/4"
	16	13-38	1/2"-1 1/2"
	20	19-44	3/4"-1 3/4"





Size range chart is base on American type hose clamp,others pls link our website or tell us.

Main Products Outline:
1 British hose clamps: band thickness is usually about 1 mm, double the thickness of other hose clamps. So the band tension is very strong. Widely used in larger pressure occasions. With out tooth traces at inner ring of the band can protect the soft surface of hoses.

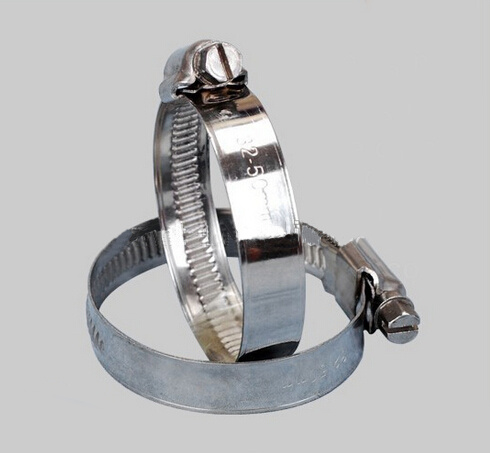

2 German hose clamps: the unique side pressing design, and non-perforated design can effectively prevent the soft surface of the silicone tube and hose from damage.

3.American hose clamps: with band thread through-hole, and teeth of the screw fitted in, they have more powerful locking. and accurate Occlusal. Also,american hose clamps can be used in non-circular objects, they can bundle the square columnar objects, such as flue, electric vehicle batteries,etc.

4.T bolt hose clamps: similar to their brothers ---- the single-head solid strong clamps, both of them belong to the powerful hose clamps , which also called European clamps. The common bandwidth 20MM, 24MM, 26MM,etc., have a larger Strong torque. Widely used in places with strong fastening force requirements.

5.V band hose clamps: traditional flange replacing products. beautiful appearance. cheap. fast and easy installation. high strength, good sealing performance. Pipes are connected with high concentricity. and easy removal. They can be used as an active connection of round or oval ducts and pipes which require constant maintenance and activities.

6.U shape pipe clamps:are used for pipe fixing on various surfaces and support structures. U tube clamps is suitable for fixed pipeline with oil, water, gas medium in metallurgy, petroleum, chemicals, vehicles, ships, power hydraulic systems. U pipe clamps under stamping, sheet metal, galvanized surface treatment , taking shape with "U" style,have a unique advantage of damping, silencers, sound absorption, abrasion etc..

7.Spring-loaded T-bolt hose clamps: spiral spring design prevents the occurrence of leakage when temperature changes, and have a self-compensation function (constant pressure). Widely used in truck air intake, cooling ventilation systems. T-spring hoops made of high quality stainless steel and thin band material, provide uniform sealing pressure with special bending process ,forming a completely reliable seal. they are dedicated to the environment of vibration and large diameters.

8 rubber coated hose clamps: with good flexibility, tensile strength, flame retardant, waterproof, anti-aging, anti-static, high temperature resistance, corrosion resistance, wear-resistant, anti-UV performance.

9. Handle/thumb screw hose clamps: simple and easy to use, without any tools. Handle/thumb screw can be plastic coated or not.

10 quick release hose clamps: mainly used in fast conversion, such as sealing of the air duct, dust channel interface. meets quickly tied needs to enable work very efficient.
FAQs

1. Where is your location?

We are located in Qingdao City of China and are closed to Airport. It takes 30minuts by car from Liuting Airport our company.

2. How long has the company been established?

AT INDUSTRY was established in 2009. There is 6 years exporting experiences.

3. How many employees do you have?

Administration / sales    4
Engineering / design as our partner     8
Production as our partners 120
Quality assurance / inspection   10

4. Which countries do you export to?

U.S.A, Germany, France, Italy, UK, Brazil, Middle east of Asia, Thailand,

5. What proportion of your goods are exported?

100% of our production are exported to all over the world.

6. How long does it take to receive samples?

a) Pattern:30-45days after order
b) Sample:30days after pattern finishing.
c) The lead time is the general production period and does not include the transportation time.

7. New product development process

Got tooling order and sample order with 50% deposit---Hold a meeting with the relation dept. to ensure the developing schedule---Design pattern, fixture and gauge and making them in our house---mold steel buying---Machining---Inspection---Send out the sample with initial inspection report.

8. How long is the manufacturing lead time?

Mass Production: 90days after sample approval by yours.
The lead time is the general production period including the transportation time.
We could make some special production arrangement effectively if customer has urgent need.

9. What basis can we buy goods?

We generally offer customers prices FOB& CIF (Carriage, Insurance & Freight). The CIF includes the freight cost to your nominated sea port.
We do provide clearance of goods which needs to be handled by a local freight forwarder.
All local costs and taxes are the responsibility of the buyer. We are happy to offer advisement on shipping if required.

10. What are the payment terms?

Payment terms are negotiable and will improve for long term customers.
During the initial stages, we request 50% of tooling fee in advance with the balance payable on acceptance of samples.
Production orders can be negotiable. We prefer 50% deposit and the balance by T/T before sails. But sometimes T/T 30 days after sails would also acceptable.

11. Which currency can we buy in?

We can deal in USD / Euro currency / GBP.

12. How long does it take to ship goods from China by sea?

It takes about 5 weeks to European ports plus 1 week customs clearance, so you can get the container within 6 to 7 weeks. It takes about 2 weeks to east coast and 3 weeks to west coast US ports. All sea goods are shipped from Qingdao Port.

13. How long does it take to ship goods from China by air?

It takes about 7 days to all major destinations.

14. Can we visit the factory to conduct an audit?

Yes, you are welcome to visit our partner factory by prior agreement.

15. How do we retain client confidentiality?

We are happy to sign Confidentiality Agreements with customers and will honor them.

16. Which languages do we do business in?

Although we do business with many countries around the world, we can only communicate effectively in Chinese English.
All information supplied should therefore be supplied in this form.

17. Is there a minimum volume of business required to conduct international purchasing?

There are no minimum volumes, but the prices of the goods, plus the fixed costs of importing makes it more economical to buy in high volumes. All potential customers will be assessed on an individual basis to determine if it appears a viable option for all parties to develop a relationship.

18. What type of parts you are specialized in?

Our business contains two areas,
one is for construction precast including lifting system, rigging hardware metal parts.

Another is customized metal business of quality sand castings, investment castings, lost foam castings, hot forgings, cold forgings, stampings, machined parts, injectionmolded plastics parts, etc.

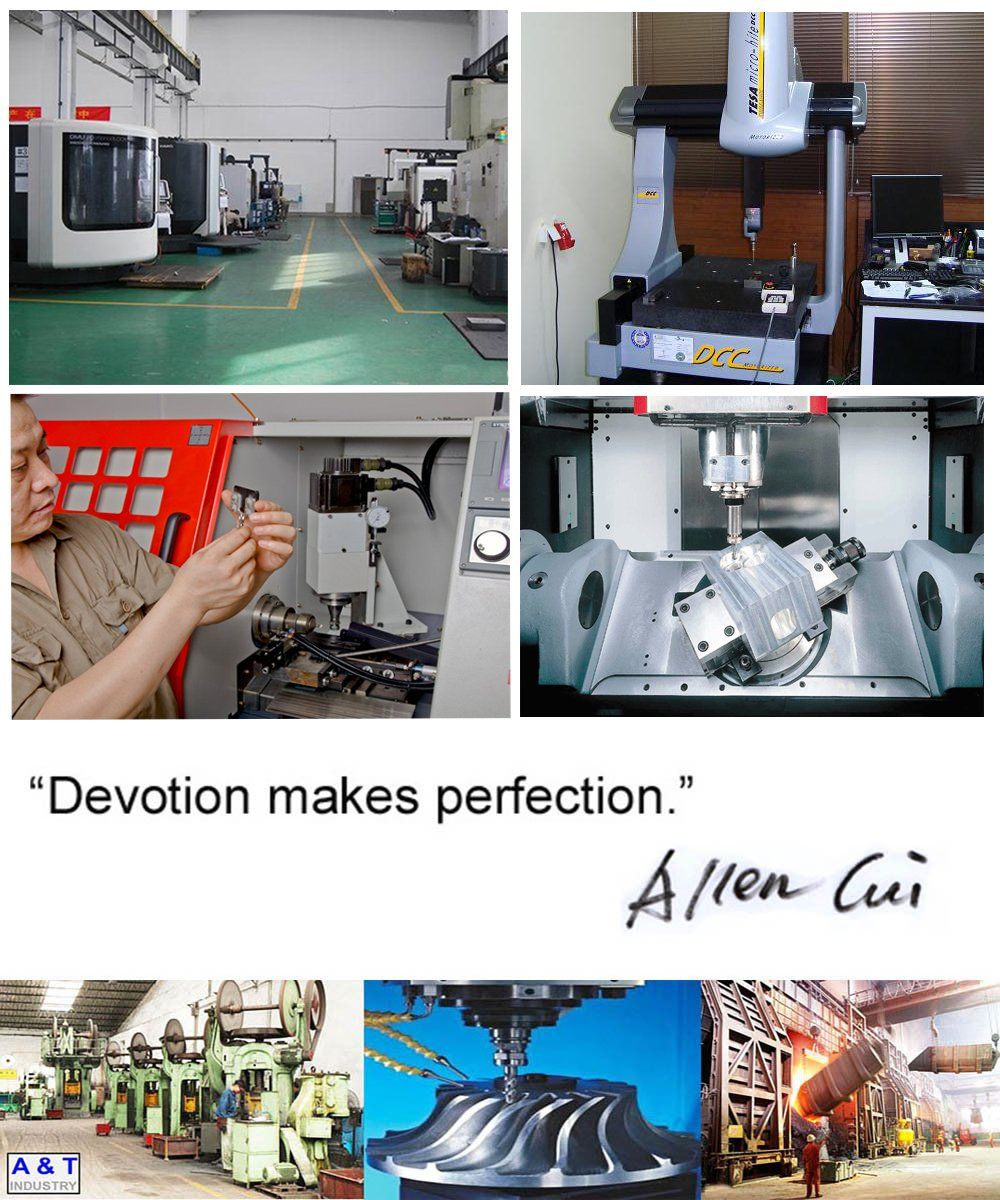

19. Which kind of equipments do you have?

Forging friction press 160Ton, 300Ton, 630Ton, 1200Ton
Casting furnace of 200kg, 500kg,1000kgs, 2000kgs
Press of 63ton, 120tons
CNC Machining center
CNC Vertical Lathe
CNC Lathe center
Boring machine
Drilling machine
