| Prod Model: |
thin saw blade |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

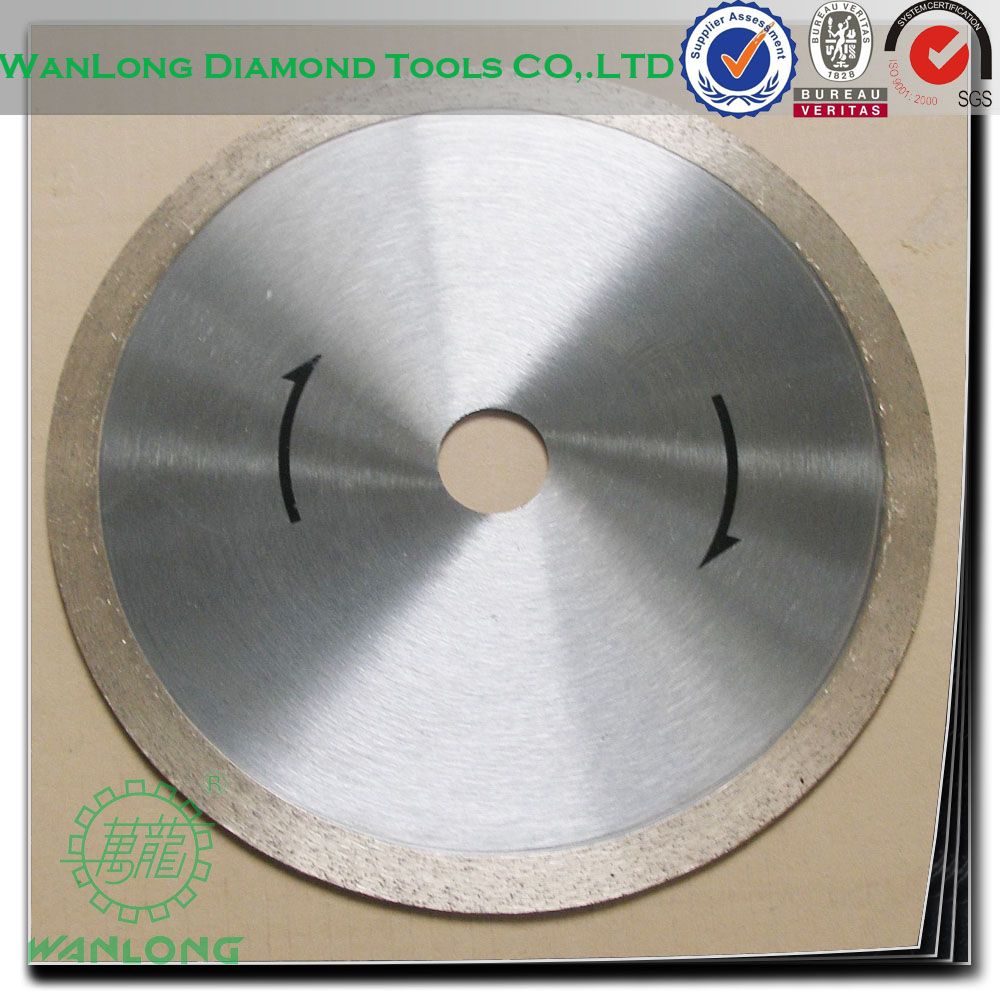

Stone Cutting Small Saw Blade |
| Cutting Life: |
Long |
| Sharp: |
Round and Circular |
| Segment Bond: |
Diamond |
| Diameter: |
250mm |
| Advantage: |
Wet and Dry Cutting |
| Quality: |
High Performance |
| Use: |
Stone Hand Saw, Stone Cutter or Laser Bridge Saw |
| Graininess: |
300# |
| Thickness: |
10mm |
| Shape: |
Round |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Cutting |
| Usage: |
Stone Cutting, Abrasive and Carving, Engineering Material, Optical Glass Cutting, Lab Use Super-thin Saw Blade, Semiconductor Cutting, Arts Cutting, Fire-Retardant, Porcelain, Plastics, Laminate Plate, Stone Cutting Saw Blade |
| Customized: |
Customized |
| Brand: |
Wanlong |
| Saw Blade External Diameter: |
250mm |
| Specification: |
10inch |
Product Description
CIRCULAR SAW BLADES FOR CUTTING STONE EDGE AND SMALL SIZE BLOCK
Brief introduction: High Frequency welded, for granite, marble, slate, limestone, sandstone, ceramic tile, artificial stone cutting, used for cutting machine.
Characteristics: Fast cutting speed, long life, stable performance for long term.
For other specification and sizes are availble upon request.
1 The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long lifespan 2 Excellent comprehensive cutting performance
| Diameter(mm) | Segment Dimension(mm) | Born/mm | No. |
|---|
| 105 | 20×1.8×7.5 | 16,20 22.23 25.4,50 | 8 |
| 115 | 20×1.8×8.0 | 16,20 22.23 25.4,50 | 9 |
| 125 | 20×2.0×8.0 | 16,20 22.23 25.4,50 | 10 |
| 150 | 20×2.0×7.5 | 16,20 22.23 25.4,50 | 10 |
| 180 | 20×2.2×8.0 | 16,20 22.23 25.4,50 | 14 |
| 200 | 20×2.2×8.0 | 16,20 22.23 25.4,50 | 14 |
| 230 | 20×2.4×8.0 | 16,20 22.23 25.4,50 | 16 |
| 250 | 20×2.4×8.0 | 16,20 22.23 25.4,50 | 18 |
| 300 | 20×2.6×8.0 | 16,20 22.23 25.4,50 | 22 |
| 350 | 20×2.8×8.0 | 16,20 22.23 25.4,50 | 24 |
Diameter(mm) | Steel core(mm) | Head size(mm) | No. | Shape | Application |
|---|
| 400 | 2.6 | 40×3.8/3.4×15(20) | 28 | RTSPLITTING | Granite |
| 450 | 3.0 | 40×4.2/3.8×15(20) | 32 | RTSPLITTING | Granite |
| 500 | 3.0 | 40×4.2/3.8×15(20) | 36 | RTSPLITTING | Granite |
| 550 | 3.6 | 40×5.0/4.4×15(20) | 40 | RTSPLITTING | Granite |
| 600 | 3.6 | 40×5.0/4.4×15(20) | 42 | RTSPLITTING | Granite |
| 650 | 4.0 | 40×5.4/4.8×15(20) | 46 | RTSPLITTING | Granite |
| 700 | 4.0 | 40×5.4/4.8×15(20) | 50 | RTSPLITTING | Granite |
| 750 | 4.0 | 40×5.4/4.8×15(20) | 54 | RTSPLITTING | Granite |
| 800 | 4.5 | 40×6.0/5.4×15(20) | 57 | RTSPLITTING | Granite |
| 850 | 4.5 | 40×6.0/5.4×15(20) | 58 | RTSPLITTING | Granite |
Other specifications are available upan request.
Silent and non-silent blades are available for choice.
Fujian Diamond Tool Co., Ltd. Was established in 1998, with imported advanced technology and cutting grinding machines, firstly cuts stone into 3-5mm laminated with Aluminum and Aluminum Honeycomb. This opens a new stage of stone building material industry in our country. With our great efforts and full experiences to improve our technology, we are successfully reduced the cost and promoted this kind of products to international market. Our annul output of Stone Panel reach 50000 square meters, and it has met good demand in USA, Europe, and Korea, etc. Recently, we newly use the Stone panel made into stone table top Panel, Stone countertop panel. We have been in a constant pursuit of enterprise spirit "Creative, Enterprising" redoubling our efforts for further im provements of innovations, we have created a new landmark in stone industry.
In the United States has an excellent and very professional exclusive partner SPI, and SPI just like a big family, they are working together with American people and helping them design wonderful, gentle and graceful homes...Any friends who from USA are interested in our products, please not hesitate to contact with our exclusive partner SPI in the United States, Surely SPI will take care of all your requests and supply you a very wonderful service.
Now is looking for agents in others countries, welcome you to join us and create a very wonderful future together.
