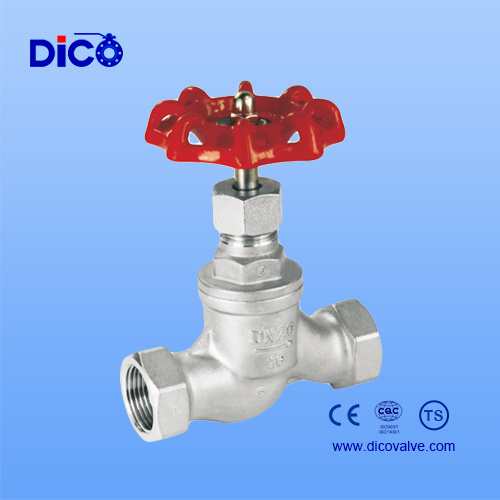

Thread Globe Valve API607-CF8m Glove Valve

Thread Globe Valve API607-CF8m Glove Valve
Price: US $ 10/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: J11W-16P/R
Structure: Through Way Globe Valve
Sealing Form: Gland Packings Globe Valve
Stem Thread Position: Inside Screw Stem Globe Valve
Application: Lining Fluorine Valve
Standard: GB

Product Description



Basic Info.

SS304 OEM Globe Valve in Stainless Steel 200PSI
Product Description :
1)      Full Bore
2)      Size: 1/2''-2 1/2''( DN15-DN65)
3)      Material: CF8(SS304), CF8M(SS316), DIN1.4408/1.4308
4)      Threaded: BSP, NPT, PT, DIN259/2999
5)      Working Pressure: 200PSI
6)      Suitable Temp.: -20~200ºC~350ºC
7)      Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid

Features:

1.      Investment casting Body
2.      Non-Rising stem and Hand wheel
3.      Adjustable stem packing
4.      Loose solid disc, Integral seat
5.      Working pressure 200 psi for W.O.G.
6.      Temperature range: -60 to 450 °F
7.      100% leakage tested at 100 psi air under water
8.      Hydrostatic test pressure: 300psi
9.      Y-Globe valve would be available



Product NameStainless Steel Threaded Globe Valve
1. MaterialStainless Steel 304/316/304L/316L ( CF8/CF8M/CF3/CF3M)
2. Size1/2''~4'' ( DN15~DN100)
3.CertificateISO9001 & CE
4. PortFull Port
5. Working Pressure200PSI (PN13.8/1.38Mpa)
6. Connection EndsNPT/BSP/BSPT/DIN259/DIN2999
7. Working Temp.-20~350ºC
8. Suitable MediumWater, Natural Gas, Oil and some corrosive liquid
9. SealMetal
10. LockingOption
11. Inspection & TestingAccording to API598
Shipment
Delivery Time15~20 Days
PackageStandard Exporting Plywood Case
Shipping PortNingbo/Shanghai, China
Shipping TermsExw, FOB, CFR, CIF, etc.
Payment TermsT/T, Western Union, PayPal, etc.
 30% prepayment, 70% balance paid before shipping or against copy of BL
Warranty18 Months after leaving factory
AdvantageOEM/ODM is applicable
OthersWe also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer
1,quality is superiorand price is reasonable
2,well done !perfect after service
3, monthly output: 400, 000.00 set/month
4, Payment term: L/C or T/T
5, Delivery time: 30-45 days after received the deposit.
6, Package detail: Inner CTN, ourside ply-wooden case
choose me
1, We are according to the requirements of customer to print logo
2, our products are well received both at home and abroad
3,Please be assured the quality is passed the CE certification
4,If you need we will meet all the demands
5. We are manufacturer
6,We will be answer within 24 hours, glad to contact with us if you have any problems, We are looking forward to cooperating with you.


Wenzhou Dico Valve Technology Co., Ltd, (Wenzhou Sente valve Co., Ltd); Established in 2005 and situated in wenzhou China, which called Chinese valve city. Dico Valve is a professional plant integrating R&D, production, sales and service of valves and has abundant strengths and plentiful production experience with a staff of over 50 involving several senior managers and engineers. DICO has obtained certifications of ISO 9001, API6D, CE, TS and so on.

The product category, materials applied and executive standards mainly produced in DICO company is listed below:

1. Category: Thread ball valve, Gate valve, Globe valve, ISO5211 Mounting pad flange ball valve etc;

2. Executive standards: ISO, API, DIN, BS, JIS, GB and so on;

3. Materials: WCB(A105), LCB(LF2), C5(F5), WC6(F11), CF8(F304), CF8M(F316), CF3(304L), CF3M(316L) and so on;

4. Diameter: 1/4"-6"(DN6-DN150);

5. Pressure: CLASS 150~CLASS 800(PN16-PN64);

6. Applicable temperature: -30º C~300º C;

In recent years, the products are exported to the nations involving USA, Turkey, Brazil, France, Italy, India, Spain and so on, and widely applied and well accepted by vast users in domestic and foreign fields like petroleum, oil refinery, chemicals, power station, boiler, metallurgy, power system control set and so on.

Our persistent management tenet is based on continuous exploitation, strict quality control, favorable price and complete service. Sincerely welcome to vast new and old clients to visit and cooperate with a view to commonly developing a brilliant tomorrow.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
