| Prod Model: |
hx919 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wall Thickness: |
0.8mm-1mm |
| Manufacturing Arts: |
Sinter |
| Kind: |
Diamond Drill |
| Shank: |
Thread |
Product Description

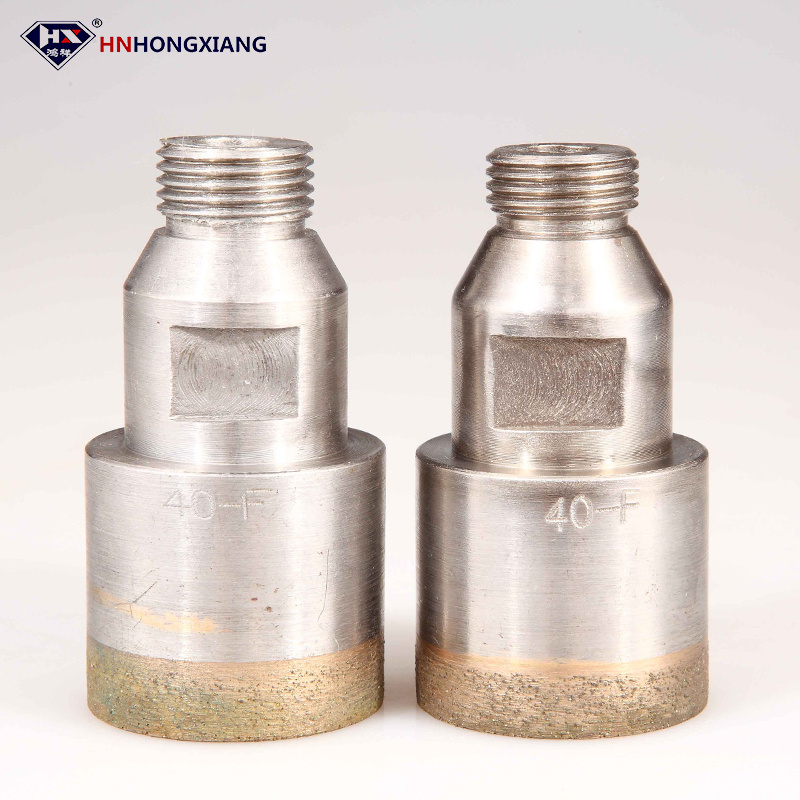

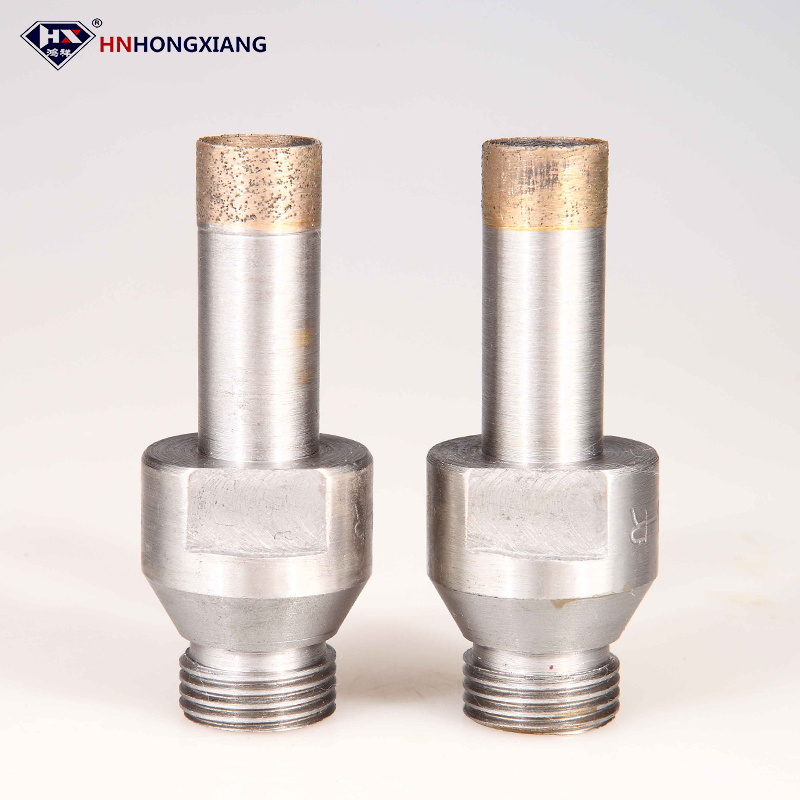

Diamond Core Drill Bit
1. Fast drilling speed
2. High efficiency and less chipping
3 minimum material deformation
4 long life
We specialize in the production of diamond drill
Sharp, wear-resisting
Don't jumping edge
Long service life
Require lower WOB, high rotary speed and small flow rate, good concentricity
Wildly used in cutting glass
Diameter: 5mm - 100mm.
Total length: 70mm, 75mm, 90mm, 95mm
Dig holes. 5000+ ---- 10000+
Classed by suitable equipments:
1. Straight shank
2. Cone shank
3. Threaded shank
Segment Height: 10mm
Wall Thickness: 0.8mm-1mm
About Us
Established in 1990, Zhecheng Hongxiang Superhard Material Co., Ltd is a specialized enterprise that engages in the research, production and sales of various kinds of synthetic diamond and diamond tool, glass tools, which keep ahead in Chinese market. Our target: Advanced technology is the basis of high-quality products.
WELCOME TO VISIT OUR FACTORY! ! ! ^_^
| Reference Data |
| Taper of shank:45 | Height of wark layer :10mm | Machine:
Professional Punch machine | Usage :
drill glass,ceramic, tile , porcelain, |
|
| Total length : 65mm |
| Thickness of wall:1mm |
| Effective length:35mm |
|
| Diamond Drill Bit--Cone Shank |
| Diameter (MM) |
| 5 | 29 | 53 | 77 |
| 6 | 30 | 54 | 78 |
| 7 | 31 | 55 | 79 |
| 8 | 32 | 56 | 80 |
| 9 | 33 | 57 | 81 |
| 10 | 34 | 58 | 82 |
| 11 | 35 | 59 | 83 |
| 12 | 36 | 60 | 84 |
| 13 | 37 | 61 | 85 |
| 14 | 38 | 62 | 86 |
| 15 | 39 | 63 | 87 |
| 16 | 40 | 64 | 88 |
| 17 | 41 | 65 | 89 |
| 18 | 42 | 66 | 90 |
| 19 | 43 | 67 | 91 |
| 20 | 44 | 68 | 92 |
| 21 | 45 | 69 | 93 |
| 22 | 46 | 70 | 94 |
| 23 | 47 | 71 | 95 |
| 24 | 48 | 72 | 96 |
| 25 | 49 | 73 | 97 |
| 26 | 50 | 74 | 98 |
| 27 | 51 | 75 | 99 |
| 28 | 52 | 76 | 100 |
