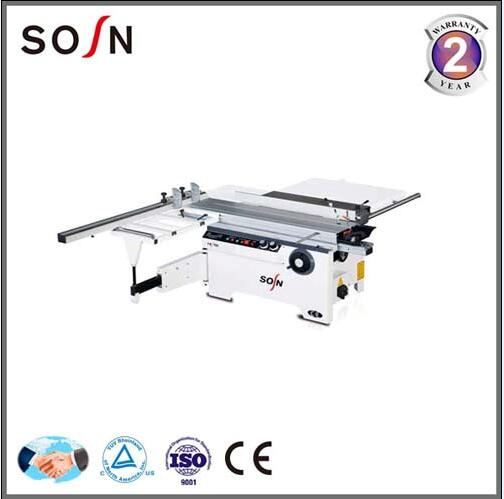

Tilting Sliding Table Saw for Woodworking (MJ6116TD)
| Price: |
US $ 1000-8000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MJ6116TD |
| Model(Manual Control): |
Mj6116td |
| Sliding Table Size(mm): |
1600*375 |
| Gross Cut Capacity(mm): |
1600 |
| Width Between Saw Blade&Rip Fence(mm): |
1250 |
| Saw Blade Diameter(mm): |
300(250-400) |
| Height Of Cut (300mm): |
80 |
| Main Saw Spindle Speed Rpm: |
4500/6000 |
| Main Spindle Diameter(mm): |
30 |
| Tilting Saw Blade: |
0-45& 90degree |
| Motor Power(Kw): |
5.5+1.1 |
| Type: |
Table Panel Saw |
| Layout: |
Vertical |
| Controlling Mode: |
Hydraulic Semi-automatic |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description

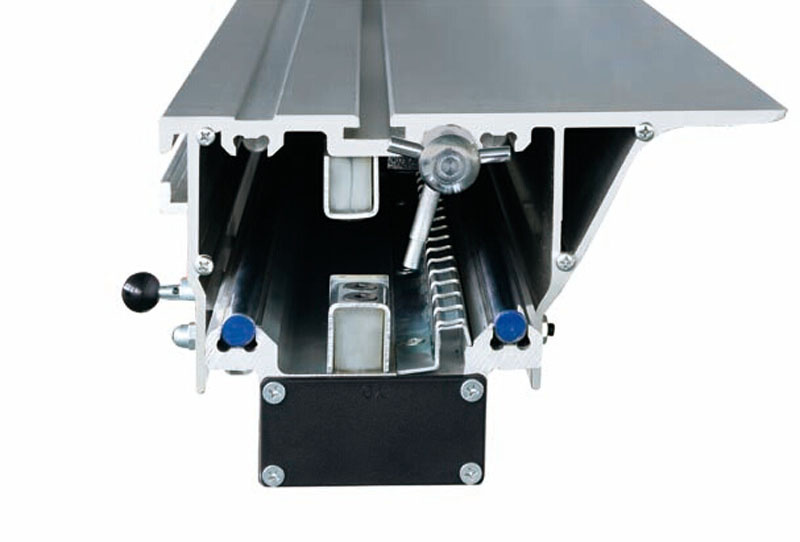

| Steel bar sliding table,with inner lock, more rigidity and strength,smooth movement.
|
 | Perfect inner structure, to make sure the machine work precision, easy-operation.
|
 | Auto power off saw blade cover added the working safety
|
 | 5.5kw +1.1kw big power motor, national standard, cooper wire, aluminum shells
|
Machine parameters | Model(Manual control) | MJ6116TD |
| Sliding table size(mm) | 1600*375 |
| Gross cut capacity(mm) | 1600 |
| Width between saw blade&rip fence(mm) | 1250 |
| Saw blade diameter(mm) | 300(250-400) |
| Height of cut (300mm) | 80 |
| main saw spindle Speed rpm | 4500/6000 |
| Main spindle diameter(mm) | 30 |
| Tilting saw blade | 0-45& 90° |
| Motor Power(kw) | 5.5 |
| Scoring motor(kw) | 1.1 |
| Scoring saw blade dia (mm) | 120 |
| scoring saw blade speed rpm | 8000 |
| Scoring saw diameter (mm) | 20 |
| Weight(kgs) | 600 |
Sosn advantages
1.professional manufacture with more than 20 years production experience in woodworking machines.
2.11,000 square meter workshop,first class skilled workers,near qingdao port,
3.5steps strict quality control,CE &ISO certificates
4.timely delivery with short production period
5.professional after-sale service available,email and calling is available in 24 hours.
6.more than 70 countries customers have enjoyed SOSN machines.Should you have any need of the machine , please feel free to contact with me
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
