Tire Grinding Machine/ Scrap Tire Strip Cutter
| Price: |
US $ 1000-10000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SY |
| Power(W): |
3kw |
| Dimension: |
1300mm*1000mm*1400mm |
| Weight: |
300kg |
| Certification: |
Ce ISO |
| After-Sales Service: |
Overseas Service Center Available |
| Motor Speed: |
1440r/Min |
| Capacity: |
40PCS/H |
Product Description

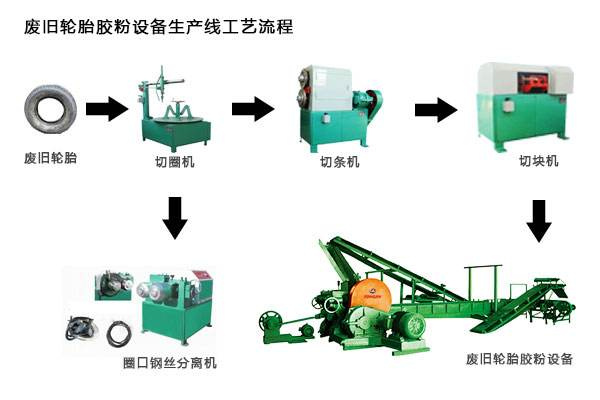

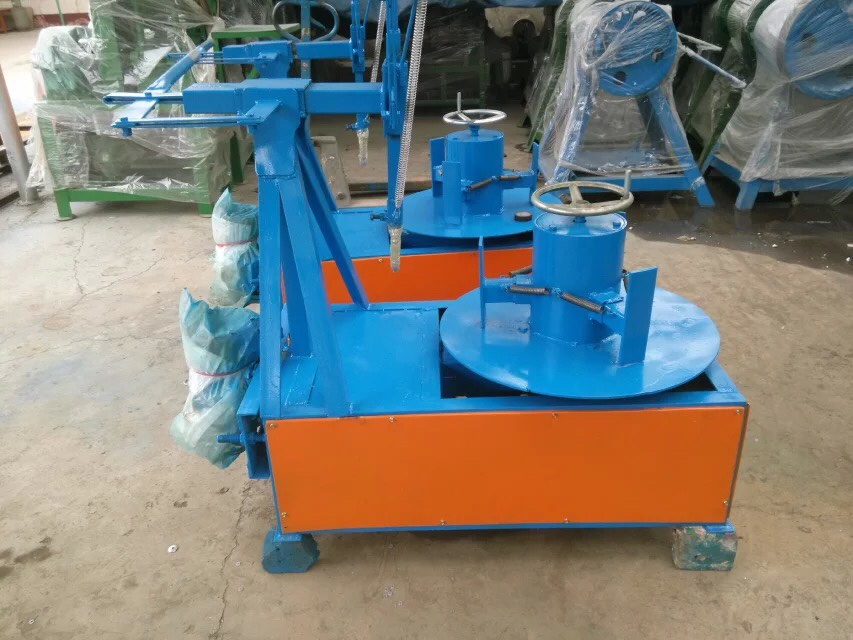

Ring cutter | Boundary dimension:1300mm×1000mm×1400mm Output:40pcs/h Power:3kw Motor speed:1440r/min Voltage:380V/50HZ Equipment weight:300kg Application:Be utilized in separation among the tire crown,tire side-wall and bead of waste tire,which is the first process of reclaiming waste tire. Characteristic:It is made using excellent hard alloy steel as it blade ,high hard and wearable. |

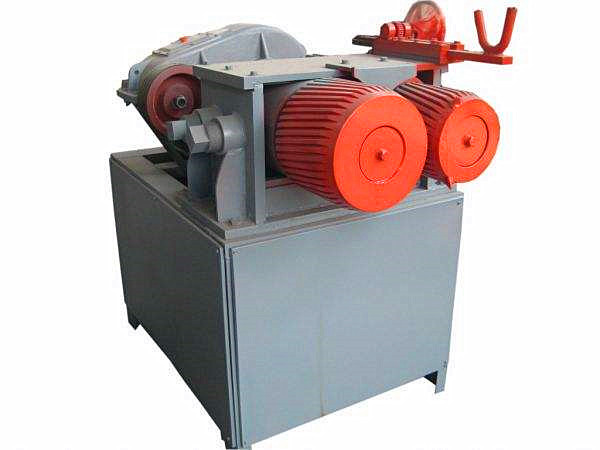

Strips cutter | Overall size:1300mm×800mm×1500mm Output:1000kg/h Motor power:4kw Motor speed:1440r/min Voltage:380V/50HZ Equipment weight:72kg Application:It is utilized in cutting the crown and side-wall of waste tire into a certain sized of long rubber strip. Feature:Disc knife is made using a special metal heat treatment,high hard and wearable ,is durable. |

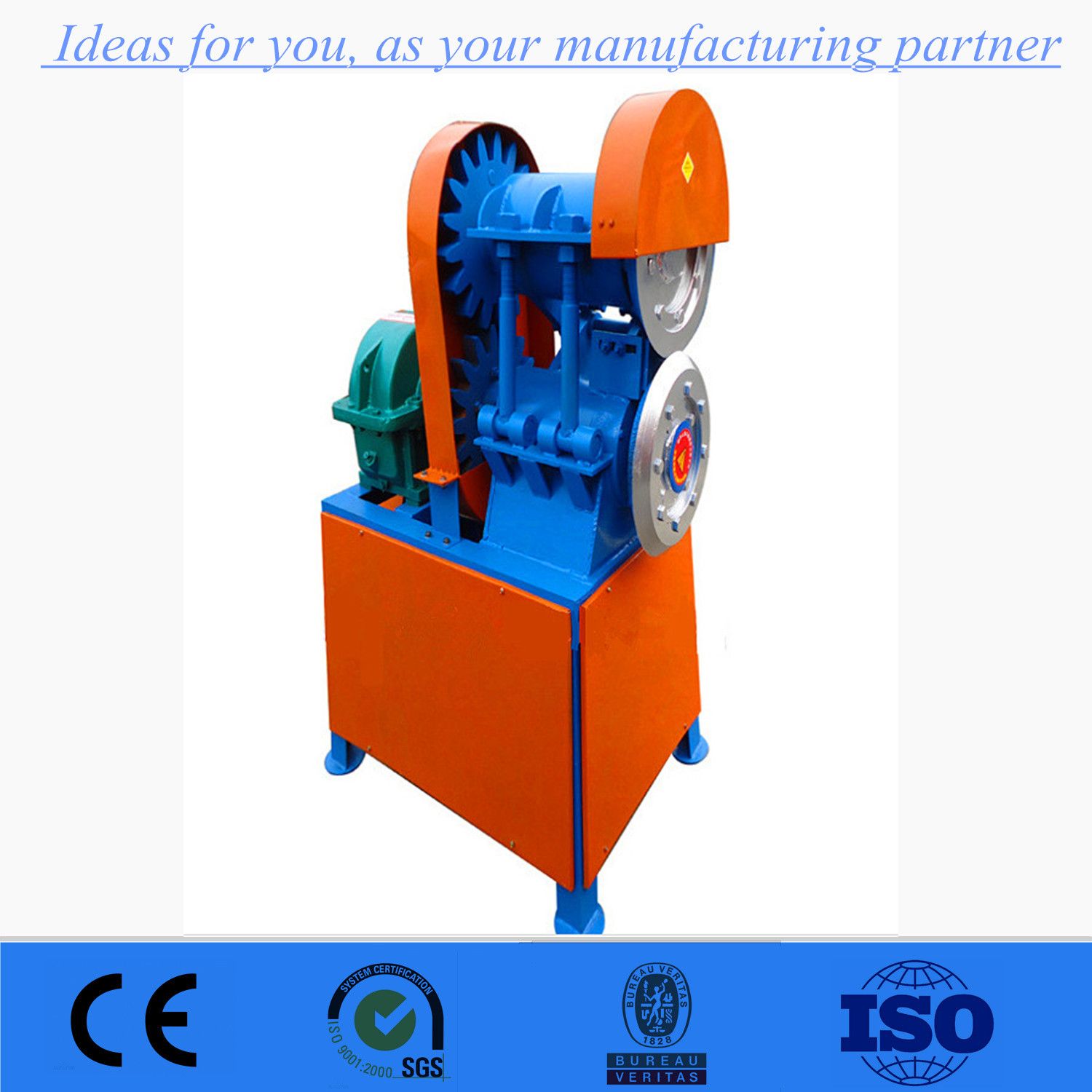

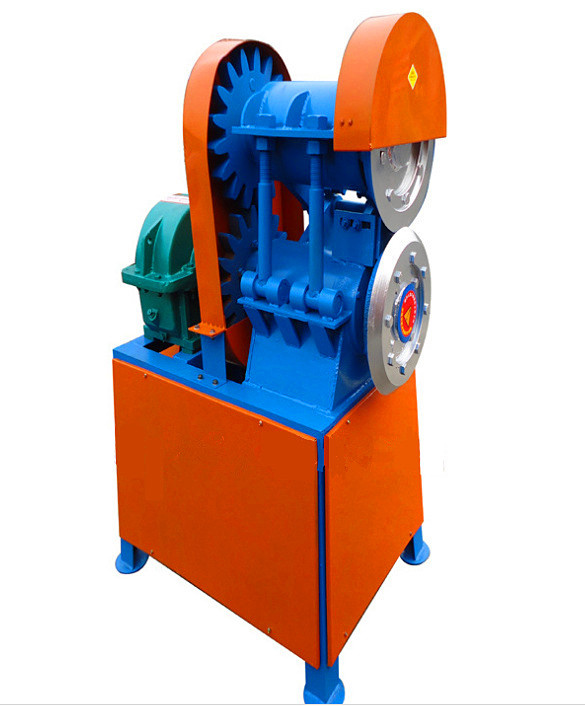

Rim cutter | Overall size:750mm×750mm×1200mm Output:1000kg/h Motor power:7.5kw Motor speed:1440r/min Voltage:380V/50HZ Machine weight:420kg Application: It is used in iconjunction with Strip Cutter , is utilized in cutting long rubber strip into rubber lump of 20~40mm. Characteristic:It is made using excellent hard alloy steel as it blade ,high hard and wearable. |

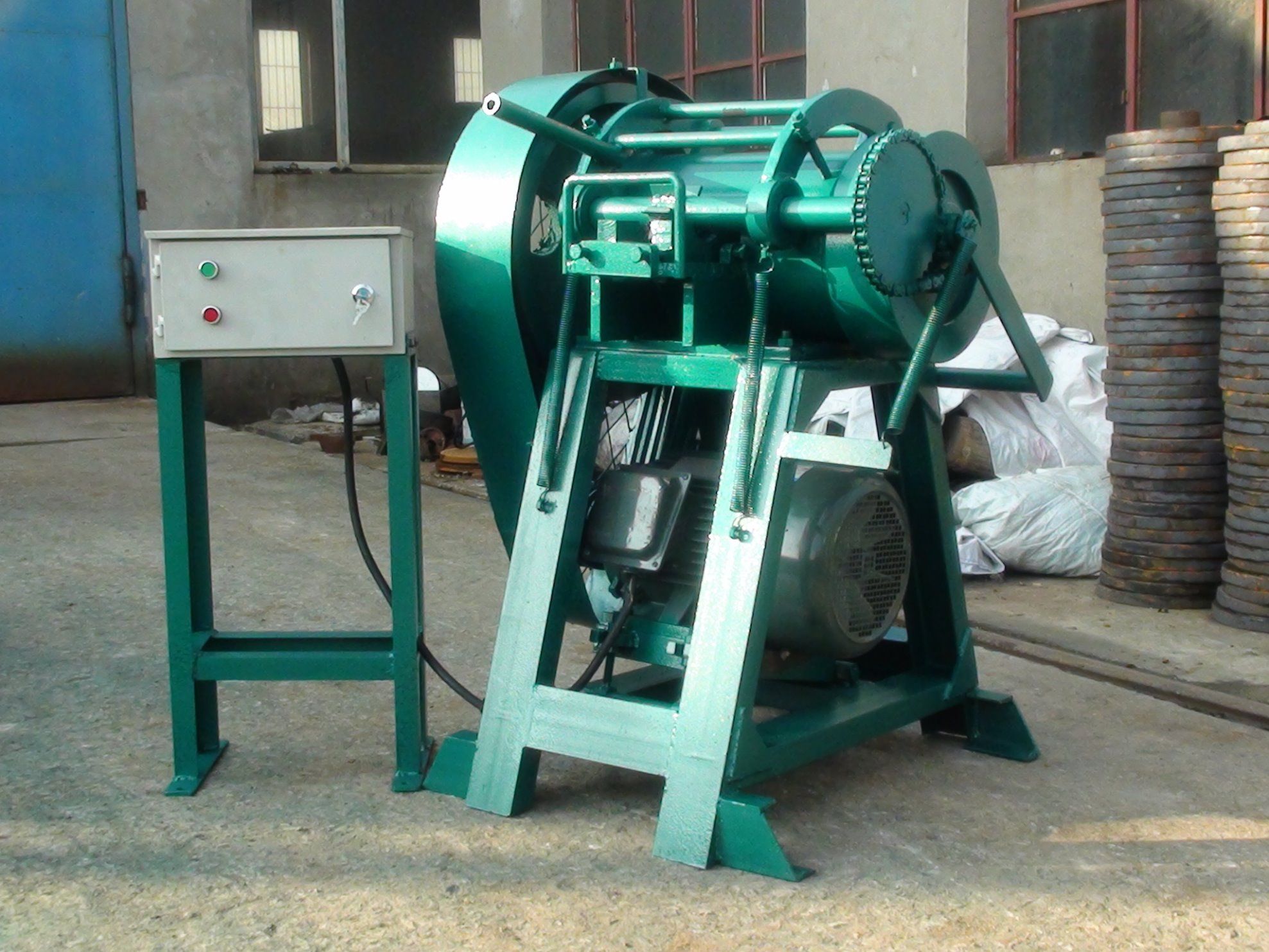

Steel wire separator | Overall size:1500×900×1400 Output:65pcs/h Motor speed:15KW Motor speed:1440r/min Voltage:380V/50Hz Machine weight:1300kg Application:Be utilized to separate rubber and steel wire of bead in order to get whole steel wire. Characteristic:It is easy operation ,easy to be installed and maintained high effeiciency and clean ect. |
Qingdao Evertech Industry Co., Ltd. is located in the famous coastal city of huangdao district, Qingdao City. Enterprise was founded in 1996, is a very famous Qingdao machinery science and technology enterprises, and has a high reputation in Shandong machinery industry, affiliated to Qingdao machinery joint corporation, is mainly engaged in rubber and plastic machinery, casting machinery with accessories processing and export. Enterprise has a professional R&D team, a high level of technical workers. The enterprise took the lead through the ISO9001 quality assurance system, and obtained ISO9001 measurement system certification, CE certification, etc. In 2006, production of rubber and plastic machinery obtained inspection-free product's permission.
With about nearly 20 years of experience, Enables the enterprise to according to different technical requirements of customers and delivery time for the designing and manufacturing of the machine. Could supply customers with rubber open mixing mill, rubber vulcanizing press, rubber kneader machine, watse tyre recycling machine, shot blasting machine and gear rack...Main machines has formed two major series with hundred kind of specifications. Enterprise from the beginning of establishment to now already has the annual output of more than 150 sets of casting machinery, and other rubber machinery. Machines are widely exported to Thailand, the United States, Germany, Brazil, New Zealand and other countries and regions.
Qingdao Evertech Industry Co., Ltd. With excellent staff, excellent equipment, advanced technology, scientific management, beautiful environment, to provide customers with satisfactory products and services. Welcome you visit to our factory, we hope that our experience and technology can help you and build good cooperation.
