Tire Shredding Machine Price/ Tyre Cutting Machine/Tire Cutter

Tire Shredding Machine Price/ Tyre Cutting Machine/Tire Cutter
Price: US $ 20000-80000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: XKP350/XKP400/XKP450/XKP560/XKP560D
Name: Waste Tire Recycling Machine
Function: Recycling The Waste Tire to Rubber Powder
Raw Materils: Waste Tires/Rubbers/ Shoes Soles/ Belt Ect.
Final Product: 5-100 Mesh Rubber Powder
Aftersales Service: Engineer Is Available for Installing and Training
Worker Needed: 1-2 Worker
Lead Time: 15-20 Days
Roller Speed Ratio: 1:2.5
Roller Length: 500-1000mm
Motor Power: 30-132kw

Product Description

Product Description
     Tire Shredding Machine Price/ Tyre Cutting Machine/Tire Cutter


Advantage of our tyre recycling machine:

1.  More than 20 years of experience.
2. Patented Products,1/3 energy saving!
3. CE & ISO9001 certificate.
4, 2 years warranty for the machines and 3 years for the rollers.
5, fully automatic production line, only need 1-2 worker to operate the whole plant. no need add any machine more.
6, High roller speed, fast date of delivery

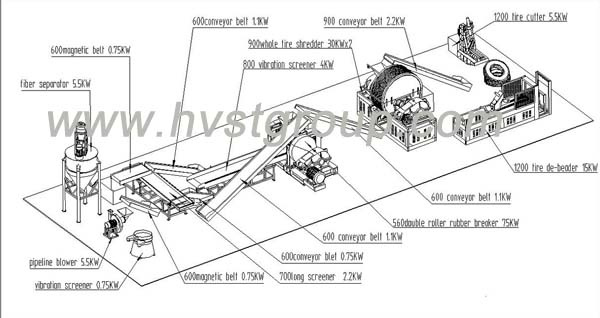

Process flows:
Tire recycling production line is used to produce the waste tyre into rubber powder or rubber powder. It can treat both radial tyre and nylon tyre, get rid of the nylon or steel in the waste tire.

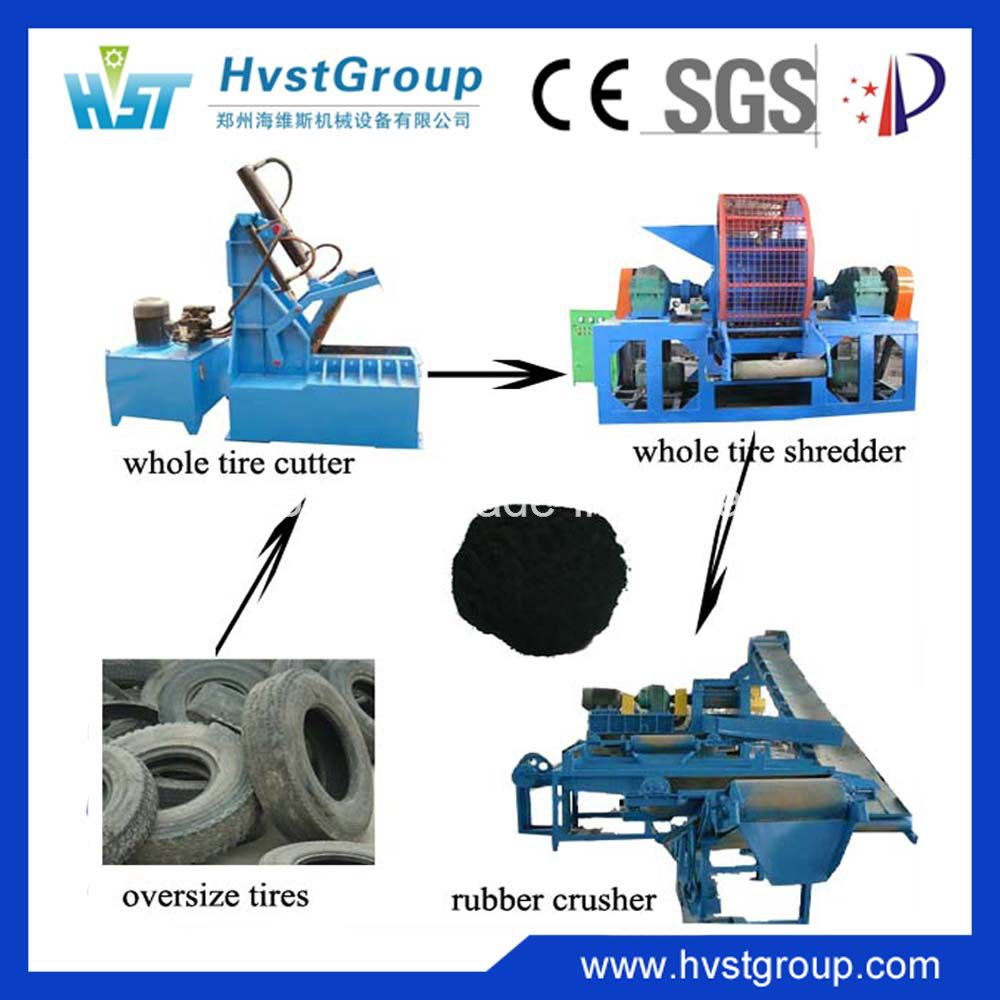

waste tires--- tire debeader--- tire cutting--- tire shredding--- tire crushing --- magnetic separating--- fiber separation-packaging-put in storage.



This production line including the below:
Name of equipmentQuantity(set)Instruction

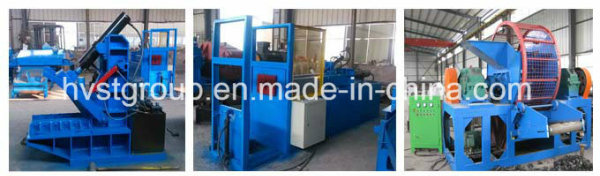

Pre-cutting equipmentTire debeader1To draw out the steel wire from tire bead
Tire cutter1To cut the big tires into rubber pieces
Tire Shredder1To cut the whole tire into rubber blocks
conveyor belt 2Separately delivery the whole tires to tire shredder and feed the rubber blocks to tire crusher.

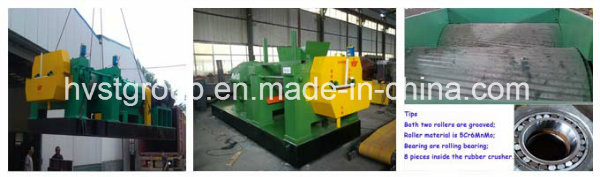

Tyre Crusher: used to crush the rubber block into 5-100 mesh rubber powder
Model No.XKP-350XKP-400XKP-450XKP-560XKP-560D
Diameter of front roll300mm(groove)400 mm (groove)450 mm (groove)560 mm (groove)560 mm (groove)
Diameter of back roll300mm(groove)400 mm (groove)450 mm (groove)510 mm (groove)560 mm (groove)
Drum working length500mm600mm760mm800mm800mm
Front roll liner speed26.234.5 m/min38.0 m/min40.6m/min44m/min
Roll ratio1:2.51:2.51:2.51:2.51:2.5
Max roller spacing8 mm8 mm8 mm8 mm8 mm
Motor power37KW45KW55KW75KW132KW
Weight6T8.512 T13 T25T

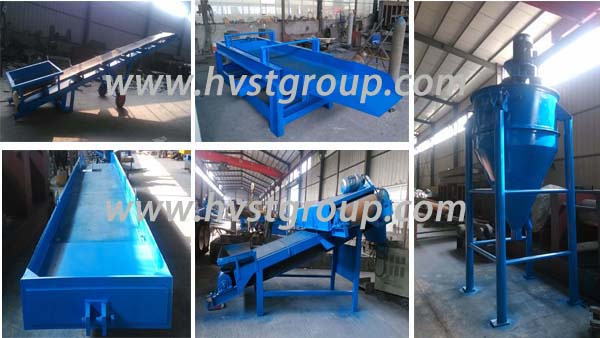

Relevant Auxiliary Equipment:

Name of equipmentQuantity(set)Instruction
Relevant Auxiliary EquipmentMain vibrating screen1Separate the rubber powder for the first time (5-10 mesh)
Vice vibrating screen1Separate the rubber powder for the second time (the final size of rubber powder we need)
Conveyor belt1To transfer the rubber powder that couldn't meet the mesh  requirested back to tire crusher and crush again
Fiber separator1Separate the nylon from rubber powder
Magnetic separator2Separate the steel wire from rubber powder
RemarkThe above equipments constitute the complete set of waste tyre recycling machine, no need add any machine more.



Success cases :





A Company You Can Trust:

Established in 1987, Zhengzhou Harvest Machinery Company is located in Changge City, Henan Province, the factory covers an area of more than 20000 square meters and has a beautiful environment, a complete set of equipment, strong scientific research strength and advanced production technology, it is one of the first domestic enterprises specializing in the development, production, sales and services of tire recycling machine, nail making machines. And have a good reputation in this field. Our products have won great praise from customers at home and abroad.

Quality and Safety:

Through more than 20 years of persistent exploration and a brave struggle, Harvest Machinery now can provide complete sets of rubber powder equipment with more than ten different models of tire recycling machine, such as waste tire disassembling equipment, tire shredder, tire grinding machine and rubber powder machine, . With leading product technologies and good product quality, the products sell well in more than twenty provinces and municipalities and some products are exported to multiple countries and regions. The company has formed a good market both at home and abroad. It seems that it has already become a leading enterprise in China's rubber recycling field.

We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Furthermore, all of our products have been strictly inspected before shipment. Our products have passed ISO9001 SGS, CE certification.

Your Success, Our Glory:

Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us! We are looking forward to cooperating with more clients worldwide for common development and mutual benefits.

And we can offer very well after-sale services, all machines would be in 2 years warranty, if any problems because of the quality, we would send you new ones.
