Top Quality Diamond Cut Wheel Refurbishment Lathe Awr28hpc

Name: Top Quality Diamond Cut Wheel Refurbishment Lathe Awr28hpc
Brand: tool-buy.com
SKU: 723704372
Availability: InStock
Rating: 4.8 (65 reviews)

Price:	US $ 14000-17000set
Min Order:	1set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Taian Hiscience Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	AWR28HPC
Colour:	Blue or Black
Controller:	CNC or PC
Voltage:	3 Phase 380 or Your Request Voltage
Cutting Effect:	Rainbow Line or Cutting Line
Detection Way:	Touch Ruby Probe System
Cutter:	Special Diamond Cutter
Optimized Software:	Designed for Optimize Program
Clamping Form:	3 Jaws Chuck
Max Wheel Size:	up to 27 Inch,30 Inch,or 32 Inch
Oversea Service:	Offer
Type:	Horizontal Lathe
Processing Accessory:	Chuck CNC Lathe
Tool Holder:	Single-tool Holder CNC Lathe
Power Source:	Electric
Controlling Mode:	CNC
Automatic Grade:	Automatic
Setting Mode:	Floor-type
Precision:	High Precision

Product Description

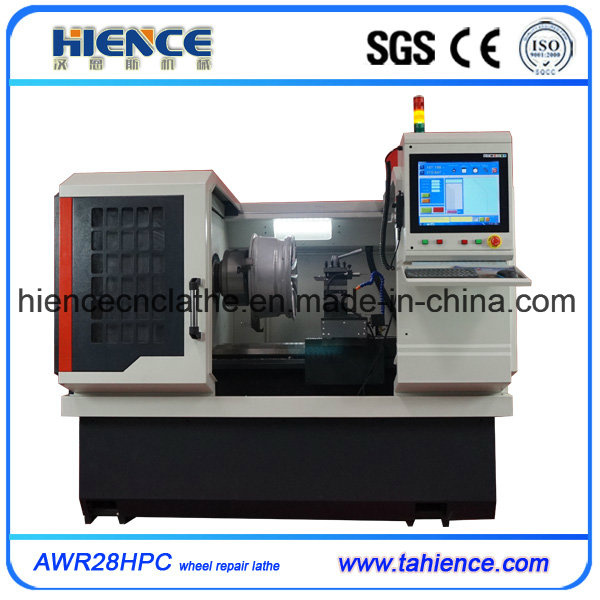

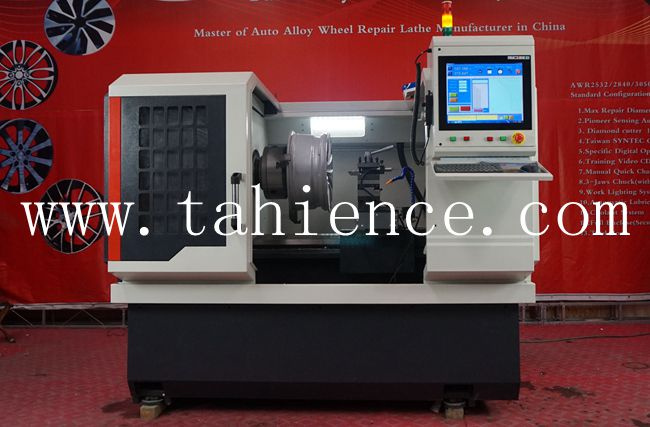

Alloy wheel refurbishment equipment AWR28HPC

Standard configuration

     1. Wireless key&mouse 1 set 2. Diamond cutter 1 set inner
     3. Diamond cutter 1 set outer    4. Special ordered soft jaws 1 set
     5. High precision prob system 1 set 6. 4 station tool which can adjust X stroke
     7. light system    8. Automatic lubrication system
     9. Cooling system(standard) 10. Full cover safety door
     11. Tool case 12. Training videos

Specification list

ITEMS		AWR28H-PC
Max. swing over bed (mm)(inch)		Φ770(30')
Max. Diameter of wheel(mm) (inch)		Φ710(28')
Max. Stroke of the X-axis(mm)		390
Max. Stroke of the Z-axis (mm)		880
Width of the rail (mm)		300
Length of the rail (mm)		1320
Size of the three-jaw chuck (inch)		13'
Range of spindle speed (RPM)		50-2000
Spindle speed control		Automatic
Spindle bore (mm)		Φ82
Taper of spindle bore		1:20(Φ90)
Taper of spindle nose		A2-10
Adjustable stroke of carrier in X direction		100mm
Max. size of tool post		25×25mm
Stations of tool carrier		4 position
Min. setting unit of motor		(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post		(Z) long 8m/min, (X) cross 6m/min
Motor power		7.5KW
Machine size	(L/W/H) (mm)	2200/1620/1870
Package size		2300/1720/2170
Net weight		2400KGS

Taian Hiscinece Machinery Co., Ltd is located in Shandong province, China. Is dedicated to the research and development, production and sales of CNC machine tools.

We are manufacturer and trader of CNC lathe, Slant bed Horizontal CNC lathe, CNC Pipe threading lathe, CNC wood lathe, CNC milling machine & machining center, Drilling machine, Manual engine lathe, CNC Turning Machine center, accessories of CNC machine.

Our company has developed one type new CNC machine for alloy wheel repair lathe machine which can probe wheels face and cut automatically.

CNC machine tool has been applied to the airline industry sector, gradually expand to the automobile, shipbuilding, machine tools, construction machinery manufacturing industry. For copper, aluminum, iron, plastic and other precision parts manufacturing, applicable to instruments, watches, cars, motorcycles, bicycles, eye wear, stationery, hardware, sanitary ware, electronic components, connectors, computers, cell phones, electronics, military and other industries in bulk machining small parts, especially the more complex parts.

The company has passed CE ISO SGS, Our products are hot sale in the domestic market, and meanwhile, they have been exported to Europe, America, Southeast Asia and othe countries, more than 100 countries in Worldwide.

The company adjacent to Qingdao, Shanghai, Tianjin, Lianyungang Port as well as Qingdao, Jinan, Shanghai, Beijing Airport.

Welcome all customers to have cooperation with us. We will offer our best machine and service to you.
