| Prod Model: |
JSL -T7722-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mould Base: |
S50c |
| Runner System: |
Hot/Cold Runner |
| Mould Cooling System: |
by Experienced Designer |
| Mould Standard: |
Dme |
| Heat Treatment: |
Nitriding, etc |
| Mould Quality Control: |
Professional QC |
| Mould Design Software: |
Ug, Proe, Solidworks CAD, Ect |
| TV Size: |
All Part Size According to Customers Requirement |
| Aftersale Service: |
Yes |
| Mould Delivery Time: |
50-60days |
| Shaping Mode: |
Injection Mould |
| Process Combination Type: |
Single-Process Mode |
| Application: |
Household Appliances |
| Installation: |
Fixed |
| Design Software: |
Ug,PRO-E,Solidwork |
Product Description

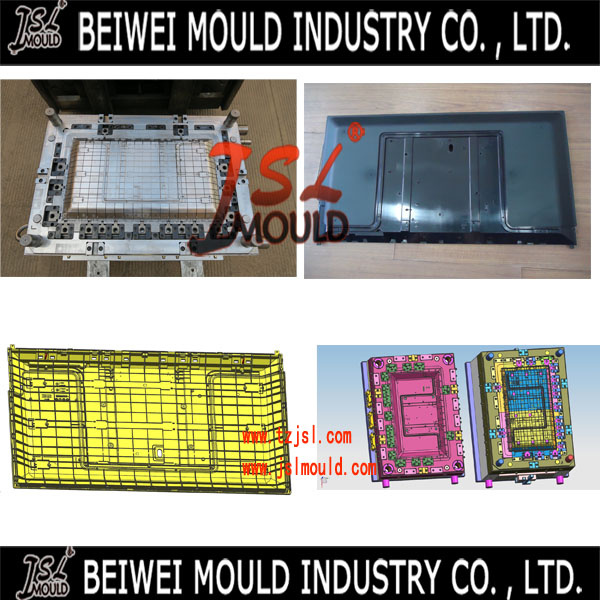

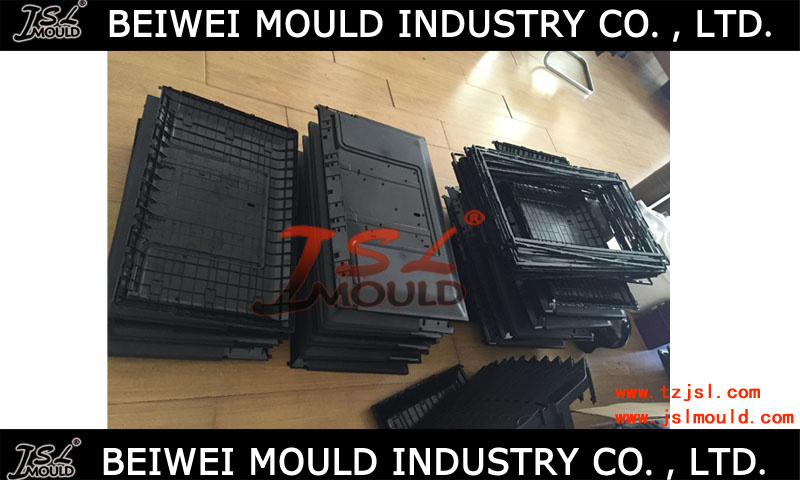

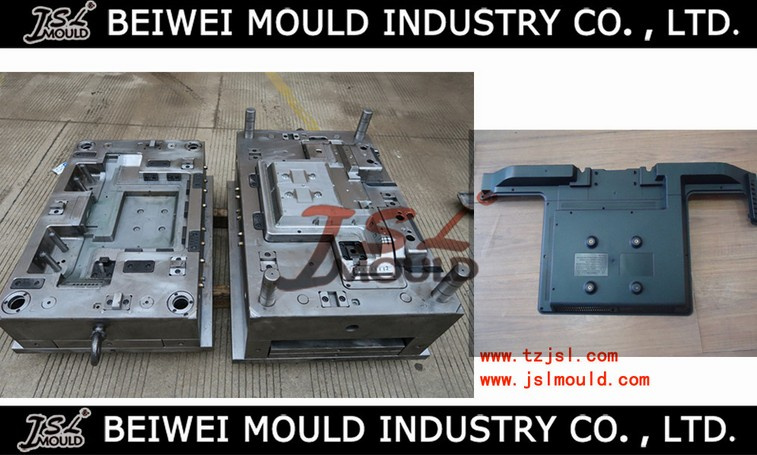

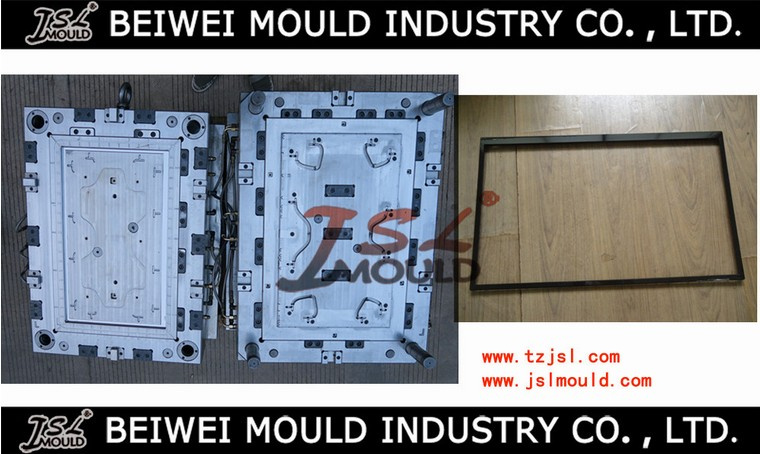

2015 Hot Plastic TV back cover mold
1. Long life
2. Short delivery time
3. Best machining
4. Good after-service
Provide mould core & cavity steel certificate
Provide mould trial video and good after-service.
JSL Mould Quality Control
For the Q/C of mould, there are 3 steps:
1. Mould Material Q/C
- Mould Steel Checking(Hardness, flaw detection)
- Mould Standard Spare Parts Checking(hardness, size, flaw checking)
2. Mould Making Process Q/C
- design checking (part design, mould design, mould engineering drawing)
- checking each part of mould's size after machining, according to 2D drawing
- mould testing(check mould running condition)
3. Check with customer's requirement again before mould shipping.
| Product Name | 2014 Hot Plastic TV back cover mold |
| Product material | ABS |
| Core& Cavity Steel | 718 |
| Steel hardness: | HRC34-38 |
| Mould Standard | DME |
| Cavity Number | 1*1 |
| Injection System | DIRECT GATE |
| Ejector System | EJECTOR PIN |
| Cycle Time | 60 SECOND/SHOT |
| Tooling lead time | 60 days |
| Mould life | 500, 000 times |
| Quality assurance | ISO9001 |
| |
| Our Advantage | 1. High quality |
| 2. Reasonable price |
| 3. On time delivery |
| 4. Good After-sale service |
| 5. Strict quality control |
| 6. All the mould are automotic. |
| |
| Offer you | In-time response on letters, telephone calls or fax |
| In-time supply the quotation and mould designs |
| In-time communication on the technical points |
| In-time sending pictures for the mould machining progress and mould finishing schedule |
| In-time mould test and sample delivery |
| In-time mould delivery |
| |
| For more information please contact us. |
Beiwei Mould Industry Co., Ltd. is the leading plastic moulds manufacturer in China, Based on the precision tooling, high technology and top mentality mould design. Jsl mould has established the main market in Spain, Brazil, Sweden, Australia, Ireland, U. S. A and etc.
Our products covers Plastic injection molding, Plastic blow molding, BMC/SMC/DMC/GMT glass fiber mold, Plastic injection molded products and Metallic punch products.
We use PRO-E, Solidworks, U. G., and Auto-CAD for moulds and products design, with very strong mould design and drawing reading ability. This ensures the good technical communications with clients, which can avoid any mistake occur.
We have utilized modern equipment such as CNC machining center, EDM machine and EDM wire cutting machine. Modern CAD/CAM/CAE systems, such as those using UG, ProE, Solidworks and Cimatron, are also in place to assure the quality of our molds and molded products.
Our mission is to provide our customers high quality products and services. We aim to exceed our customers' expectations in terms of pricing, quality and on-time delivery.
