| Prod Model: |
sst-4 |
| Mesh Size: |
1-500mesh |
| Usage: |
Chemical Industry |
| Wire Diameter: |
0.025-3.0mm |
| Feature: |
Acid-Resisting |
| Color: |
Silver |
| Delivery Time: |
in General About 10-25 Days |
| Hole Shape: |
Square |
| Application: |
Cages |
| Type: |
Stainless Steel Plain Wire Mesh |
| Material Type: |
Stainless Steel Wire |
| Weave Technique: |
Plain Weave |
| Technique: |
Woven |
| Nickels: |
8% |
| Certification: |
ISO9001 |
| Material: |
SUS302, 304, 304L, 316, 316L |
| Wire Mesh Width: |
0.5-2m |
Product Description
Stainless steel wire materials in SUS302, 304, 316, 304L, 316L.

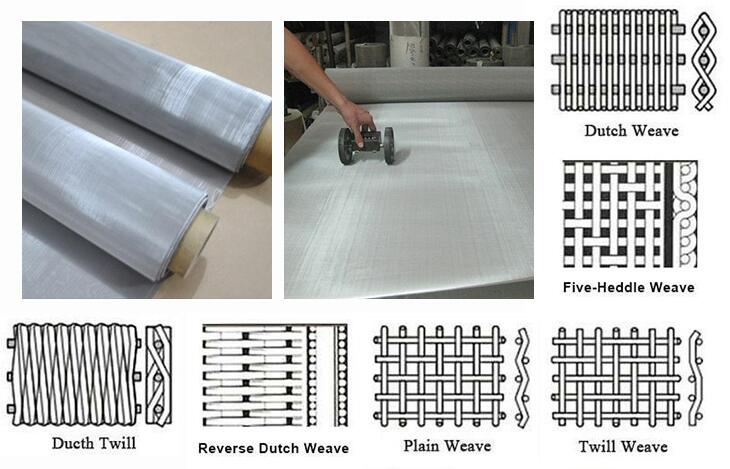

Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, Dutch weave.
General Use of: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc
Mesh size of stainless steel wire mesh: From 3mesh to 600mesh
Want to know more information about stainless steel wire mesh pls contact us.
| Material | SS 201,202,304,304L, 316,316L |
| Woven style | plain,twill,dutch |
| Mesh size | 1-635mesh |
| Standard Length | 100' |
| Width | 3' ,1m 4',5',6',8'----4m |
| Package | In waterproof paper, PVC bag, wooden case, Custom packing available at request. |
| Application | Widely used in petroleum industry, mine industry, chemical fiber industry,
electroplating industry, environment protection etc. |
| Advantage | Stainless Steel Wire Mesh:Wear-resistant, high strength and long service life, unity-structure, not curly, easy to use, acid-resistant , alkali-resistant, corrosion-resistant, heat-resistant |
Specification of stainless steel wire mesh
| Type | Mesh/Inch | Wire diameter (inch) | Open Area | Weight (LB) /100 Square Foot |
| Plain,Twill Weave Wire Mesh | 1 × 1-635 × 635 | 0.0008"-0.08" | 25 to 84.6 | 2.53 to 41.1 |
| Type | Mesh/Inch | Wire diameter (inch) | Absolute Filtration Finess μm | Nominal Filtration Finess μm |
| Plain Dutch Weave Wire Mesh | 8 × 85-80 × 400 | 0.014'' × 0.0126''- 0.0049'' × 0.0028'' | 318-340 to 43-48 | 250-255 to 35-40 |
| Twill Duntch Weave Wire Mesh | 20 × 250 - 500 × 3200 | 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' | 110-120 to 8-9 | 98-105 to 2-3 |

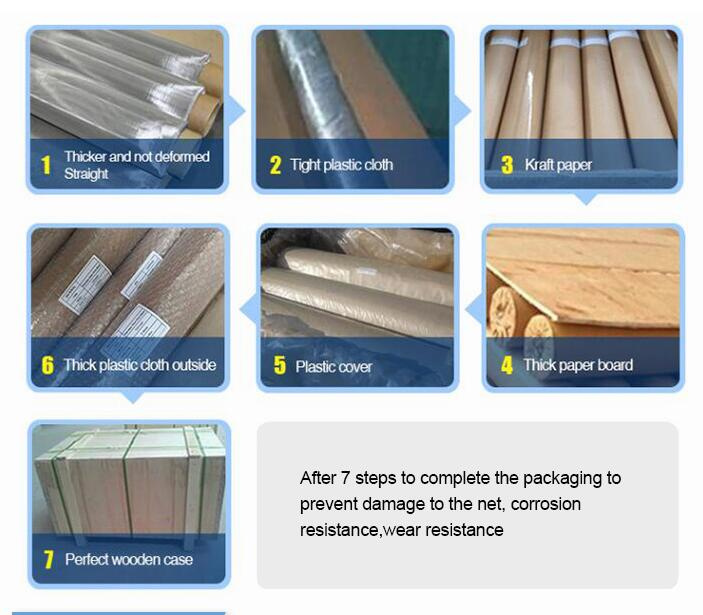

Packing and deliveryStainless steel wire mesh with multi-layer packaging protection, neatly placed in the transport vehicle, so that
products can reach the destination safely.

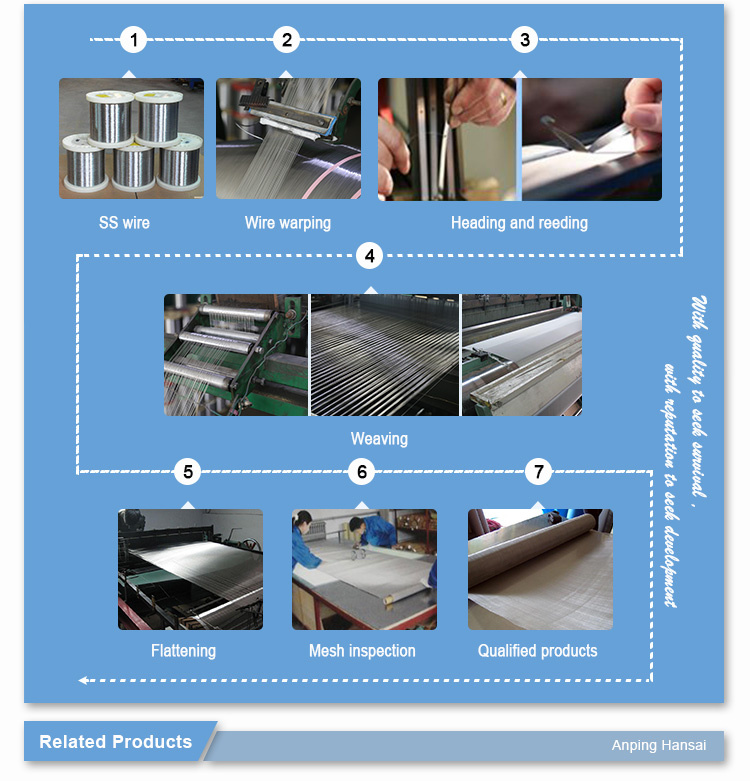

Production Process
Stainless steel wire mesh selection of high-quality stainless steel wire, through the automation of precision and precision mechanical processing after forming, the net surface is smooth and tidy,solid structure evenly.
