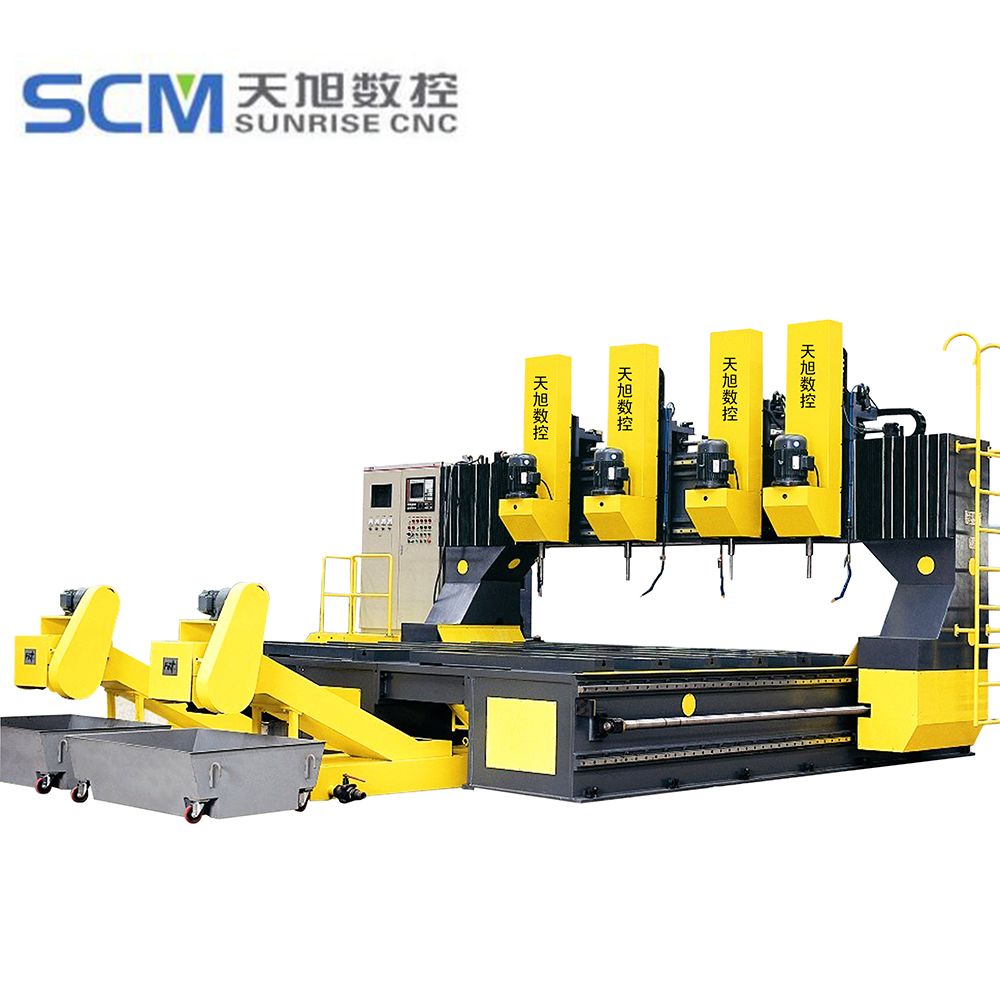

Tpld3025 CNC Gantry Moving Plate Drill Machine
| Price: |
US $ 105000-115000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
TPLD3025 |
| Structure: |
Vertical Drilling Machine |
| Layout: |
Vertical |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Precision: |
High Precision |
Product Description
Applicable Industry: Used for the drilling processing for steel, stainless steel and composite material. It is mainly used for drilling (including blind holes) process of the tube plate, baffle plate in petrochemical machinery, air condenser, heat exchanger etc. and large flange manufacturing, and also for joint plates in building, bridge, iron tower, etc.This equipment consists of lathe bed work table, movable gantry, longitudinal slide carriage, numerical control slide board, drill power box, automatic chip cleaner and circulation cooling system, electrical system etc.Product feature:1. Servo slide drilling unit heads, with the function of drilling holes, reaming, chamfering, milling of groove, can work together, or work separately.2. Automatically find pot to dill holes in X,Y axis. Spindle rotation speed and feed velocity are stepless adjustment.3. T-groove is set on lathe bed, using pressure plate to clamp workpiece.4. Equipped with the edge finder device to find the center of workpiece.5. Programming software based on WINDOWS with CAD, fast and convenient programming, and visual previewing. 6. Automatic chip removal, coolant circulation cooling. 7. Key machinery, hydraulic pressure, electric components all famous brands.8. First choice equipment of tube plate drilling in heat exchange, chemical & mechanical industry.9. Controlled by PLC system; Shown by LCD screen of LENOVO computer.Specifications:| Model | TPLD2020 | TPLD2525 | TPLD3030 |
| Max. workpiece size (mm) | 2000x2000 | 2500x2500 | 3000x3000 |
| Max.thickNess (mm) | 200 |
| Worktable | Width/distance of T slot | 22 |
| Drilling spindle | Quantity | One or more (By customer's request) |
| Max. diameter of drilling | Φ50mm |
| Morse taper of spindle | #4 |
| Rotating speed (rpm) | 120-560 frequency conversion |
| Max.feed stroke (mm) | 350 |
| Feeding speed (mm/min) | 0-4000Stepless adjustment |
| Motor power (kW) | 5.5 |
| Positioning precision | X,Y axis | <=0.1mm/ (full length) |
| Re-positioning precision | X,Y axis | 0.1mm/ (full length) |
| Motor power (kW) | Servo motors | X axis | 2x1.8 kW (Dual drive) |
| Y axis | 1.3 kW |
| Z axis | 0.85 kW |
| Motor of scrap cleaner | 0.75 |
| Motor of cooling pump | 0.43 |
| Type of chip-conveyor | Chain-plate type |
| Quantity of chip-conveyor | 1 |
| Chip-removal speed (m/min) | 1 |
| CNC system | Spain FAGOR8055 CNC system |
| Net weight (Kg) | About 16000 | About 20000 | About 24000 |
| Overall dimensions(L×W×H) (mm) | About 4590×5050×3200 | About 5090×5550×3200 | About 5590×6050×3200 |
| Other models can be made by customers' request. |
Main Components List:| NO. | item | model | Manufacturer |
| Main electric components |
| 1 | CNC system | 8055 | Spain FAGOR |
| 2 | Servo motor | 1.8Kw | Japan YASKAWA |
| | Servo driver | 1.8kW |
| 3 | Servo motor | 1.3kW |
| | Servo driver | 1.3kW |
| 4 | Spindle motor | 7.5kW | Japan SUMITOMO |
| 5 | frequency transducer of spindle | 7.5kW | REXROTH or SIMENS |
| 6 | low-voltage apparatus | | German SIEMENS |
| 7 | Business computer | LCD | Lenovo |
| 8 | Proximity switch | AUTONICS |
| Main hydraulic components |
| 1 | Main magnetic valve | | Italy ATOS |
| Main mechanical parts |
| 1 | ball-screw | | Taiwan HIWIN |
| 2 | Linear guide | X/Y axis | Taiwan HIWIN |
| 3 | Linear guide | Z Axis | Taiwan HIWIN |
Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.Spare Parts List:| No. | Code Name | Name | Quantity | Remark |
| 1 | | Air gun | 1 | |
| 2 | | Tools in Common Use(including:a set of inner hexangular wrench, adjustable wrench, solid wrench) | 1 batch | |
| 3 | Open | Proximity switch | 1 | AUTONICS |
| 4 | Close | Proximity switch | 1 | AUTONICS |
| 5 | 5#-4#, 4#-3#, 3#-2#, 2#-1# | Reducing sleeve | 1 set | |
| 6 | Quick change wrench for drill head | | 1 | |
| 7 | ¢18 | high speed steel handle twist drill | 1 | |
| 8 | ¢60 | high speed steel handle twist drill | 1 | |
| 9 | Connection pole | | 1 | |
| 10 | ¢80 | | 1 | |
| 11 | | Upper computerProgram CD | 1 | |
| 12 | | Standby paint | 2 pail | 1pail for main color and 1pail for warning color |
| 13 | | Quality Certificate,Packing List | 1 each | |
| 14 | | Instruction manual(mechanical part, electric part and hydraulic part) | 2 each | |
