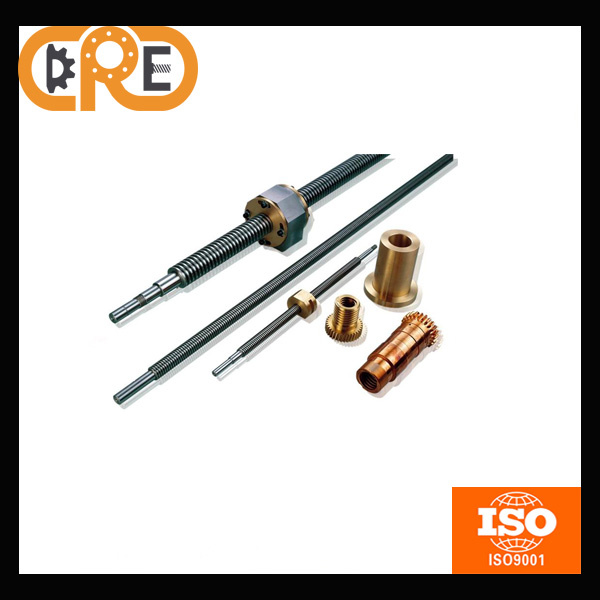

Tr10*2 Acme and Lead Screw for Precision CNC Machines

Name: Tr10*2 Acme and Lead Screw for Precision CNC Machines
Brand: tool-buy.com
SKU: 703567252
Availability: InStock
Rating: 4.5 (54 reviews)

Price:	US $ 5000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Dalian Running Engineering Co., Ltd.

Showroom Product Company Profile

Prod Model:	Tr10*2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing Process:	Milled Thread
Material:	Chrome Steel
Length:	According to Customer's Requirement
Model Number:	Sfu1002
Place Of Origin:	Fujian, China (Mainland)
Product Name:	Grinded/Ground Ball Screw
Precision:	C7, C5, C3
Hardness(HRC):	58-62
Hread Direction:	Left or Right Thread
Pitch:	4, 5, 10, 12, 20, 40, 50, 60 mm
Process Usage:	CNC Non-Conventional Machine Tools
Movement Method:	Linear Control
Control Method:	Semi-Closed Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	High-End CNC Machine Tools
Application:	Steel

Product Description

Introduction

Trapezoidal lead screws and nuts are power transmission screw threads similar to the Acme series but made to metric dimensions and standards.Sometimes misnamed "metric Acme" or "metric M series Acme" Trapezoidal lead screws look like Acme screws and have the same stout thread form and the same robust and durable features as the Acme series.

Feature of lead screw
    1. High efficiency of transferring
    2. Smooth movement
    3. High precision,duration, and reliability
    4. No gap and preloading
    5. Produced using auto turning CNC machines
    6. Precision ball screws
    7. Low friction
    8. Durable design

9. High-speed operation

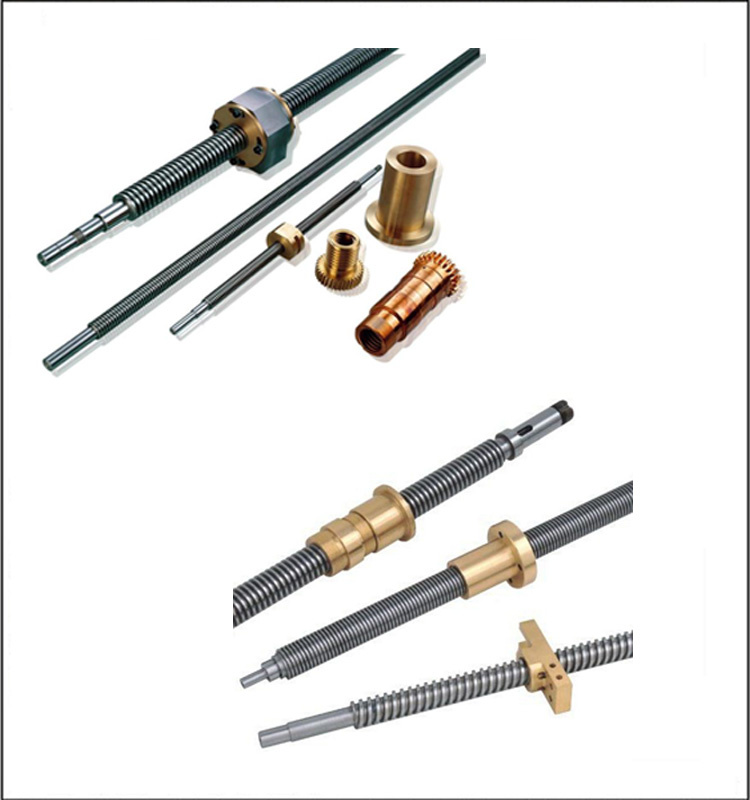

DRE Acme and lead Screw Show

DRE Acme and lead Screw Specification

Model No.	Pitch	d		d2		d3		Pitch error (mm/300mm)	Straightness (mm/300mm)
Model No.	Pitch	Max	Min	Max	Min	Max	Min	Pitch error (mm/300mm)	Straightness (mm/300mm)
Tr8x1.5	1.5	8	7.85	7.18	7.01	6.29	5.92	0.2	0.3
Tr10x1.5	1.5	10	9.85	9.18	9.01	8.2	7.92	0.2	0.3
Tr10x2	2		9.82	8.93	8.74	7.5	6.89	0.2	0.3
Tr10x3	3		9.8	8.42	8.19	6.5	6.15	0.2	0.3
Tr10x4	2		9.82	8.93	8.74	7.5	6.89	0.3	0.3
Tr12x2	2	12	11.82	10.93	9.84	9.58	8.89	0.2	0.3
Tr12x3	3		11.76	10.42	10.19	8.5	7.69	0.2	0.3
Tr12x6	3		11.76	10.42	10.19	8.5	7.69	0.3	0.3
Tr14x2	2	14	13.82	12.93	12.73	11.5	11.18	0.2	0.3
Tr14x3	3		13.76	12.42	12.19	10.5	10.07	0.2	0.3
Tr14x4	4		13.8	11.91	11.64	9.5	8.8	0.2	0.3
Tr14x6	3		13.76	12.42	12.16	10.5	9.68	0.3	0.3
Tr16x2	2	16	15.82	14.93	14.73	13.5	13.12	0.1	0.3
Tr16x4	4		15.7	13.91	13.64	11.5	10.47	0.1	0.3
Tr16x8	4		15.7	13.91	13.61	11.5	10.47	0.2	0.3
Tr18x2	2	18	17.82	16.93	16.73	15.5	15.12	0.1	0.3
Tr18x4	4		17.7	15.91	15.64	13.5	12.47	0.1	0.3
Tr18x8	4		17.43	15.91	15.61	13.5	12.47	0.2	0.3
Tr20x2	2	20	19.82	18.93	18.73	17.5	17.18	0.1	0.3
Tr20x4	4		19.7	17.91	17.64	15.5	14.47	0.1	0.3
Tr20x8	4		19.7	17.9	17.61	15.5	14.47	0.2	0.3
Tr22x3	3	22	21.76	20.41	20.19	18.5	18.14	0.1	0.2
Tr22x5	5		21.66	19.39	19.11	16.5	15.29	0.1	0.2
Tr22x8	4		21.7	19.9	19.61	17.5	16.47	0.2	0.2
Tr22x10	5		21.66	19.39	19.08	16.5	15.29	0.2	0.2
Tr24x3	3	24	23.76	22.41	22.17	20.5	20.14	0.1	0.2
Tr24x5	5		23.66	21.39	21.09	18.5	17.27	0.1	0.2
Tr24x10	5		23.66	21.39	21.06	18.5	17.27	0.2	0.2
Tr26x3	3	26	25.76	24.41	24.17	22.5	20.14	0.1	0.2
Tr26x5	5		25.67	23.39	23.09	20.5	19.27	0.1	0.2
Tr26x8	4		25.5	21.87	21.49	17	16.4	0.1	0.2
Tr26x10	5		25.67	23.39	23.09	20.5	19.27	0.2	0.2
Tr28x3	5	28	27.76	26.41	26.17	24.5	24.1	0.1	0.2
Tr28x5	5		27.67	25.39	25.09	22.5	21.27	0.1	0.2
Tr28x10	5		27.67	25.39	25.06	22.5	21.27	0.2	0.2
Tr30x3	3	30	29.76	28.41	28.17	26.5	26.4	0.1	0.2
Tr30x6	6		29.63	26.88	26.55	23	21.56	0.2	0.2
Tr32x12	6		29.63	26.88	26.51	23	21.56	0.1	0.2
Tr32x3	3	32	31.76	30.5	30.25	28.5	28.1	0.1	0.2
Tr32x5	5		31.67	29.39	29.09	26.5	25.27	0.1	0.2
Tr32x6	6		31.63	28.88	28.55	25	23.56	0.1	0.2
Tr32x12	6		31.63	28.88	28.51	25	23.56	0.2	0.2
Tr36x6	6	36	35.63	32.88	32.55	29	27.56	0.1	0.2
Tr36x12	6	36	35.63	32.88	32.51	29	27.56	0.2	0.2
Tr40x7	7	40	39.58	36.38	36.02	32	30.38	0.1	0.2
Tr40x14	7	40	39.58	36.38	35.98	32	30.38	0.2	0.2
Tr44x7	7	44	43.57	40.37	40.02	36	34.38	0.1	0.2
Tr44x12	12		43.4	37.84	37.42	31	30.18	0.1	0.2
Tr44x14	7		43.57	40.37	39.98	36	34.38	0.2	0.2
Tr50x8	8	50	49.55	45.87	45.47	41	39.17	0.1	0.2
Tr50x12	12	50	49.4	43.84	43.37	37	36.25	0.1	0.2
Tr55x9	9	55	54.5	55.36	49.94	45	42.98	0.1	0.2
Tr55x14	14	55	54.33	47.82	47.32	39	38.2	0.1	0.2
Tr60x9	9	60	59.5	55.36	54.94	50	47.98	0.1	0.2
Tr60x14	14	60	59.33	52.82	52.32	44	43.2	0.1	0.2
Tr70x10	10	70	69.47	64.85	64.43	59	56.82	0.1	0.4
Tr70x16	16	70	69.29	61.81	61.28	52	51.15	0.1	0.4
Tr80x10	10	80	79.47	74.85	74.43	69	66.82	0.1	0.4
Tr80x16	16	80	79.29	71.81	71.28	62	61.15	0.1	0.4
Tr90x12	12	90	89.4	83.84	83.37	77	74.45	0.1	0.5
Tr90x18	18	90	89.2	80.8	80.24	70	69.1	0.1	0.5
Tr95x12	12	95	94.4	88.84	88.34	82	81.22	0.1	0.5
Tr95x16	16		94.3	88.84	86.25	77	73.71	0.1	1
Tr95x18	18		94.2	85.8	85.2	75	74.05	0.1	1
Tr100x12	12	100	99.4	93.84	93.34	87	86.22	0.1	1
Tr100x16	16		99.29	91.81	91.25	82	78.71	0.1	1
Tr100x20	20		99.15	89.79	89.19	78	77.01	0.1	1
Tr120x14	14	120	119.33	112.82	112.29	104	103.16	0.1	1
Tr120x16	16		119.29	111.81	111.25	102	98.71	0.1	1
Tr120x22	22		119.1	108.78	108.15	96	94.99	0.1	1

DRE Customer Reference

Our Service

Winthin 24 hours reply
Professional exporting handling
Professional bearings knowledge
Custom service
OEM service
Stock service
Kinds of payment terms
Technical Supports
Sample available
Warranty:12months
Any shipping method

Contact Info:

Fiona He
Export Sales
DRE Engineering Co., Ltd

Tel: 0086-411-84618155
Fax: 0086-411-84633077
Mobile: 0086-18840873965

Web:www.dlrtr.com

Dalian Running Engineering Company Limited was established in 2007. We supply excellent products and services to every user. We supply kinds of machinery parts to many fields all over the world. We are specialized in slewing bearings, slew drive, gears, medium and large size bearings, precision bearings, linear guides, ball screws, other construction machinery parts and mining machinery. Product range is very wide according to customers' requirements. We possess very professionally in controlling the quality of our product. Since we have very strong abilities both in design and technical analysis, we can provide our customers with exact, suitable, economic products as well as technical services. We've built up good relationships with our customers all over the world, especially in Europe and the USA. Our products are widely used in metallurgy, mining, oil, chemistry, light industry, aviation, harbor/quay, vessels, military industry, instruments and meters, etc.

Our goal is to supply customers high quality, suitable products, professional and prompt services to ensure your machines keep running!

DRE with Reasonable price, Timely delivery, Responsible quality.

DRE- Keep Running!
