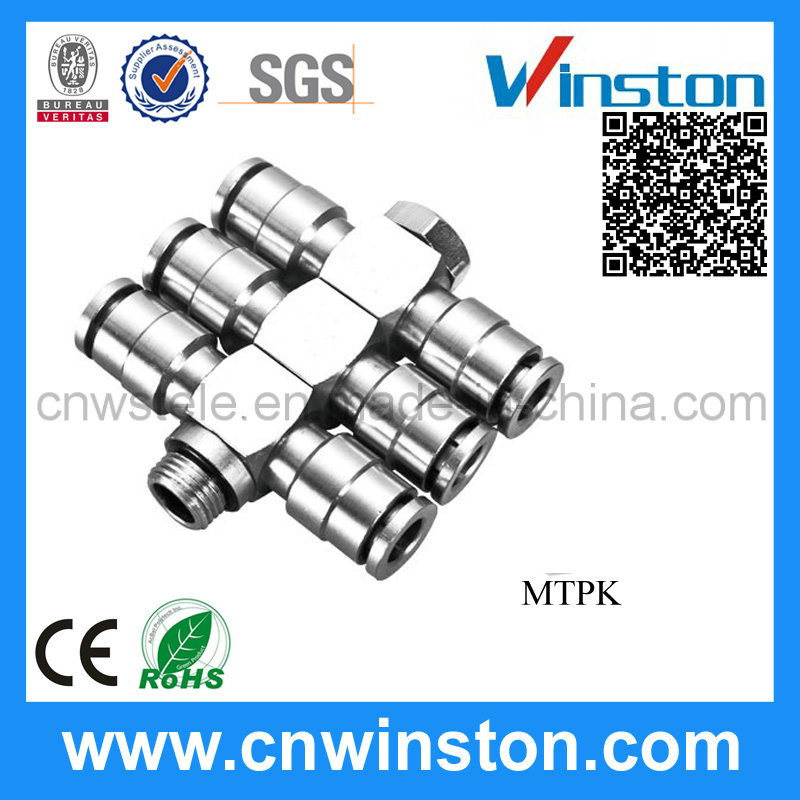

Triple Male Brass Hardware Fitting with CE

Triple Male Brass Hardware Fitting with CE
Price: US $ 1.6-2.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 100/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: MTPK, MTPK-G
Markets: North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Brand: Winston
Pressure Tube To Connect: 0.8-16bar(See Tube)PU, PE, Nylon 6-11-12
Fluid: Compressed Air
Operating Temperature: 0 - 60 °c
Color: Depends on Customer
O-Ring: NBR (Buna-N)
Quality Guarantee: 2 Years
Protect Feature: Sealed
Manufacturer: OEM
Conditon: Original New
Connection: Male
Standard: 32*25*31, 32*25*21.5
Material: Copper, Brass
Head Type: Round Use Tube

Product Description

Specifications

Metal pneumatic fitting
1.Quick installation,simple and flexible,space-saving
2.Wide variety of models to meet you need

Metal pneumatic fitting

1.Convenient One-Touch fittings provide instant tubing connections
2.Elliptical release ring facilitates pneumatic installations in confined spaces
3.Light manual pressure on the elliptical release ring is all that is required to instantly 4.disconnect each tube - No special tools required
5.Nickel plated brass threaded bodies and housings provide corrosion and contamination resistance
6.All NPT & R (BSPT) threads are pre-coated with Teflon sealant and require no additional sealing
7.Inch system fittings: Tube sizes are inches, threads are UNF or NPT
8.Metric system fittings: Tube sizes are in millimeters, threads are M or R(PT, BSPT)
9.G-thread fittings: Tube sizes are in millimeters

 Specifications

Material Body & Collet - Nickel-plated brass
O-Ring - NBR
Threads NPT, BSPT, BSPP, Metric Threads
Pressure 110~230PSI
0.8~16KgF/cm2(80~1600KPa)
Fluid Compressed Air
Temperature 14° F to 140° F
-10° C to 60° C



Tube(Metric)-Thread(R)Tube(Inch)-Thread(R)Tube(Inch)-Thread(NPT)
Part øD(mm)T(BSPT)Part øD(inch)T(BSPT)Part øD(inch)T(NPT)
MTPK4-M54M5MTPK1/8-011/8R1/8MTPK1/8-U101/8U10
MTPK4-014R1/8MTPK1/8-021/8R1/4MTPK1/8-N011/8N1/8
MTPK4-024R1/4MTPK5/32-015/32R1/8MTPK1/8-N021/8N1/4
MTPK5-M55M5MTPK5/32-025/32R1/4MTPK5/32-U105/32U10
MTPK5-015R1/8MTPK3/16-013/16R1/8MTPK5/32-N015/32N1/8
MTPK5-025R1/4MTPK3/16-023/16R1/4MTPK5/32-N025/32N1/4
MTPK6-M56M5MTPK3/16-033/16R3/8MTPK3/16-U103/16U10
MTPK6-016R1/8MTPK1/4-011/4R1/8MTPK3/16-N013/16N1/8
MTPK6-026R1/4MTPK1/4-021/4R1/4MTPK3/16-N023/16N1/4
MTPK8-018R1/8MTPK1/4-031/4R3/8MTPK1/4-U101/4U10
MTPK8-028R1/4MTPK5/16-015/16R1/8MTPK1/4-N011/4N1/8
MTPK8-038R3/8MTPK5/16-025/16R1/4MTPK1/4-N021/4N1/4
MTPK10-0210R1/4MTPK5/16-035/16R3/8MTPK1/4-N031/4N3/8
MTPK10-0310R3/8MTPK5/16-045/16R1/2MTPK5/16-N015/16N1/8
MTPK10-0410R1/2MTPK3/8-013/8R1/8MTPK5/16-N025/16N1/4
MTPK12-0212R1/4MTPK3/8-023/8R1/4MTPK5/16-N035/16N3/8
MTPK12-0312R3/8MTPK3/8-033/8R3/8MTPK3/8-N023/8N1/4
MTPK12-0412R1/2MTPK3/8-043/8R1/2MTPK3/8-N033/8N3/8
MTPK14-0314R3/8MTPK1/2-021/2R1/4MTPK3/8-N043/8N1/2
MTPK14-0414R1/2MTPK1/2-031/2R3/8MTPK1/2-N021/2N1/4
MTPK16-0316R3/8MTPK1/2-041/2R1/2MTPK1/2-N031/2N3/8
MTPK16-0416R1/2


MTPK1/2-N041/2N1/2





Tube(Metric)-Thread(G)
Part øD(mm)T(BSPP)
MTPK04-G014G1/8
MTPK04-G024G1/4
MTPK05-G015G1/8
MTPK05-G025G1/4
MTPK06-G016G1/8
MTPK06-G026G1/4
MTPK08-G018G1/8
MTPK08-G028G1/4
MTPK08-G038G3/8
MTPK08-G048G1/2
MTPK10-G0110G1/8
MTPK10-G0210G1/4
MTPK10-G0310G3/8
MTPK10-G0410G1/2
MTPK12-G0112G1/8
MTPK12-G0212G1/4
MTPK12-G0312G3/8
MTPK12-G0412G1/2
MTPK14-G0314G3/8
MTPK14-G0414G1/2
MTPK16-G0316G3/8
MTPK16-G0416G1/2




 Material of Construction:

Plastic BodyPBT (Polybutylene terephthalate)
Metal BodyNickel Plated Brass or Brass
Release Button POM (Poly oxy methylene copolymer)
Grip RingStainless Steel
Thread Sealant
Teflon

O-Ring
NBR (Buna-N)

Specifications:


Material
Body and collet:Nickel-plated Brass
O-ring:NBR(other material is available on request)
ThreadsBSPT,BSPP,NPT,Metric threads
Pressure
Tube to connect
0.8-16bar(see tube)
PU,PE,Nylon 6-11-12
FluidCompressed air
Temperature-10-60(see data of used tubing)
