Product Description

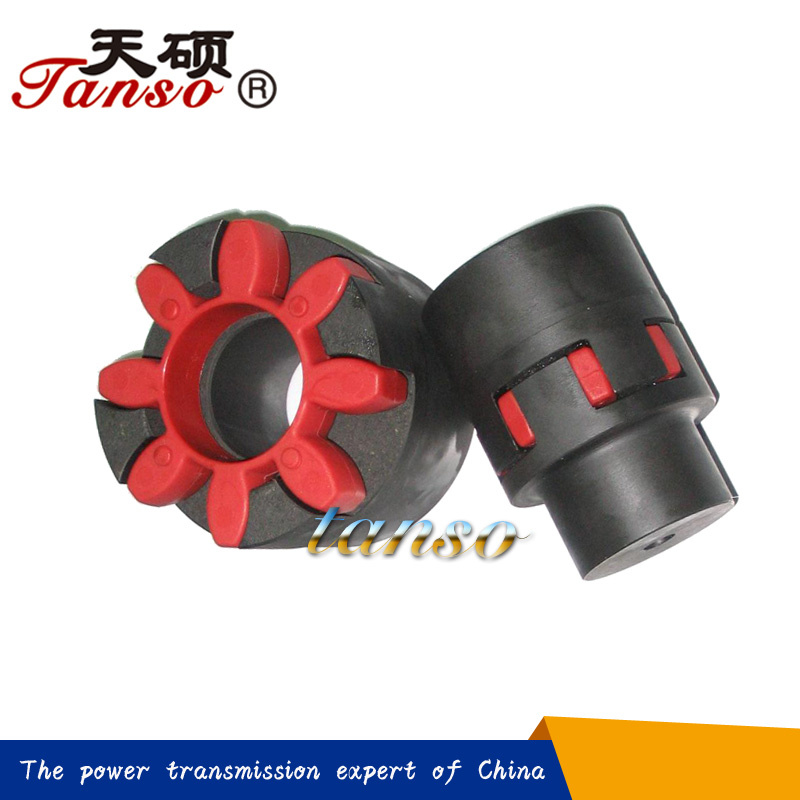

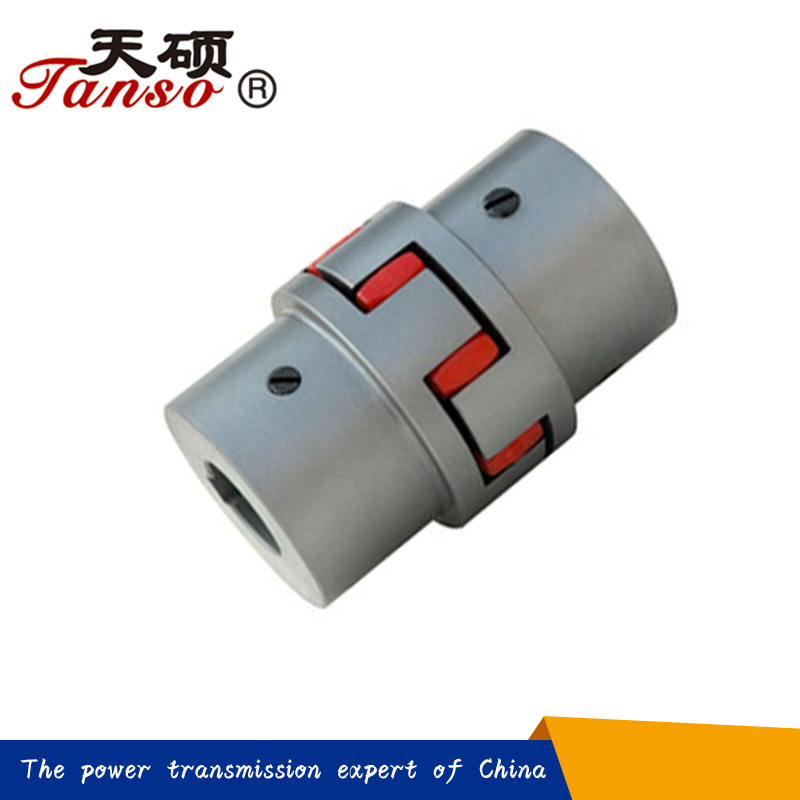

A jaw coupling is a type of general purpose power transmission coupling that also can be used in motion control (servo) applications. It is designed to transmit torque (by connecting two shafts) while damping system vibrations and accommodating misalignment, which protects other components from damage. Jaw couplings are composed of three parts: two metallic hubs and an elastomer insert called an element, but commonly referred to as a "spider". The three parts press fit together with a jaw from each hub fitted alternately with the lobes of the spider. Jaw coupling torque is transmitted through the elastomer lobes in compression.
Features of TS-A flexible jaw coupling:
1.Compact structure and small inertia
2.Absorb vibration
3.Operating temperature 35-80oC
4.It will not deform when overload,and no maintenance
| Type | Nominal torque
N.m | Max Speed
rpm | Bore diameter

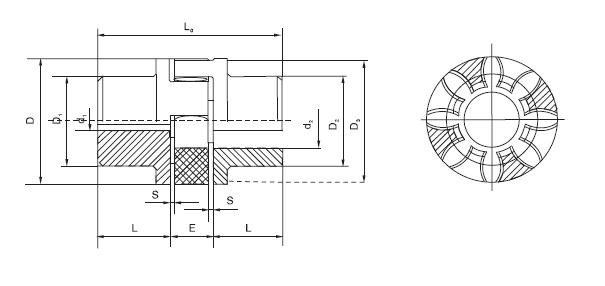

mm | D mm | D1 mm | D2 mm | D3 mm | E mm | S mm | L1(L2)mm | L3(L4)mm |
| TS24 | 35 | 14000 | 8--24 | 55 | 36 | 40 | 55 | 18 | 2 | 30 | 30.5 |
| TS28 | 95 | 11800 | 8--28 | 65 | 42 | 48 | 65 | 20 | 2.5 | 35 | 35.5 |
| TS38 | 190 | 9500 | 10-38 | 80 | 52 | 66 | 78 | 24 | 3 | 45 | 45.5 |
| TS42 | 265 | 8000 | 10-42 | 95 | 62 | 75 | 94 | 26 | 3 | 50 | 51 |
| TS48 | 310 | 7100 | 10-48 | 105 | 70 | 85 | 104 | 28 | 3.5 | 56 | 57 |
| TS55 | 410 | 6300 | 15-55 | 120 | 80 | 98 | 118 | 30 | 4 | 65 | 66 |
| TS65 | 625 | 5600 | 15-65 | 135 | 94 | 115 | 134 | 35 | 4.5 | 75 | 76 |
| TS75 | 1280 | 4750 | 20-75 | 160 | 108 | 135 | 158 | 40 | 5 | 85 | 86.5 |
| TS90 | 2400 | 3750 | 30-90 | 200 | 142 | 160 | 180 | 45 | 5.5 | 100 | 101.5 |
| TS100 | 3300 | 3350 | 30-115 | 225 | 158 | 180 | 200 | 50 | 6 | 110 | 111.5 |

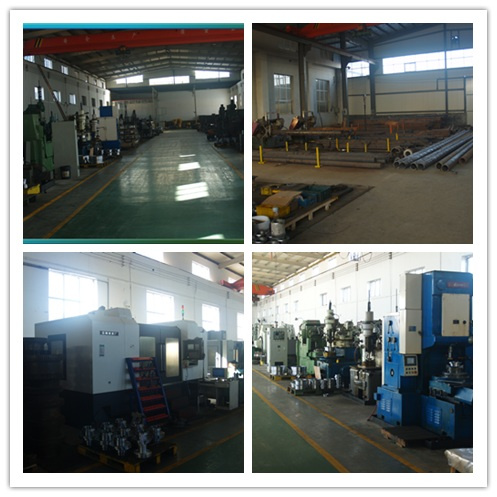

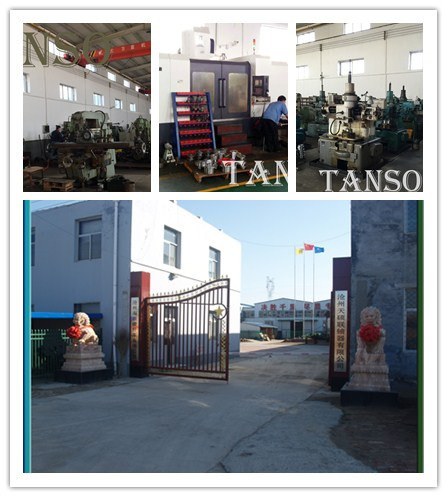

Cangzhou Tanso Couplings Co., Ltd. (the former Botou Tianshuo Couplings Factory) specializes in the research and production of expansion coupling sleeve, mechanical drives and mechanical seals. Thanks to our years of experience in research and development of couplings, and favorable conditions and dominant advantages in research and development of high-precision products and mass production, the company can meet customers' demands. The company has passed the certification of ISO9001-2000 Quality Management System, and realized CAD computer aided design and information management, integrating research, development and manufacturing. The company boasts its rich manufacturing experience, strong technical force, complete testing meanings, complete range of specifications and stable and reliable quality. Since its establishment, the company has sold its products throughout China, winning wide appreciation from customers. Based on credit principle, the company has established long-term cooperative relationships with a number of customers. At present, the company, by further strengthening staff training, improving technology level and injecting high-tech contents into products, strives to offer products of top quality and preferential prices.
Our main products include rubber tire couplings, roller chain couplings, safety couplings, diaphragm couplings, drum gear couplings, star-shaped flexible coupling, rubber-cushioned sleeve pin coupling, oldham coupling, plum-shaped flexible coupling, roller chain couplings, flexible pin coupling, flexible pin gear coupling, and so on. In order to meet customers' demands, we, with rich experience, also undertake the plotting and manufacturing of other types of couplings. Under the tenet of "Develop by Technology, Survive by Quality, Benefit by Customers", the company makes all efforts to provide customers with quality products and satisfactory service through advanced production management and strict quality requirements".
