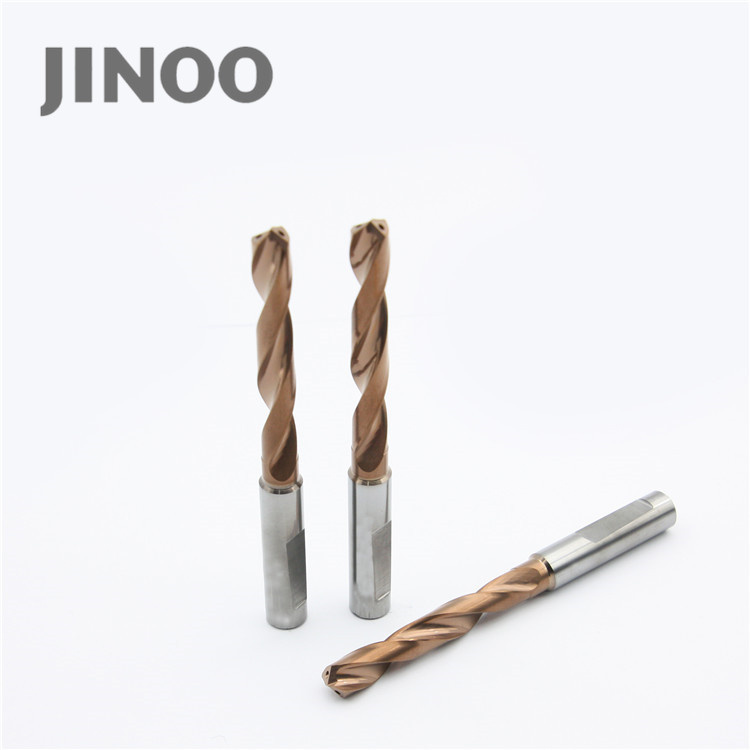

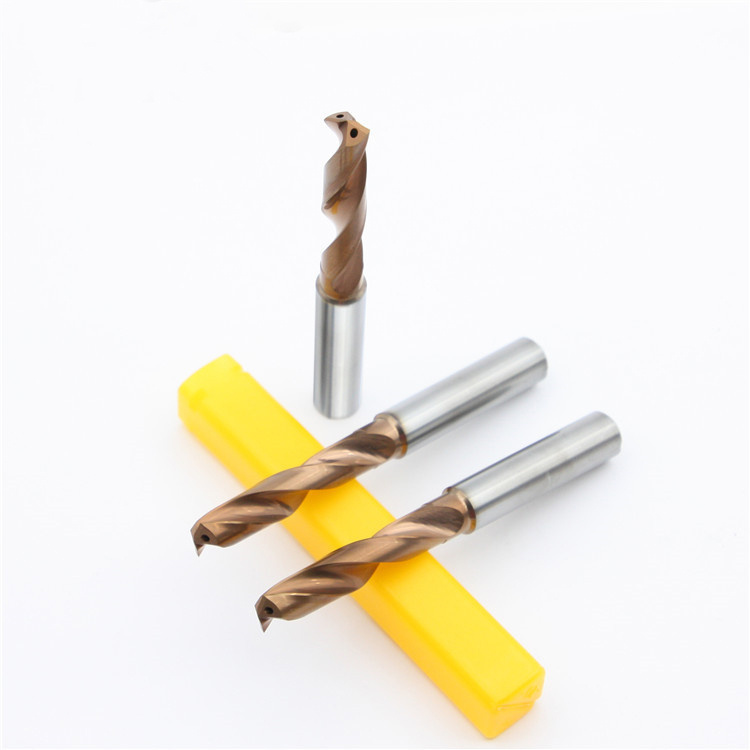

Tungsten Carbide 2 Flute Drill Bits for Hardened Steel
| Price: |
US $ 2.3-3.8/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
D1102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Carbide Flute Drill Bits for Hardened Steel |
| Grain: |
0.4um |
| Precision: |
High Precision |
| HRC: |
45-65 |
| Hra: |
92 |
| Flute Diameter: |
1-20mm |
| Cutting Length: |
4-50mm |
| Over Lengtn: |
50-100mm |
| Brand: |
Jinoo |
Product Description
Product feature introduced:
Item: 30 degree spiral angle
. Materials: 100% Raw Material
. Composition: 88% Carbide, 12% Co
. Micro grain: 0.4um
. Hardness of Rod Material (HRA): 91-94
. Bending strength: 4200
. Types: Drill bits for drilling metal
. Flute No.: 2flutes
. Free Service: OEM
. Applications: Good wear resistance, suitable for alloy, cast iron, copper, common mould steel
Advantage of drill bits for drilling metal
1. Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness, high -wearing feature.
2. Reduce the rudding coefficient & save the processing time, Specializing in high speed cutting of CNC drilling machine and dry-type process machining.
3. The shank can be customized according to customers' requirements.
4. We supply different type of drills bits, such as twist drills, center drills, spot drills, coolant drill bits. | SPECIFICATIONS: |
| PRODUCT NAME | Specification(mm) |
|
Cutting
Diameter(D1) | Cutting
Length(L1) | Shank
Diameter(D) | Overall
Length(L) | Item Code |
|
Solid Carbide
Twist Drill 3XD | 3.0-3.7 | 6 | 20 | 62 | Coating |
| 3.8-4.7 | 6 | 24 | 66 | Coating |
| 4.8-6.0 | 6 | 24 | 66 | Coating |
| 6.1-7.0 | 8 | 34 | 79 | Coating |
| 7.1-8.0 | 8 | 41 | 79 | Coating |
| 8.1-10.0 | 10 | 47 | 89 | Coating |
| 10.1-12.0 | 12 | 55 | 102 | Coating |
| 12.1-14.0 | 14 | 60 | 107 | Coating |
| 14.1-16.0 | 16 | 65 | 115 | Coating |
| 16.1-18.0 | 18 | 73 | 123 | Coating |
| 18.1-20.0 | 20 | 79 | 131 | Coating |
Coolant-fed
Solid Carbide
Twist Drill 3XD | 3.0-3.7 | 6 | 20 | 62 | Coating |
| 3.8-4.7 | 6 | 24 | 66 | Coating |
| 4.8-6.0 | 6 | 28 | 66 | Coating |
| 6.1-7.0 | 8 | 34 | 79 | Coating |
| 7.1-8.0 | 8 | 41 | 79 | Coating |
| 8.1-10.0 | 10 | 47 | 89 | Coating |
| 10.1-12.0 | 12 | 55 | 102 | Coating |
| 12.1-14.0 | 14 | 60 | 107 | Coating |
| 14.1-16.0 | 16 | 65 | 115 | Coating |
| 16.1-18.0 | 18 | 73 | 123 | Coating |
| 18.1-20.0 | 20 | 79 | 131 | Coating |
Solid Carbide
Twist Drill 5XD | 3.0-3.7 | 6 | 28 | 66 | Coating |
| 3.8-4.7 | 6 | 36 | 74 | Coating |
| 4.8-6.0 | 6 | 44 | 82 | Coating |
| 6.1-8.0 | 8 | 53 | 91 | Coating |
| 8.1-10.0 | 10 | 61 | 103 | Coating |
| 10.1-12.0 | 12 | 71 | 118 | Coating |
| 12.1-14.0 | 14 | 77 | 124 | Coating |
| 14.1-16.0 | 16 | 83 | 133 | Coating |
| 16.1-18.0 | 18 | 93 | 143 | Coating |
| 18.1-20.0 | 20 | 101 | 153 | Coating |
Coolant-fed
Solid Carbide
Twist Drill 5XD | 3.0-3.7 | 6 | 28 | 66 | Coating |
| 3.8-4.7 | 6 | 36 | 74 | Coating |
| 4.8-6.0 | 6 | 44 | 82 | Coating |
| 6.1-8.0 | 8 | 53 | 91 | Coating |
| 8.1-10.0 | 10 | 61 | 103 | Coating |
| 10.1-12.0 | 12 | 71 | 118 | Coating |
| 12.1-14.0 | 14 | 77 | 124 | Coating |
| 14.1-16.0 | 16 | 83 | 133 | Coating |
| 16.1-18.0 | 18 | 93 | 143 | Coating |
| 18.1-20.0 | 20 | 101 | 153 | Coating |
Coolant-fed
Solid Carbide
Twist Drill 8XD | 3.0-3.7 | 6 | 34 | 72 | Coating |
| 3.8-4.7 | 6 | 43 | 81 | Coating |
| 4.8-6.0 | 6 | 57 | 95 | Coating |
| 6.1-8.0 | 8 | 76 | 114 | Coating |
| 8.1-10.0 | 10 | 95 | 142 | Coating |
| 10.1-12.0 | 12 | 114 | 162 | Coating |
| 12.1-14.0 | 14 | 133 | 182 | Coating |
| 14.1-16.0 | 16 | 152 | 203 | Coating |
| 16.1-18.0 | 18 | 171 | 222 | Coating |
| 18.1-20.0 | 20 | 190 | 243 | Coating |
WHY CHOOSE US
We established the fabrication system by CNC Grinding Machine from WALTER Maschinenbau GmbH which supports us to provide high precision tools with international standard for our customers.
INTRODUCTION
Changzhou Jingnuo Tools Co.,Ltd,Was located in "Township of Chinese Tools"Changzhou City of Jiangsu Province in China.5Km away from Changzhou airport and 3Km away from the expressway between Shanghai and Nanjing . Our company was founded in 2006,is a design,development,production,sales of High-End carbide cutting tools manufacturer.Specializing in carbide drilling tools and non-standard tools.Accept OEM&ODM.Passed ISO9001,SGS certifications.We offer the products for the major industrial field, such as automobile,motorcycle engine,machinery,electronics,Medical technology,mould,furniture & aviation and space etc. For our quality and service to support more industries. Our company was continued to import international advanced technology and equipment,relying on the talent advantages,to create Chinese tools' leading brand.Company employ 50people,10 of them are highly-skilled technician(more than 10 years experiences),12 of them are intermediate technician(more than 6 years experiences). We established the fabrication facilities by " WALTER" CNC Grinding Machines which supports us service for more precision product to customers. Imported 16 sets 5-AXIS CNC machine : 10 sets "Walter Power & Vision" from Germany, specializing in manufacture various kinds of large diameter tools; 6 sets "Walter Micro"from Germany,specializing in manufacture Micro diameter tools;1set "Rollomatic NP5"high precision grinding machine from Switzerland; 1set "ANCA MX5" from Australian,has online detection,specializing in high precision carbide drilling tools and non-standard tools.It can be achieved 300000pcs one month.And we have complete inspection quality control system:imported 3sets Parlec from American,1set Measuring Equipment "Zoller Genius 3",2sets Mitutoyo Laser Scan Micrometer Equipment, 1set Seven Ocean Equipment,1set PG1000 testing the point of drill bit.so we can provide high precision solution program to customer's requirement . Sales market covering nationwide provinces and cities ,we supply our product to United States, Europe, America, Southeast Asia, the Middle East more than 40 countries,with excellent quality and service,we received a high degree of recognition from customers at home and abroad .
We normally will dispatch your order within 2-10 working days depends on stock level, as soon as the order is shipped, we will list the tracking number on your order detail page, if there is any problem regarding to the shipping, please feel free to contact us. Below shows the estimate delivery time for different courier:
- DHL: 3-4 working days
- FedEx: 3-4 working days
- UPS: 3-4 working days
1. Are you manufacturer? Do you have factory?
We are Professional manufacturer ,we have more than 15 years experience in this field.
2. What machine you use?
You can see Walter & ANCA &Michael Deckel& Rollomatic will be arrive warehouse at October grinding machines in our factory, also have Zoller detection machine &PG1000 Checking machine from USA
3. Is free shipping possible?
We don't offer free shipping service, but we will give you some discount if you buy large quantity products.
4. Can you send products to our Forwarder in China?
Yes, if you have forwarder in China, i will glad to send products to him/her.
5. Do you make OEM?
Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.
6. How about the delivery time?
According to the sizes and quantity, delivery time is different. Usually 5~10 days. We can tell you exact inventory state if you need.
7. Do you attend International Exhibition?
Yes, we had attended exhibitions in Germany(EMO),Indonesia, Malaysia ,Russia,India,Thailand,Vietnam,Taiwan, etc. 8. Can you produce Special carbide Tools ? Yes We can. According your drawing and sample .
Our factory is located at Xixiashu Town outside the West Gate of the Changzhou Wall to the Changzhou city, 5km distant to the airport to the Changzhou city, 3km distant to express highway between Shanghai city and Nanjing city and has the traffic facilities.
Our factory has imported several such as 5-axe numerical control grinder, from Walter of Germany. Use international high quality material. The quality of cutting tool reaches to international advanced level. The factory will provide the customer with high precision standard and nonstandard cutters. The solid carbide alloy cutlery, such as the drills, the milling cutters, the reamers, the boring cutters and the cuttersti process the holes are manufactured in the factory. And all sorts of the cutters whose mmanufacturing processes are very difficult. Can be designed and manufactured, the stainless steel wire. The cutters made in our factory are used to process the alloy steel, the stainless steel, the cast steel, the harden steel, ya suo ji, the nonferrous metals^etc.
The factory which manufactures the automobiles, the motorcycle engines, the carbuators and the mould industry are supplied with all sorts of the cutters made by our factory. The cutters made in our factory are mainly used in the processing centers to process the numerical control machine tools, the special machine and the high quality machine tool.
