| Prod Model: |
carbide saw blades |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Carbide Saw Blades |
| Cer: |
ISO9001 SGS |
| Performance: |
Excellent Wear Resistance |
| Usage: |
General High Speed Cutting |
| Material: |
100% Raw Material |
| Business Type: |
Manufacturer |
| Advantage: |
Over 20 Years Experience in This Line |
| Saw Type: |
Circular Saw |
| Application: |
Metal Saw |
| Type: |
Portable |
| Power Source: |
Electricity |
| Brand: |
Lihua |
Product Description
Tungsten Carbide Saw Blades
Solid tungsten carbide saw blade series SPT-VC are used to score the surface of PCB, yielding a stabilized burr-free V-like groove(30°45°60°90°etc) Afterwards the board can be broken out from the panel.
Advantage: A high hardness, high corrosion resistance, high wear resistance, long service life and improve production efficiency. Precision machining, high sur-face finish, kneenness, high processing V groove surface finish, no burr, greatly improved the quantity of products.
Tungsten Carbide Saw Blades widely used in cut wood, metal, aluminum & plastic composites, non-ferrous metals, PVC, PCB, graphite, brass rod, cast iron, granite, marble and grass.
We can provide specification of products according to our customers' requirements.
Material:
1. Tungsten Carbide tip/Saw Blades
2. Fast cutting speed,
A, a kind suitable for cutting all kinds of soft and hard wood profiles and MDF, plywood, particle board, etc.
B. a kidn suitable for cutting aluminium,etc
3.High bending resistance makes carbide tip difficult to be broken.
4.High cutting efficiency, meanwhile, it has a long lifespan.

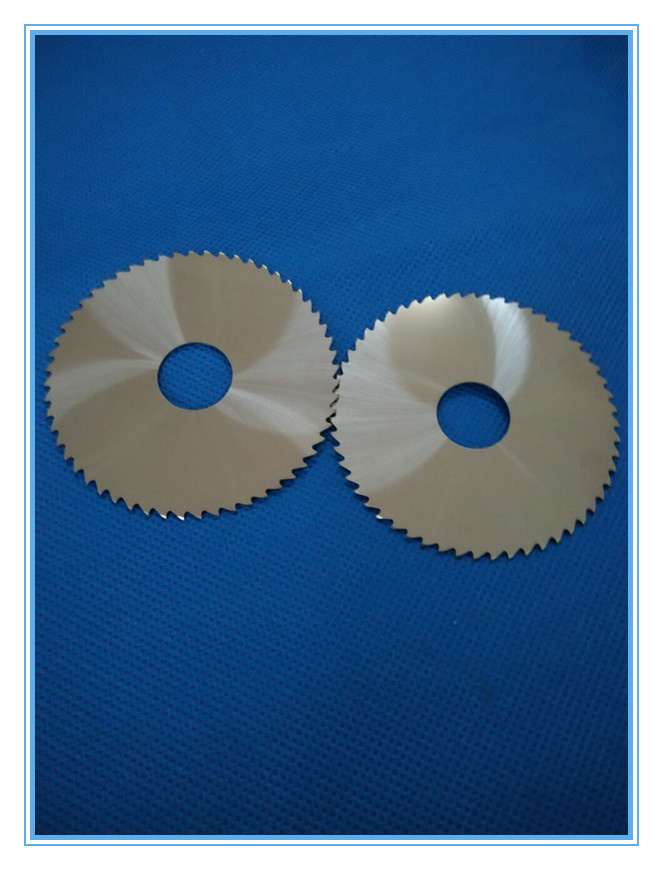

Size: 230*2.4*25.4*60 as picture show
diameter can be 4''/7''/8''/9''/10''/12''14''/16''
| Inch | Diameter | Central hole | Segment thickness | Teeth |
| 4" | 105 | 20 | 1.8 | 30/40 |
| 7" | 180 | 25.4 | 2.2 | 40/60/80 |
| 8" | 200 | 25.4 | 2.6 | 40/60/80 |
| 9" | 230 | 25.4 | 2.8 | 40/60/80 |
| 10" | 250 | 30 | 3 | 40/60/80/100/120 |
| 12" | 300 | 30 | 3.2 | 40/60/80/100/120 |
| 14" | 350 | 30 | 3.4 | 60/80/100/120 |
| 16" | 400 | 30 | 3.6 | 60/80/100/120 |
Impact resistance tungsten carbide circular saw blade blank for making slitting saws
| How to make the tungsten carbide cutter blades? |
A). Tungsten carbide tipped saw blades: The saw blades' teeth are tipped (via welding) with small pieces of sharp tungsten carbide block.
Tungsten carbide tipped saw blades are widelyused to cut wood, plywood, laminated board, plastic, grass, aluminum and some other metals.
B). Tungsten carbide saw blades: The whole saw blade is made of tungsten carbide. Comparing with HSS saw blades, solid carbide saw blades have higher hardness under high temperatures and are more durable, but they also have a lower toughness.
| Tungsten carbide circular saw blade blank for making slitting saws Grade |
| Grade | Density g/cm3 | T.R.S MPa | Hardness HRA | Performance & Application recommended |
| YL10.2 | 14.50 | 3400 | 92.5 | Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick. |
| YG11C | 14.40 | 2260 | 87.5 | Qualified for molding the drills for heavy-duty rock drill:detachable bits used for deep hole drilling,rock drill torlley etc. |
| YG6X | 14.90 | 1560 | 91.0 | Qualified for machiningof chilled cast iron,alloy cast iron,refractory steel ana alloy steel.Also qualified for the machining of common cast iron. |
| YS2T | 14.45 | 2800 | 92.5 | Qualified for low speed rough machining,milling,titanium alloy and refractory alloy,espercially for cut-off tool and sick prick. |
| YG15 | 14.10 | 2400 | 86.5 | Used for punch dies,stamping dies and wear resistance parts. |
| Application of tungsten carbide circular saw blade blank for making slitting saws |
For slotting in the spectacles frame's industry;
For computer hard disk head industry;
For cutting/scoring the pcb board;
For artificial crystal slotting/cutting;
For jewellery (gold, silver, copper)accessory industry;
For metal (alloy) precise cutting/slotting;
Our Advantages:
1) Business Type: Manufacturer, Factory.
ISO9001:2008, SGS.
2) Advanced technology, HIP sintering and precision grinding to ensure the goods performance;
3) 100% Virgin pure Raw materials;
4) Each product through the strict inspections and confirm to the requirements of the lab parameters;
5) OEM & ODM are welcomed;
6) Small order is acceptable;
7) Flexible payment terms (L/C,T/T, western union, etc);
8) Provide custom made service with customer's drawing; Other size could be offered by your requirements;
9) We make sure to provide you with the best solutions for your individual case. Whether standard items or non-standard items all available;
10) Fast delivery and high quality;
11) Best after-sale service.
Other Tungsten Carbide Products in Lihua:
Tungsten Carbide Plates
Tungsten Carbide Strips
Tungsten Carbide Wood Working Cutting
Tungsten Carbide Sleeves
Tungsten Carbide Nozzles/Spraying
Tungsten Carbide Balls
Tungsten Carbide Wire Drawing Dies
Tungsten Carbide Rods/Bars/Tubes
Tungsten Carbide End Mill Tool Holders
Tungsten Carbide CNC Tool Rods
Tungsten Carbide Rings
Tungsten Carbide Sealing Rings/Rollers
Tungsten Carbide CNC Cutting Inserts
Tungsten Carbide Special Cutting Tools
Tungsten Carbide Mining Tools
Tungsten Carbide End Mill/Milling Tools/Drill Bits
Tungsten Carbide Customized Parts
Etc.
Main Products:
Tungsten Carbide, Hard metal Products, Carbide Cutting Tools, Titanium Alloy, Pure Tungsten, Cemented Carbide Products, Carbide Inserts, Carbide Rods, Carbide Plate and Bars, Carbide Tips, carbide rod& tubing product, carbide strips &plates, carbide bars, carbide saw blade, carbide end mills, carbide drill bits, Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and
Different other various type of the tungsten carbide products and so on.
Company Brief Introduction
Zhuzhou Lihua Cemented Carbide Co., Ltd was established in 1990, Based depend on good production advantage, and company with produce, research and development, sales, technical service together that have many rich production experience of the tungsten carbide products. Also have strong scientific research and development team and technicians, advanced quality inspection division, senior engineer, etc of the tungsten Carbide production.
Our company mainly products such as carbide rod& tubing product, carbide strips &plates, carbide bars, carbide saw blade, carbide end mills, carbide drill bits, Carbide welding inserts, carbide CNC inserts, carbide woodworking tools, tungsten carbide powder, some non-standard tungsten carbide products and different other various type of the tungsten carbide products etc.
We have independent developmented YS series of tungsten carbide grade that the grade belong the micro hole grain of tungsten carbide, good abrasion resistance, impact resistant capability is strong, affinity resistant capability is strong that also has good heat conduction performance and so on characteristic.
Lihua is committed to the principle of "customer first, fast delivery and good after-sale service ". If you have any questions and any demand of tungsten carbide, please contact us without any hesitation. We promise you not offering only our qualified products, but also designing, prompt delivery, the most competitive prices and all solution.
Packing:
In common
Firstly use inner boxes,then to outer boxes or do as customer requested.
Shipping Methods:
Shipment methods: By air or sea,DHL,UPS,FEDEX,TNT or as your resquest.
Contact:Foreign Sales Representative: Coco SuMobile/WhatsApp:+86 13973352165 Website: www.en.lihuacarbide.comFactory Add: Tower A, 6th Building, Block C, Auto parts park, Tianyuan zone,Zhuzhou city, Hunan province, ChinaPostcode: 412000
