Product Description
Business Type: Manufacturer, Factory
ISO9001:2008, SGS.
Product Description

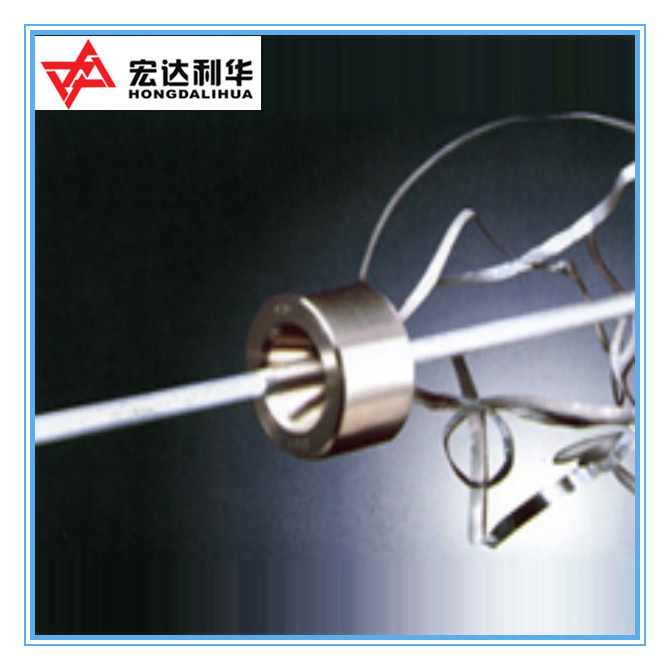

One professional manufacturer of tungsten carbide drawing dies
Our tungsten carbide drawing dies can draw for different material like mild steel, high carbon, stainless steel, brass, aluminum and so on. They could long time ensure the high surface roughness for high speed roughness for high-speed drawn steel wire, tungsten wire, molybdenum wire, tantalum wire and copper wire.
Tungsten carbide drawing wire are widely applicable to many industries such as electronic
Devices, radar, television, instrumentation, aerospace, and many other high-precision industries. It is used for drawing low, medium and high carbon steel copper, aluminum
And alloy wire. There are various sizes you can choose, and we can produce products according to
Your special designs and open mould in accordance with your requirements. Meanwhile there are
Various grades with different applications.
Grade/ Properties / Application |
|
Grade | Equal to ISO Category Number | Performance | Performance&application recommended |
Density | Bend Strength | Hardness |
G/Cm 3 | N/mm 2 | HRA |
YG3 | K01 | 14.9-15.3 | ≥1180 | ≥90.5 | Sand-blasting nozzles qualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting n |
YG3X | K01 | 15.1-15.4 | ≥1300 | ≥91.5 |
YK05 |
| 14.95 | 2500 | 90.5 | Mostly used as the buttons of small and bits medium sized percussion |
YG8C |
| 14.8 | 2400 | 88.5 | and as the inserts of rotary prospecting bits to cut soft and |
medium hard formations. |
YG6 |
| 14.95 | 1900 | 90.5 | For coring crowns,electric coal drill bits, coal cutting picks,oil |
cone bits and scraping knife bits,used in coal geological prospecting, |
mining and oil well boring. |
YG6X | K10 | 14.8-15.1 | ≥1560 | ≥91.0 | Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. |
YG6A | K10 | 14.7-15.1 | ≥1580 | ≥91.0 |
YG6 | K20 | 14.7-15.1 | ≥1670 | ≥89.5 | Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. |
YG8 | K30 | 14.6-14.9 | ≥1840 | ≥89 | Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. |
YG10X |
| 14.5 | 2400 | 91.5 | Fine grain alloy, good wear resistance,Used for processing hard |
wood, veneer board,PCB,PVC and metals. |
YG11 |
| 14.4 | 2600 | 88.5 | Forming or stamping dies for metal powders and nonmental powders. |
YG11C | K40 | 14.4 | 2700 | 86.5 | Largely for the inserts and buttons of percussion bits and tricone bits to cut medium |
hard, hard and very hard formations. |
YG15 | K40 | 14 | 2800 | 87.5 | For fabricating drawing dies of steel tubesand rods under high |
compressibility ratio;punching,stamping,forging tools under large stress. |
YG15C |
| 14 | 3000 | 85.5 | For oil cone dril bits, for medium soft and medium-hard rocks. |
YG16C |
| 13.9 | 2900 | 85.5 | Impact resistance, hot&forging dies etc. |
YGH40 |
| 13.5-13.9 | ≥2450 | ≥83.0 | Mainly for making hot dies. |
YG20 |
| 13.5 | 3200 | 85.5 | For fabricating of stamping dies for watch parts, spring plates of musical |
instruments, battery jars,small sized steel balls,screws,screw caps. |
YG18C |
| 13.7 | 3100 | 84.5 | Impact resistance forging dies,hot-press forging dies and rollers. |
YG20C |
| 13.5 | 3300 | 83.5 | Dies for wear resistant or impact resistant application. |
YG22C |
| 13.3 | 3500 | 83 | Nut forming dies and high impact resistance forging dies. |
YG25C |
| 13.1 | 3600 | 82.5 | Stainless bolt header dies and rollers. |
YT15 | P10 | 11.1-11.6 | ≥1180 | ≥91.0 | Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel. |
YT14 | P20 | 11.2-11.8 | ≥1270 | ≥90.5 | Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting. |
YT5 | P30 | 12.5-13.2 | ≥1430 | ≥89.5 | Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting. |
Drawing die feature for special wire:
1. Diameter range (0.12- 15.0)mm
2. Good wear resistance HRA 89.0- 93.0
3. Excellent polishing
4. Small friction coefficient
Wire drawing mould feature
1. Diameter range (0.12- 15.0)mm
2. Good wear resistance HRA 89.0- 93.0
3. Roughness R can control within 0.05-0.5μ M
4. Ovality can control<=0.008
5. Concentricity can control<=0.05
Recommended grade:
LSM10/ LSM20/ LSM40/ LSM 50/ LSM 60/ LSM70/ LSM 80/ LSM90
We can make suggestions of suitable grades as for drawing different wires.
Type: S11, S12, S13, LV, LE, W, S22, S23, S30, S40, S41, S42, S60 and various
The sizes are as per China new technical standard.
About US:
About 30 years production experience,
1. We,lihua CARBIDE, promise you the 100% raw material.
2. We, lihua CARBIDE, quotation your order with 24 hours
3. We, lihua CARBIDE , accept your order as per your requirements
Our guarantee:
1. 100% raw material.
2. Sintered in HIP Furnace
3. Size standard as per your requirements
4. Professional suggestion on products
5. Feedback within 24 hours
6. ISO9001: 2008 certificate.
7. Fully adopted in advance technology and equipment.
8. Professional manufacture for tungsten carbide items with 30 years experience.
9. Fully adopted in advance technology and equipment.
10. Quality Control System and strict inspection.
Packing:
In common
Firstly use inner boxes,then to outer boxes or do as customer requested.
Shipping Methods:
Shipment methods: By air or sea,DHL,UPS,FEDEX,TNT or as your resquest.
