| Price: | US $ 8.5-9.8/Piece |
|---|---|
| Min Order: | 20/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | RKM-1383 |
|---|---|
| Application: | Film, Sheets, Pipe, Plates, Granules, Recycling, E |
| Material: | Wearable Metals as 5crw2si,6crw2si,9cr Si,H13,Cr12 |
| Production Type: | as Custoner's Drawing |
| Material Processed: | Film |
| Plastic Type: | PE |
| Screw: | Single-Screw |
| Automation: | Automation |
| Computerized: | Computerized |
| Certification: | CE |

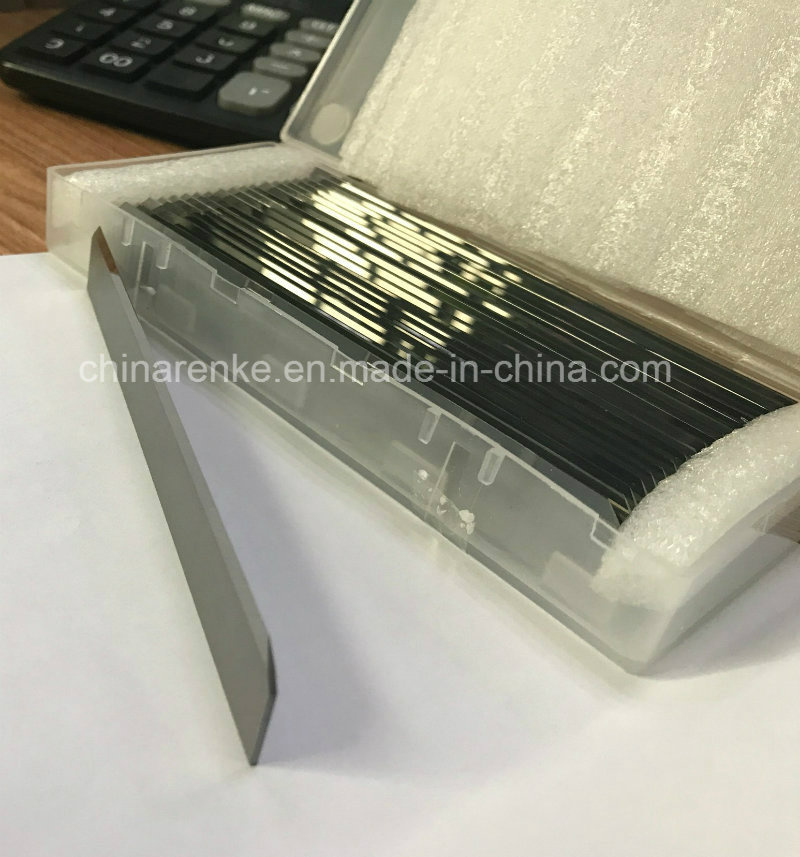

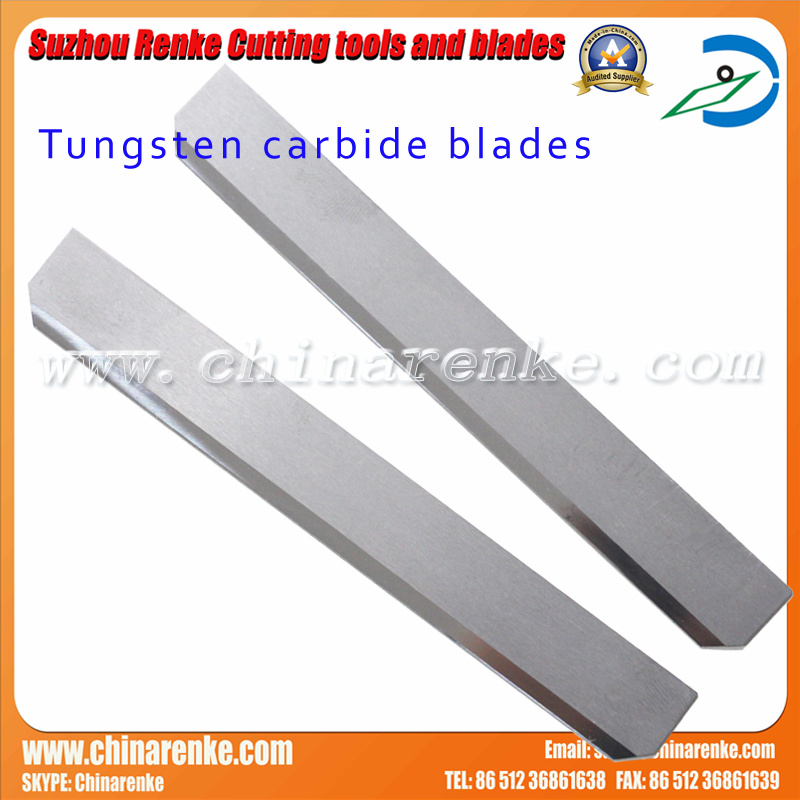

Carbide strips are widely used for general wood cutters / hard wood cutters, plastic and tobacco cutting.
And it is suitable for the production of various types of motors, electronic progressive dies punches.
Tungsten Carbide - Main Property:
| TX Grade | Grade | ISO Grade | Hardness | Density | Bending Strength | Recommended Application |
| T100X | YG6X | K10-K15 | 91-93 | 14.8-15 | ≥1600 | Suitable for little stress conditions, produce for small diameter steel wire, non-ferrous metal wire or rod. |
| T100 | YG6 | K10-K20 | 90.5-92 | 14.8-15 | ≥2000 | Suitable for large stress conditions, produce for medium diameter of steel wire, non-ferrous metal wire or rod. |
| T200 | YG8 | K20-K30 | 89.5-91 | 14.6-14.8 | ≥2100 | Suitable for steel, non-ferrous metal and alloy rod and tube,and is suitable for manufacturing machinery parts, tools materials and wear parts |
| T200C | YG8C | K20-K30 | 89-90.5 | 14.6-14.8 | ≥2200 | Coarse grain size carbide,suitbale for drilling medium hard or hard stratum with f less than 14th and the coal bed containing hard rock;Coal Cutter Bits;Oil Field Bits,and Hammer Drill bits. |
| T300 | YG9 | K20-K30 | 87.5-89 | 14.3-14.5 | ≥2200 | With good good resistance, impact resistance and good shock resistance, suitable for carbide drills, drill pills. |
| T300C | YG9C | K20-K30 | 87.2-88.6 | 14.4-14.6 | ≥2300 | Coarse grain, with good wear resistance, suitable for drilling hard rock. |
| T400 | YG10 | K20-K30 | 87-88.5 | 14.3-14.6 | ≥2300 | With good abrasion resistance, excellent impact resistance and good shock resistance, suitable for cemented carbide buttons and flat-tio-serrated compacts. |
| T500 | YG11 | K30-K40 | 89-90.2 | 14.2-14.5 | ≥2300 | With good wear resistance, suitable for producing nail making moulds,nails specially for cement industry |
| T500C | YG11C | K30-K40 | 86.5-88 | 14.2-14.5 | ≥2400 | Coarse grain, with good wear resistance, suitable for drilling hard rock. |
| T600 | YG12 | K30-K40 | 86.5-88 | 14.1-14.4 | ≥2400 | With good toughness, suitable for making steel pipe, steel, non-ferrous metal and alloy rods, bars,tubes |
| T700 | YG15 | K40 | 87-88.5 | 13.9-14.2 | ≥2400 | Low wear resistance, high bending strength and impact toughness. Suitable for cemented carbide dies,stamp dies and mould cores,etc. |
| T700C | YG15C | K40 | 85-86.5 | 13.9-14.2 | ≥2450 | With very good impact and shock resistance,suitable for tungsten carbide dies and mould cores,etc. |
| T800 | YG20 | 83-85 | 13.4-13.6 | ≥2700 | Suitable for wear parts, plates and mechanical parts. | |
| T800C | YG20C | 82.5-84.5 | 13.4-13.6 | ≥2700 | Suitable for cold heading moulds,cold punching moulds and cold rolls for standard parts and tools in various industries. | |
| TN100 | YN6 | 90.5-92.5 | 14.8-15.1 | ≥1700 | With good corrosion resistant,excellent wear resistance,suitable for mechanical seal parts. | |
| TN200 | YN7 | 90-92 | 14.7-14.9 | ≥1800 | With good corrosion resistant,excellent wear resistance,suitable for mechanical seal parts. | |
| TN300 | YN10 | 86-88 | 14.3-14.6 | ≥2000 | With good corrosion resistant,suitable wear resistance. | |
| TX35T | 93-95 | 7.9-8.1 | ≥1700 | With good corrosion resistant,suitable wear resistance. | ||
From Application | |
Blade for cutting thin film | Blade for cutting plastic |
Blade for cutting paper | Blade for cutting leather |
Blade for cutting Rubber | Blade for cutting metal |
Blade for cutting wood | Blade for printing& ink |
Blade for cutting fiber | Blade for cutting Cardboard |
Blade for cutting food | Blade for cutting Electrical material |
Press Brake Tooling | Press brake Dies |
From Shape | |
Circular Saw Blade | Rectangular knife |
Teeth Type Knife | Repand Type Knife |
Sharp-nosed Type knife | Strip steel blades |
Trapezoid blades | Special blades |
From Material | |
Carbide blade | Ceramic blade |
Carbon steel knife | HSS blades |
TCT tipped blade | Stainless steel blades |
Material | Aluminum, Tungsten carbide, Mild steel ,Stainless steel, Chrome steel, Cold rolled sheet, High Speed Steel, Bearing steel, brass, Copper, Bronze, Chrome copper, Mold steel ,SKH51,SKD11,SKS7,SK2,Cr12Mov,H13,9CrSi, 6CrW2SiW6Mo5Cr4V2,YG8,YT15,P20,K30 etc. |
Surface Treatment | Plated nickel, copper, zinc .etc. and anodized (Anodic oxidation can accord with MIL - A - 8625 Type II standards) Hard Anodizing, owder coated, polished, sand blasted, chemical surface treatment. As customer's request |
