| Prod Model: |

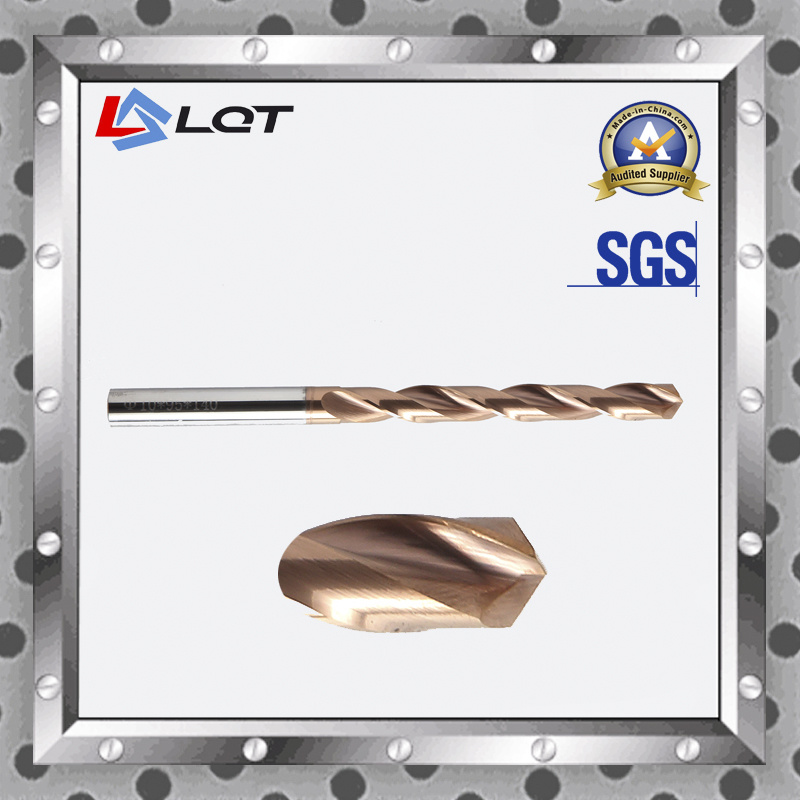

Carbide Drill |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Metal Cutting |
| Wc: |
0.6um |
| Coating: |
None |
| Diameter: |
4-20mm |
| Hardness: |
HRC 55 |
| Suitable For: |
Cast Iron, Carbon Steel, Mould Steel |
| Finish Surface: |
Plain Surface, The Side, Socket |

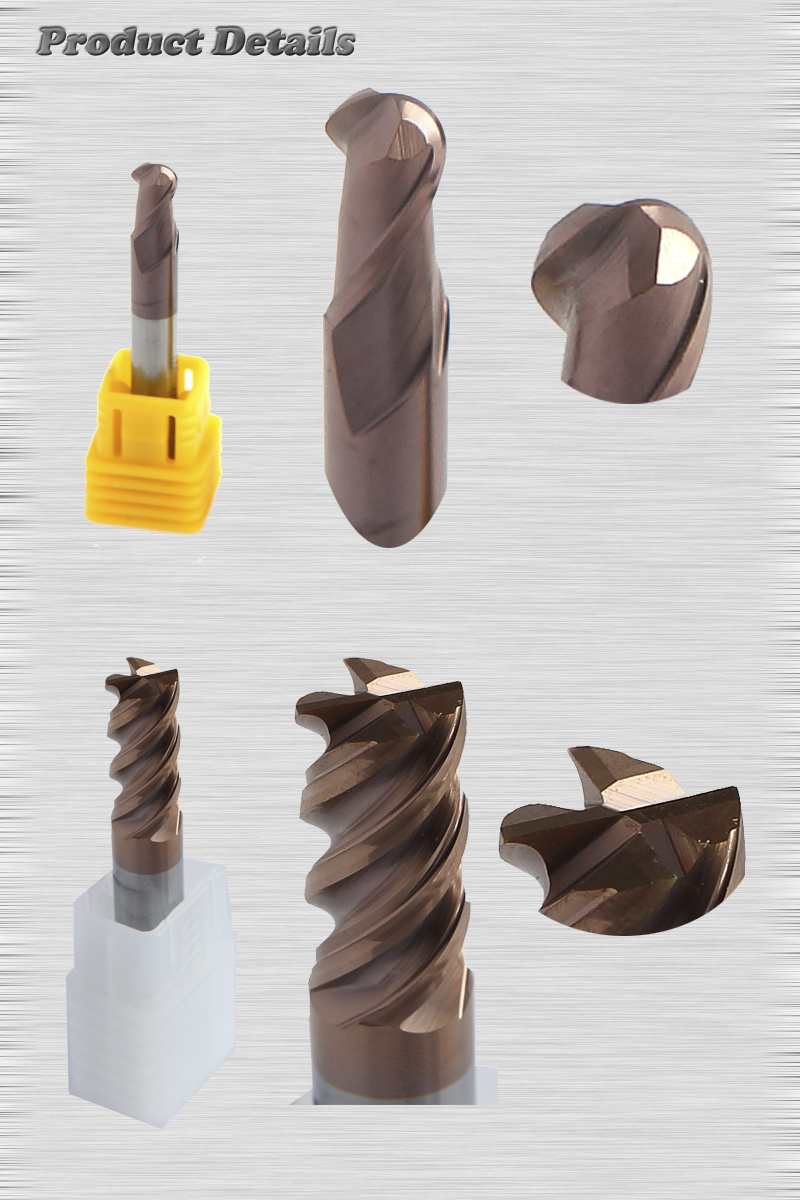

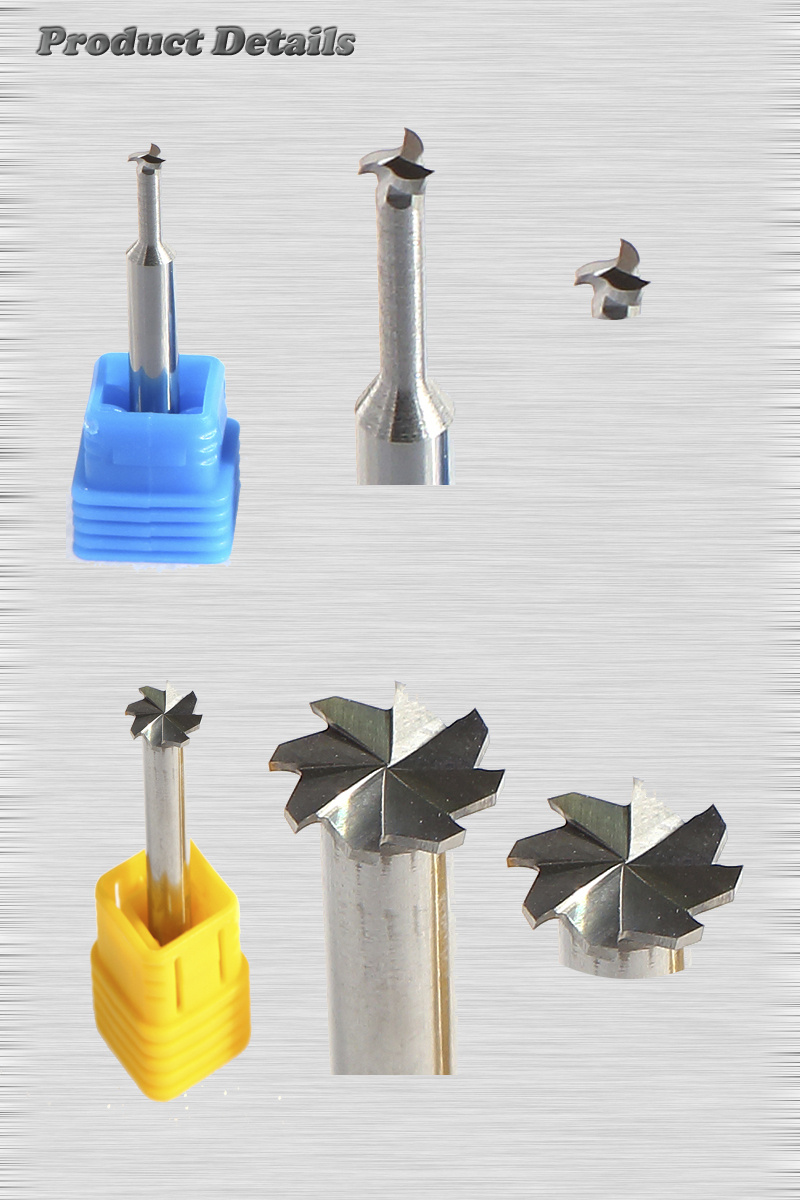

Product Description
We provide High Quality Carbide End MIlls with TiAlN/AlTIN/Si3N4... Coatting which are high precision, highly efficient and heavy cutting. Suitable materials for operations: Copper&Aluminum, Iron Materials, Carbon Steel, Cast Iron, Molding Steel, Alloy Steel, Tool Steel.1. Product Description
1) Raw Materials:
SANDVIK,Teagutec,Kennametal and Guhring
* WC=90%, Co=10%, TRS>4000N/mm2; Hardness>92HRA, Grain size: 0.5-0.6um; High qulaity of wearability and impact
2) Super SI3N4:
*reduce the coeffiction of friction, and improve the tools life much.
3) Detection:
Each end mill is inspected by Zoller measuring and inspected machine.
4) Work Piece:
*Carbon steel, alloy steel, cast steel, tooling steel, mould steel, heat-treament steel. Aluminum alloy steel, Non ferrous alloy1. Aluminum Carbide End mills Specification
5) Main Technical Parameters:
| Diameter | Cutting Length | Shank Diameter | Overall Length | Radius Corner | Flutes |
| 1.0 | 3 | 4 | 50 | 0.5 | 4 |
| 1.5 | 4 | 4 | 50 | 0.5 | 4 |
| 2.0 | 5 | 4 | 50 | 0.5 | 4 |
| 2.5 | 7 | 4 | 50 | 0.5 | 4 |
| 3.0 | 8 | 3 | 50 | 0.5 | 4 |
| 3.0 | 8 | 4 | 50 | 0.5 | 4 |
| 3.5 | 9 | 4 | 50 | 0.5 | 4 |
| 4.0 | 10 | 4 | 50 | 0.5 | 4 |
| 5.0 | 13 | 5 | 50 | 0.5 | 4 |
| 5.0 | 15 | 6 | 50 | 0.5 | 4 |
| 6.0 | 15 | 6 | 50 | 0.5 | 4 |
| 8.0 | 20 | 8 | 60 | 0.5 | 4 |
| 10.0 | 25 | 10 | 75 | 0.5 | 4 |
| 12.0 | 30 | 12 | 75 | 0.5 | 4 |
| 14.0 | 40 | 14 | 100 | 0.5 | 4 |
| 16.0 | 40 | 16 | 100 | 0.5 | 4 |
| 18.0 | 45 | 18 | 100 | 0.5 | 4 |
| 20.0 | 45 | 20 | 100 | 0.5 | 4 |
Liqite(Changzhou) Tools Co., Ltd(LQT) is specialized in designing, researching, producing and selling high quality cutting tools, which is a preferred quality supplier in cutting tool industry. LQT owns 8 advanced grinding machines from ANCA. Our staff team has many high quality workers with excellent technology and unyielding spirits. Also we offer our customers high quality and customized cutting tools, serve for the IT, moulding, auto parts, aeronautics and astronautics and some other fields with our advanced manufacturing process and production equipment, also with the strict process control.
LQT Tools company is focus on cutting tools manufacturing. At present, we also provide the OEM of cutting tools for high quality customers both domestic and overseas, we try to provide the most cost-effective cutting tools.

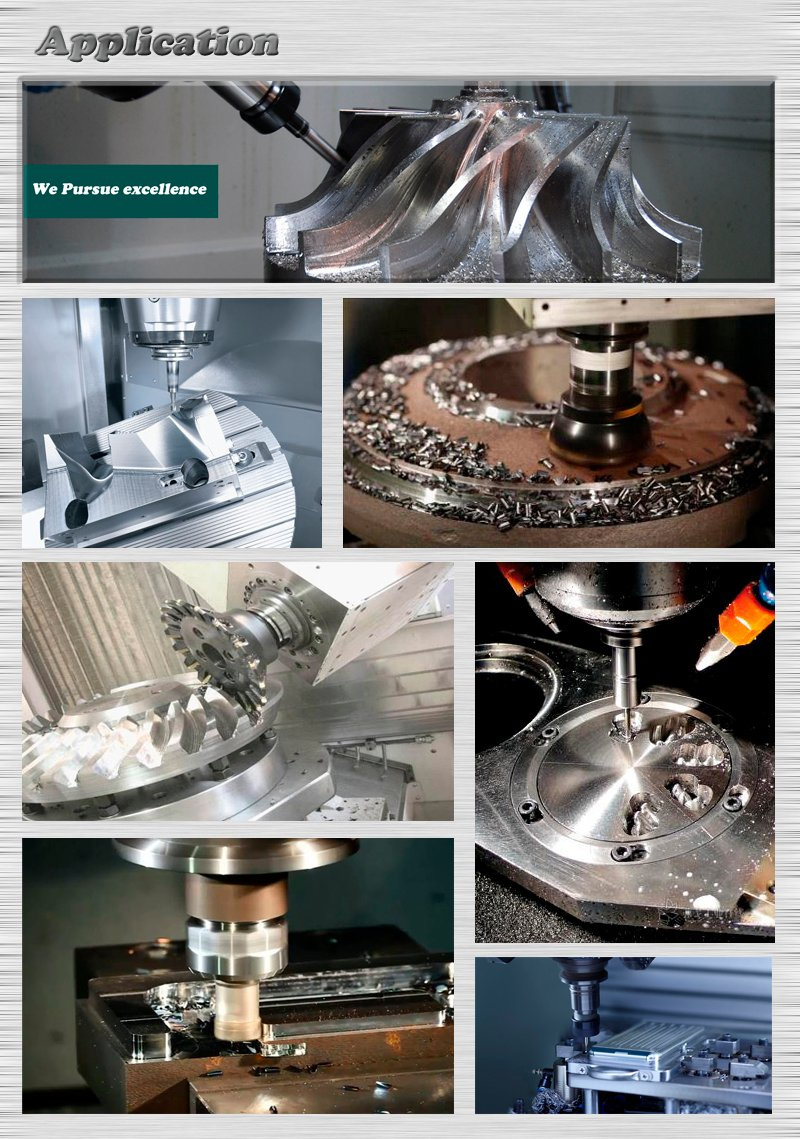

Our carbide cutting tools For the medical fields including Orthodontics, Orthopedics, Catheters, and Surgical instruments; For the automotive parts and engines, motorcycles, snowmobiles, and bicycle industries; For pattern and mold makers; For general manufacturing in marine, recreational and consumer products industries; For the plastics industry, and For the woodworking industry.

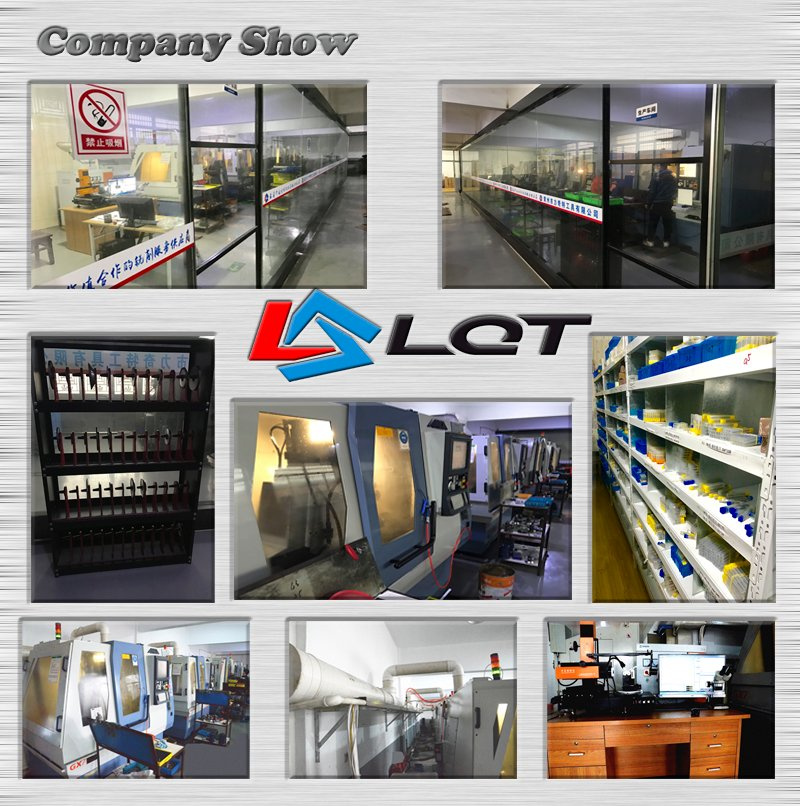

Efficient workshop and 5AXIS grind machines run by skillful operators. We have our partners as complementarities sited around our factory in 5 Km who is product turning tools, holder And others, they are all around our factory in 5 Km. So, you can trust us that we must satisfy your needs.
We earned reputation of good quality, Fast producting, Delivery in time, reliable service. LQT will continue to introduce some new series of tools to meet different requirements. Sincerely Welcome to inquiry products and visit our company, thanks.
