Two - Way Double Row Thrust Tapered Roller Bearings
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
829232 |
| Special: |
Support for Custom |
| Rolling Body: |
Roller Bearings |
| The Number Of Rows: |
Double |
| Outer Dimension: |
Large (',200-430mm) |
| Load Direction: |
Thrust Bearing |
| Separated: |
Separated |
| Material: |
on Demand |
Product Description

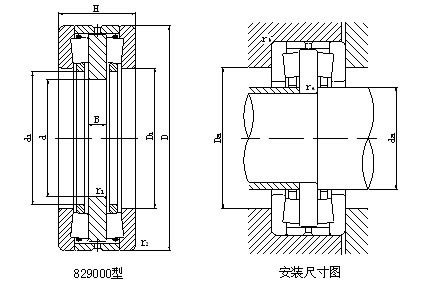

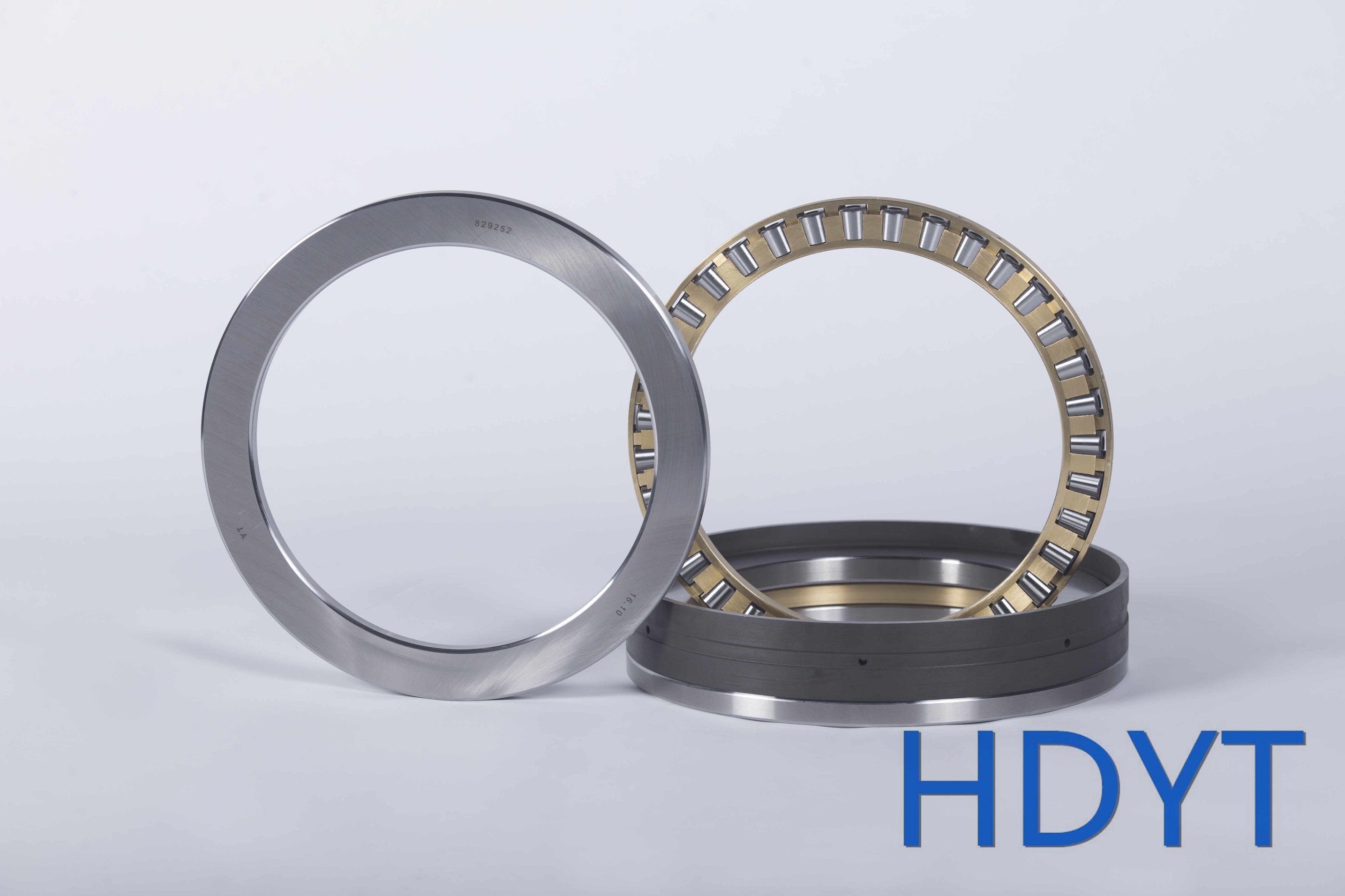

Two -way double row thrust tapered roller bearings:
The separable bearing. The blowout patch, race, maintenance racks and rollers can be installed separately
Large double axial load. The radial displacement of the shaft cannot be restricted
Minimum bearing width, minimum external diameter, with same diameter of axle and axial load compare to the other axial location bearing
The higher the speed
Higher cost compare to thrust cylindrical roller bearing
| earings | FAG | A.R.B. | Torrington | B.& R.B. | INA / Andrews | Bore | O.D. | Height | Weight |
| | | | | | | mm | mm | mm | Kgs |
| T 411 | 549164 | T 1411 | 40 TTHD 015 AA967 | BRB 411 | 40 TR 01 | 101.6 | 215.9 | 46.05 | 9.07 |
| T 441 | 548086 | T 1441 | | BRB 441 | | | | | |
| T 451 | 518487 | T 1451 | 45 TTHD 020 | BRB 451 | | | | | |
| T 511 | 547420 | T 1511 | 20 TTHD 024 | BRB 511 | 50 TR 01 | 127 | 266.7 | 58.75 | 16.78 |
| T 511 A | 546630 | T 1511 F | | BRB 511 A | | 128.6 | 266.7 | 58.75 | 16.78 |
| T 520 | 521174 A | | | BRB 520 | | | | | |
| T 611 | 547711 | T 1611 | 60 TTHD 026 | BRB 611 | 60 TR 01 | 152.4 | 317.5 | 69.85 | 29.94 |
| T 651 | 546947 | T 1651 | 65 TTHD 029 | BRB651 | 65 TR 02 | | | | |
| T 661 | 546632 | T 1661 | 66 TTHD 030 | BRB 661 | 66 TR 01 | 168.275 | 304.8 | 69.85 | 25.4 |
| T 691 | 535741 A | T 1691 | 68 TTHD 031 | BRB 691 | 68 TR 01 | 174.625 | 358.775 | 82.55 | 42.18 |
| T 711 | 547667 | T 1711 | 70 TTHD 032 | BRB711 | 70 TR 02 | 177.8 | 368.3 | 82.55 | 49.44 |
| T 811 | 514560 | T 1811 | 80 TTHD 034 | BRB 811 | 80 TR 01 | 203.2 | 419.1 | 92.075 | 59.87 |
| T 811 X | 547713 | T 1811F | 81 TTHD 035 | BRB 811 X | | | | | |
| T 811 XA | | | | BRB 811 XA | | | | | |
| T 911 | 512133 A | T 1911 | 90 TTHD 039 | BRB 911 | 90 TR 01 | 228.6 | 482.6 | 104.775 | 107.5 |
| T 911 A | 546631 | T 1911F | 92 TTHD 039 | BRB 911A | 90 TR 05 | 234.95 | 482.6 | 104.775 | 105.23 |
| T 921 | 513052 | T 1921 | 92 TTHD 043 | | 92 TR 02 | 234.95 | 546.1 | 127 | 159.21 |
| T 1011 | 547591 | T 11011 | 100 TTHD 045 | | 100 TR 02 | 254 | 539.75 | 117.475 | 145.15 |
| T 1115 | | | | BRB 1115 | | | | | |
| T 1120 | 546633 | T 11120 | 110 TTHD 047 | | 110 TR 01 | 279.4 | 603.25 | 136.525 | 222.26 |
| T 1421 | | | | BRB 1421 | | | | | |
| T 7519 | 547712 | | | | | | | | |
| T 9020 | 547380 | | | | | | | | |
| T 14520 | 549175 | | | | | | | | |
| T 16021 | 549176 | T 116021 | 160 TTHD 064 | | | | | | |
| T 16050 | | T 116050 | 160 TTHD 065 | | | 406.4 | 838.2 | 177.8 | 528.44 |
| T 48000 | | | | | | | | | |
