| Prod Model: |
SY-35DSB-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter(mm): |
900 - 3500 |
| Core Thickness(mm): |
5.0 - 10.0 |
| Segment Sizet(mm): |
24X6.6/6.0X10(12) (15)(20) - 24X14.5/13.5X15 (20) |
| Segment No.(PCS): |
64 - 180 |
| Core Type: |
Silent or Normal |
| Segment Shape: |
Flat Shape, M Shape, Conical Shape |
| Advantage: |
Quality and Price |
| Delivery Detail: |
7 - 15 Days |
| Weliding Way: |
High Frequency Welding |
| Shape: |
Round |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Welding |
| Usage: |
Stone Cutting |
| Saw Blade External Diameter: |
350mm |
| Customized: |
Non-Customized |
| Graininess: |
Success Formula for Stone Concrete Cutting |
| Thickness: |
Depend on Diameter |
| Brand: |
Sunny |
| Specification: |
350mm Diamond Saw Blade |
Product Description

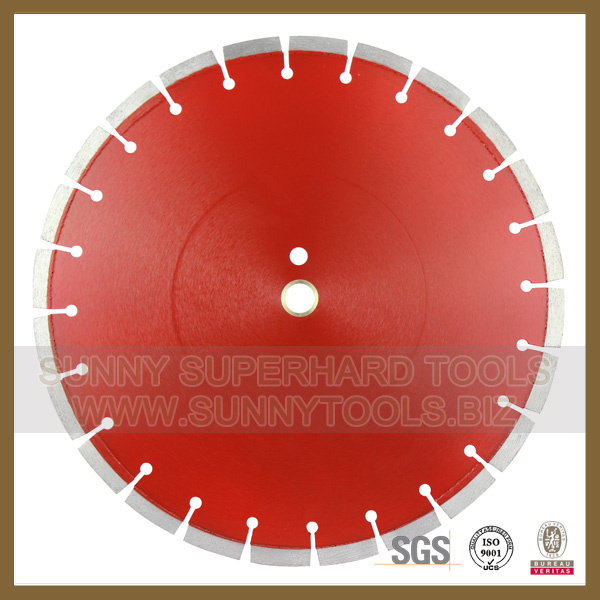

Tyrolit Quality 350mm Diamond Saw Blades For Cutting Reinforced Concrete
Used for Concrete material, Green concrete, Asphalt...Etc. Suitable for portable Cutting Machine and Single Arm Machine.
Design the segment bond according to your different stone hardness, abrasiveness, machine parameter to bring premium cutting and maximum output.
Characteristics:
1. Fast cutting and Long life.
2. Strictly raw material source and production quality control assure your stable quality
3. Welding method: Silver welding
4. Wet use only with sufficient water, Fast & Smooth cutting, long life, perfect performance.
The above specifications and photos is only for Reference, other or special specification can be ordered by customers.
Technical data requested
The technical data that needs to be provided in order to identify the most suitable disc is:
Δ Disc diameter
Δ Bore
Δ Narrow or wide slots
Δ Core type(normal or silent)
Δ Type of material to be cut
Any Question or for more information, please kindly contact us!
Thank you for viewing our website!
[2013080806]
[2013080906]
| Flat shape, M shape and Conical shape |
| Diameter mm | Inch | Core Thickness | Segment Size | Segment Number | Note:
Sandwich segments
Layal segments
are available
according to
your working demand |
| φ900 | 36" | 5.0 | 24x6.6/6.0x10(12) (15)(20) | 64 |
| φ1000 | 40" | 5.5 | 24x7.0/6.4x10(12) (15)(20) | 70 |
| φ1200 | 48" | 6.0 | 24x8.0/7.4x10(12) (15)(20) | 80 |
| φ1300 | 50" | 6.5 | 24x8.4/7.8x10(12) (15)(20) | 88 |
| φ1600 | 64" | 7.2 | 24x9.0/8.4x10(12) (15)(20) | 108 |
| φ1800 | 72" | 8.0 | 24x9.8/9.2x10(12) (15)(20) | 120 |
| φ2000 | 80" | 8.0 | 24x10.5/9.5x10(12)(15)(20) | 128 |
| φ2200 | 88" | 9.0 | 24x11.5/10.5x(15)(20) | 132 |
| φ2500 | 110" | 9.0 | 24x12.5/11.5x(15)(20) | 140 |
| φ3000 | 120" | 10.0 | 24x13.5/12.5x(15)(20) | 160 |
| φ3500 | 140" | 10.0 | 24x14.5/13.5x15 (20) | 180 |
| Other Specifications Are Available Upon Request |
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
