| Prod Model: |
5-280x |
| Application: |
Transmission System |
| Material: |
20cr |
| Type: |
20crmnti |
Product Description

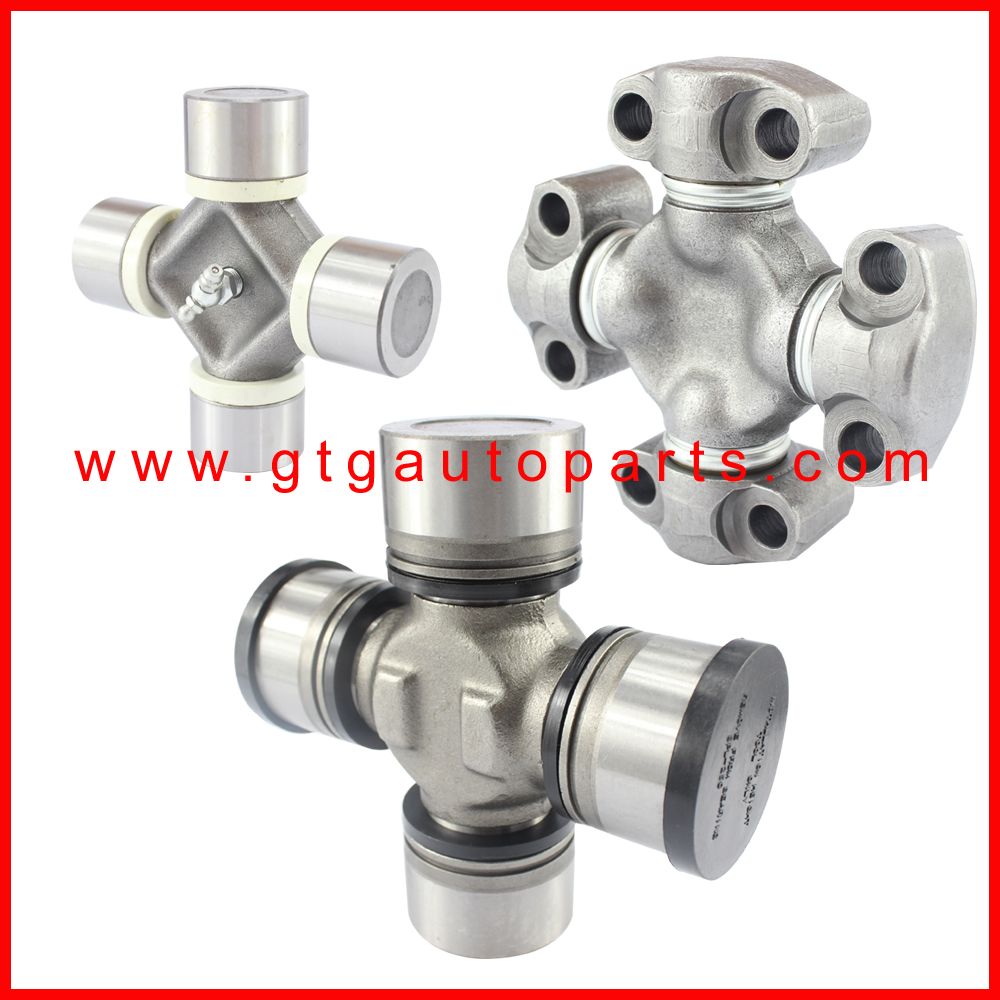

Universal joint description1) Materials: 20Cr
2) Can develop according to customer's drawings or samples
3) OEM is available
4)
Full range for the cross joint
5) Good quality and resonable price
Brasil application:| ItemNo. | Part No. | D mm | L mm | Spicer No. |
| 1 | CZ-101 | 23.80 | 61.20 | 5-13400X |
| 2 | CZ-102 | 27.00 | 70.00 | |
| 3 | CZ-105 | 41.30 | 128.30 | |
| 4 | CZ-116 | 30.00 | 82.50 | |
| 5 | CZ-117 | 27.00 | 70.10 | |
| 6 | CZ-119 | 27.00 | 81.70 | |
| 7 | CZ-120 | 27.00 | 61.90 | |
| 8 | CZ-121 | 27.00 | 81.70 | |
| 9 | CZ-122 | 23.80 | 61.20 | |
| 10 | CZ-127 | 27.00 | 74.60 | 5-4X |
| 11 | CZ-170 | 27.00 | 80.00 | |
| 12 | CZ-181 | 23.80 | 63.70 | |
| 13 | CZ-182 | 34.90 | 93.00 | |
| 14 | CZ-183 | 27.00 | 71.30 | |
| 15 | CZ-184 | 35.00 | 96.70 | |
| 16 | CZ-185 | 35.00 | 97.50 | |
| 17 | CZ-202 | 27.00 | 81.70 | 5-121X |
| 18 | CZ-204 | 19.10 | 47.60 | 5-312X |
| 19 | CZ-205 | 17.00 | 45.00 | |
| 20 | CZ-208 | 30.10 | 92.00 | 5-178X |
| 21 | CZ-210 | 30.10 | 106.20 | 5-160X |
| 22 | CZ-220 | 44.00 | 126.00 | 5-77277X |
| 23 | CZ-221 | 41.20 | 141.90 | 5-165X |
| 24 | CZ-225 | 27.00 | 81.70 | 5-153X |
| 25 | CZ-228 | 45.00 | 120.30 | 5-12100X |
| 26 | CZ-229 | 48.00 | 125.60 | 5-12219X |
| 27 | CZ-230 | 52.10 | 132.90 | 5-12924X |
| 28 | CZ-231 | 57.00 | 152.10 | 5-12932X |
| 29 | CZ-239 | 19.00 | 48.20 | |
| 30 | CZ-240 | 23.80 | 61.20 | 5-2X |
| 31 | CZ-251 | 44.00 | 149.00 | 5-12276X |
| 32 | CZ-252 | 27.00 | 92.00 | 5-273X |
| 33 | CZ-253 | 27.00 | 61.90 | 5-310X |
| 34 | CZ-254 | 34.90 | 106.10 | 5-263X |
| 35 | CZ-255 | 50.00 | 164.00 | 5-12278X |
| 36 | CZ-256 | 34.90 | 126.10 | 5-275X |
| 37 | CZ-258 | 19.00 | 48.20 | |
| 38 | CZ-259 | 19.10 | 47.60 | 5-12265X |
| 39 | CZ-260 | 19.00 | 49.00 | |
| 40 | CZ-265 | 48.00 | 160.90 | 5-12062X |
| 41 | CZ-268 | 24.00 | 77.80 | |
| 42 | CZ-271 | 41.20 | 126.10 | SPL90-1X |
| 43 | CZ-277 | 57.00 | 162.90 | 5-12072X |
| 44 | CZ-279 | 48.00 | 125.60 | 5-12219X |
| 45 | CZ-280 | 65.00 | 189.70 | |
| 46 | CZ-281 | 30.10 | 106.20 | |
| 47 | CZ-286 | 53.00 | 135.00 | |
| 48 | CZ-287 | 38.00 | 147.80 | |
| 49 | CZ-104 | 24.60 | 43.00 | 5-13600X |
| 50 | CZ-106 | 24.60 | 43.00 | 5-13500X |
| 51 | CZ-171 | 26.50 | 47.90 | |
| 52 | CZ-172 | 32.00 | 56.90 | |
| 53 | CZ-180 | 30.10 | 52.80 | 5-297X |
| 54 | CZ-226 | 27.00 | 52.60 | 5-260x |
| 55 | CZ-227 | 38.00 | 57.00 | 5-12213X |
| 56 | CZ-276 | 68.00 | 89.00 | 5-12018X |
| 57 | CZ-288 | 42.00 | 66.30 | 5-12022X |
| 58 | CZ-108 | 34.92/42.80 | 126.10/140.40 | 5-303X |
| 59 | CZ-112 | 30.18/36.50 | 106.29/107.90 | 5-345X |
| 60 | CZ-114 | 34.92/42.80 | 126.10/140.40 | 5-220X |
| 61 | CZ-128 | 41.2/49.20 | 142/148 | 5-330X |
| 62 | CZ-176 | 34.9/42.80 | 106.20/115 | 5-347X |
| 63 | CZ-177 | 34.9/42.80 | 106.20/115 | 5-348X |
| 64 | CZ-250 | 41.2/49.20 | 142/148 | 5-12611X |
| 65 | CZ-266 | 30.1/42.80 | 106.20/115 | 5-12913X |
| 66 | CZ-107 | 25.4/33.34 | 55.20/79.22 | |
| 67 | CZ-109 | 42.88 | 140.46 | 5-6106X |
| 68 | CZ-110 | 36.50 | 108.00 | 5-4143X |
| 69 | CZ-111 | 49.20 | 148.38 | 5-7000X |
| 70 | CZ-113 | 49.20 | 148.38 | 5-7105X |
| 71 | CZ-115 | 42.88 | 115.06 | 5-5177X |
| 72 | CZ-123 | 42.88 | 115.06 | 5-15178X |
| 73 | CZ-125 | 33.34 | 79.00 | 5-2116X |
| 74 | CZ-126 | 42.88 | 140.46 | 5-6000X |
| 75 | CZ-142 | 71.40 | 209.52 | |
| 76 | CZ-143 | 71.40 | 165.00 | |
| 77 | CZ-144 | 71.40 | 165.00 | |
| 78 | CZ-173 | 36.50 | 90.40 | |
| 79 | CZ-174 | 42.88 | 115.06 | 5-5000X |
| 80 | CZ-175 | 36.50 | 108.00 | |
| 81 | CZ-178 | 42.88 | 115.06 | |
| 82 | CZ-179 | 33.34 | 79.00 | |
| 83 | CZ-264 | 47.60 | 135/135 | 5-438X |
| 84 | CZ-272 | 49.20 | 191.69/194 | 5-510X |
| 85 | CZ-274 | 49.20 | 154.7/157.1 | 5-515X |
| 86 | CZ-124 | 47.60 | 134.90 | 5-279X |
| 87 | CZ-270 | 49.20 | 191.70 | 5-281X |
| 88 | CZ-273 | 49.20 | 154.90 | 5-280X |
More catalogue, please visit ourweb

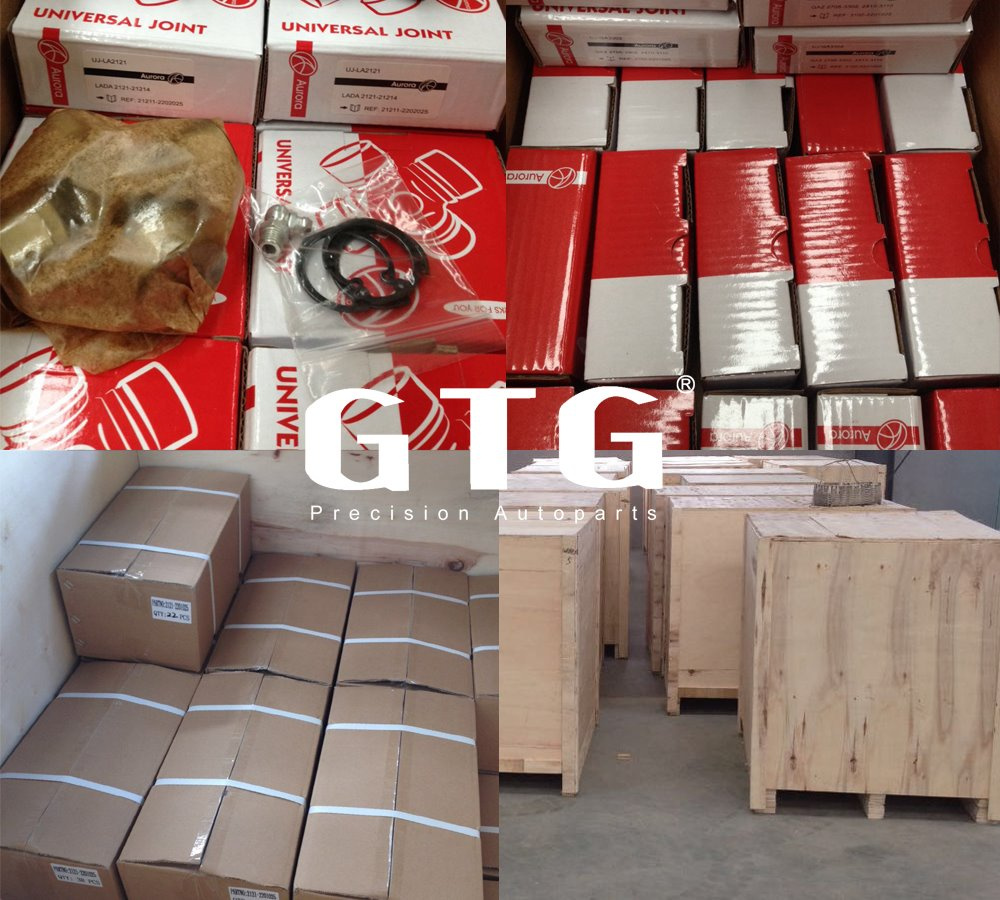

Some Packing example:

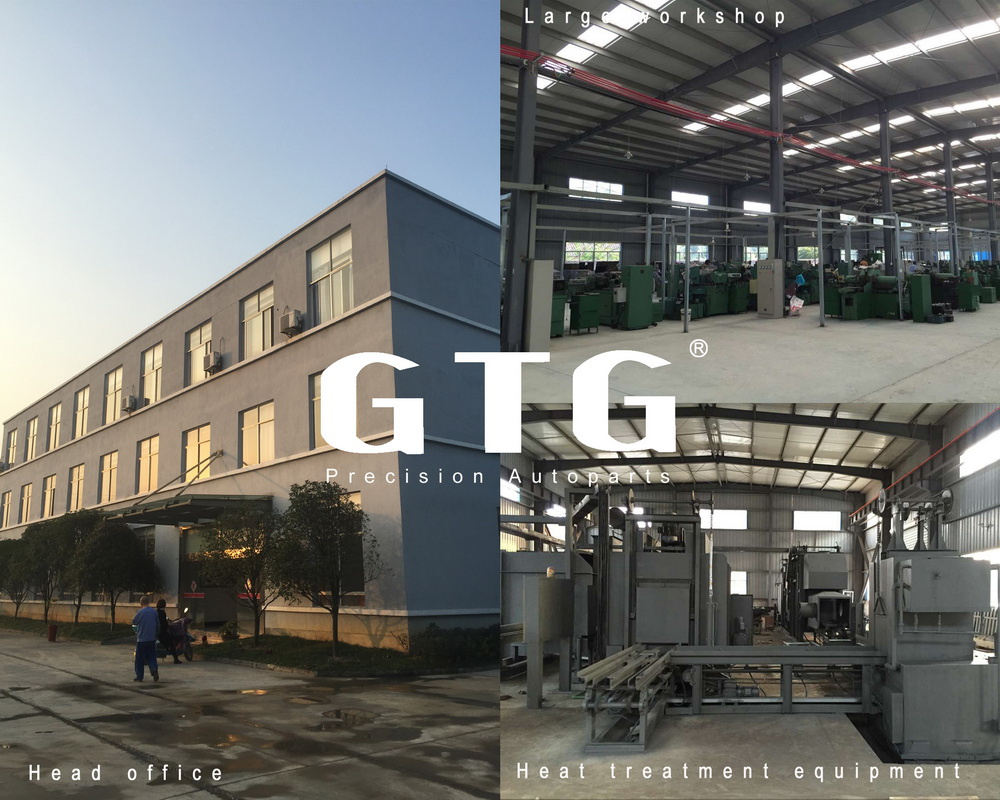

About us:
HangZhou XiaoShan JiangShan Auto Parts Factory is the large enterprise that Belong to Zhe Jiang Guantong Bearing Co., Ltd., specializes in R&D and manufacturing auto parts since 1997. The company locates in HangZhou city, the famous city with long history and rich culture in Zhejiang province of China.
Our main products include universal joint, king pin kits, bushing, bearing and so on. Our products are now exported to the growing world market and enjoy great reputation both abroad and home.
We have passed ISO-9001: 2000 International Quality Control System Authentication. With the powerful and experienced R&D team supported by the latest technology and advanced equipment such as all kinds of punch, friction press, inner-outer grinding lathe, NC lathe, heat-treatment mesh-belt furnace, we have developed many products that respond to the ever changing market requirements and make us hold the leading place in the same industry.
Sincerely welcome the friends worldwide cooperate and develop together!
