U. S. Type Drop Forged Alloy Steel G209 Hardware Marine Shackle

Name: U. S. Type Drop Forged Alloy Steel G209 Hardware Marine Shackle
Brand: tool-buy.com
SKU: 729979662
Availability: InStock
Rating: 4.6 (53 reviews)

Price:	US $ 0.1/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Qingdao Yanfei Rigging Co., Ltd.

Showroom Product Company Profile

Prod Model:	YANFEI-Shackle
Product Name:	Us Type Drop Forged Screw Pin Anchor Bow Shackle
Model No:	G210, G2150, G209, G2130
Surface Treatment:	Electro Galv., Hot-DIP Galv., etc
Application:	Boat, Yacht, Lifting
Customized:	Non-Customized
Process:	Drop Forged
Safe Factor:	4:1/6:1
Treatment:	Quenched and Tempered
Type:	Shackles
Material:	Alloy Steel
Shape:	G209 Bow Shackle
Usage:	G209 Bow Shackle

Product Description

U. S. Type Drop Forged Alloy Steel G209/ G210/ G2130/ 2150 Hardware Marine Shackle

Product Description

Good Quality Marine Hardware D Shackle:
Material: Carbon steel, Alloy steel
Surface treatment: Galvanized
Application: Ship, iron and steel industry, petroleum chemical industry, coal mine
Safety factor 4:1 is available upon request

Technical Specification

ITEM NO	Size	WLL	Dimensions(mm)											N.W.
ITEM NO	(in.)	(Tonne)	A	B	C	D	E	F	G	H	I	M	N	(kg)
RG023-3/16	3/16	0.33	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85	0.03
RG023-1/4	1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35	0.05
RG023-5/16	5/16	3/4	13.5	9.65	31	7.85	21.3	19.1	37.3	53	5.6	42.2	7.85	0.09
RG023-3/8	3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63	6.35	51.5	9.65	0.14
RG023-7/16	7/16	1 1/2	19.1	12.7	42.9	11.2	29.5	26.9	51.5	74	7.85	60.5	11.2	0.17
RG023-1/2	1/2	2	20.6	16	47.8	12.7	33.3	30.2	58.5	83.5	9.65	68.5	12.7	0.33
RG023-5/8	5/8	3 1/4	26.9	19.1	60.5	16	42.9	38.1	74.5	106	11.2	85	17.5	0.62
RG023-3/4	3/4	4 3/4	31.8	22.4	71.5	19.1	51	46	89	126	12.7	101	20.6	1.07
RG023-7/8	7/8	6 1/2	36.6	25.4	84	22.4	58	53	102	148	12.7	114	24.6	1.64
RG023-1	1	8 1/2	42.9	28.7	95.5	25.4	68.5	60.5	119	167	14.2	129	26.9	2.28
RG023-1 1/8	1 1/8	9 1/2	46	31.8	108	29.5	74	68.5	131	190	16	142	31.8	3.36
RG023-1 1/4	1 1/4	12	51.5	35.1	119	32.8	92.5	76	146	210	17.5	156	35.1	4.31
RG023-1 3/8	1 3/8	13 1/2	57	38.1	133	36.1	92	84	162	233	19.1	174	38.1	6.14
RG023-1 1/2	1 1/2	17	60.5	41.4	146	39.1	98.5	92	175	254	20.6	187	41.1	7.8
RG023-1 3/4	1 3/4	25	73	51	178	46.7	127	106	225	313	25.4	231	57	12.6
RG023-2	2	35	82.5	57	197	53	146	122	253	348	31	263	61	20.4
RG023-2 1/4	2 1/4	42 1/2	95	65	220	57	160	143	274	32	33	321	66	32
RG023-2 1/2	2 1/2	55	105	70	267	69	184	145	327	453	35.1	330	79.5	38.9

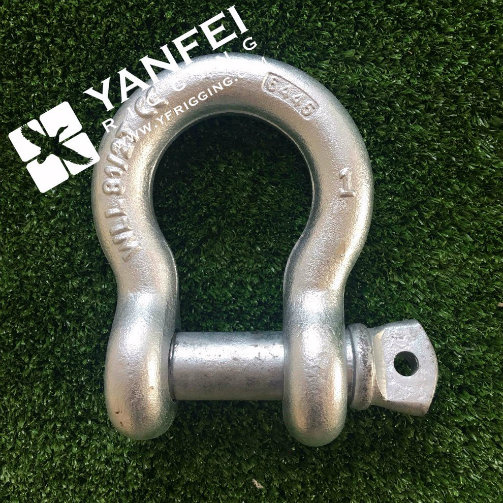

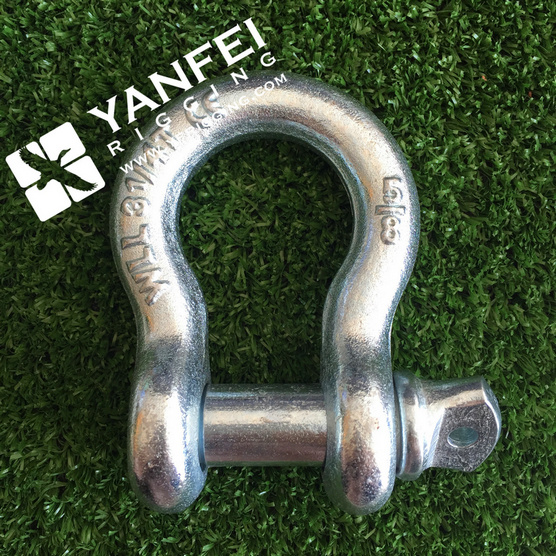

Name: G209 Galvanized Bow Rigging Anchor Shackle
Material: Carbon Steel
Surface: Galvanized or hot dip galvanized
Size: 3/16"-4"
Packing: Gunny bag+ iron pallet

Our Main Products.

Our main products are Shackles, Turnbuckles, load binders, Hooks, Eye bolts and nuts, Wire rope clips, swivels, Connecting links, Stainless steel riggings etc.

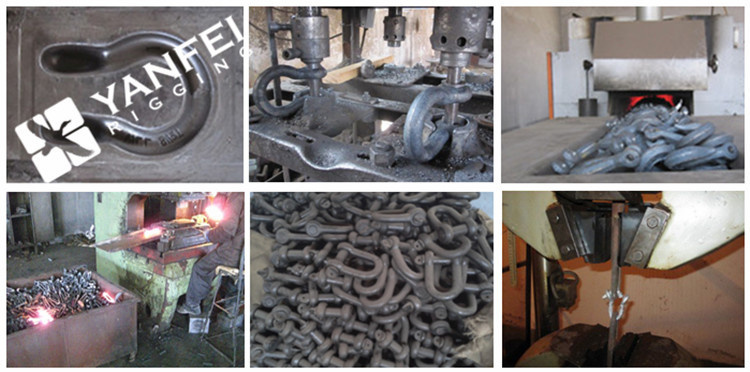

Production Workshop
U. S. Type Drop Forged Alloy Steel G209/ G210/ G2130/ 2150 Hardware Marine Shackle
We pay attention to every details , our quality get highly appreciate from all over the world .

Shipping and package

Packing details: Packed in carton and then in pallet, Packed in wooden carton, or according to your requirements

Delivery Detail: Usually 30 days after receiving your irrevocable L/C or advance payment.

Contact

Qingdao Yanfei Rigging Co., Ltd specializes in the field of Chain & Chain Sling, Wire Rope & Wire Rope Sling, Rigging Hardware, Marine Hardware, Lifting Sling & Hoist Equipment, Cargo Control and Transport Products, Tools & Other Products.

We are located in Qingdao, China, which is very convenient and adjacent to Qingdao International Airport and cargo container port.

Our company's reputation has been built on Quality, Safety and Service. In all markets safety is critical, and this starts with a quality product backed by a reliable company. All the products are produced under strict standard of quality control, and constant research and development ensuring that you will get the latest products produced with the most advanced and cost effective technologies.

We put customer first. One of the top priorities is to make sure that our quality management system is a world-class one so that the service we provide is consistent and the best in the market. We are here waiting for you!
