| Prod Model: |
3/16''-3'' |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type;: |
U.S Type |
| Grade: |
G8 |
| Product Name: |

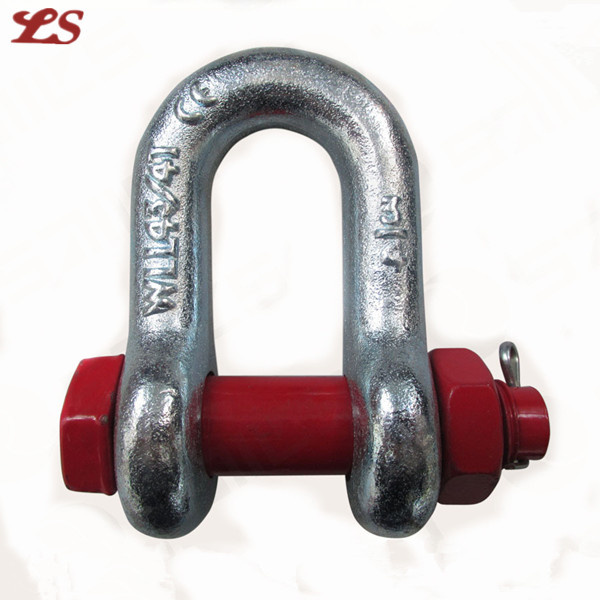

U. S Type Drop Forged Bolt Type G2130 Dee Shackle |
| Function: |
Fastener |
| Brand Name: |
Ls |
| Process: |
Forged |
| Surface: |
Galvanzied |
| Delivery Time: |
We Could Supply Goods Within 15-25days |
| Samples: |
for Free |
| Size: |
1/2-3 |
| Material: |
Alloy Steel |
Product Description
U. S Type Drop Forged Bolt Type G2130 Dee Shackle
Size: 1/2"-3"
Material: Carbon steel
Keyword: U. S Type Safety Chain Shackle
Function: Fastener
Brand Name: LS
Process: Laying-off------forged----drill hole----heat treatment----phosphorization----powder plastified
Shackle are widely used in various industries.
PRODUCT DETAILS
ServiceYou will get reply within 12hours.
Product name: U. S Type Safety Chain Shackle
Place of origin: Shandong, China.
Brand: LS brand
Material: Alloy steel (carbon steel, stainless steel )
Size: 1/2-3
Surface: Electric-galvanized (hot dip galvanized, color painted )
Standard: U. S standard
Grade: None
StockWe have stocks for regular sizes.
Samplefor free
Packing methodpp bags+gunny bags, then on pallets
Payment termT T payment or LC at sight
Delivery timewe could suppy goods within 15-25days.
Using range
Electric power, metallurgy, petroleum,
Machinery, railway, chemical industry,
Ports, mines, construction
Electric power, metallurgy, petroleum, machinery, railway, chemical
Industry, ports, mines, construction.
Warning: Never exceed working load limit.
1)Gunny bag
Size: 30*50(cm)
Weight: 200g(only bag)
50kg
2) Carton
Size: 5mm-50mm
Weight: 250g
1. Purchase order tracking
Follow up orders from material preparation to delivery. Professional in shipping, fast delivery,
Packed well in container, customs clearance smoothly, tracking the goods from the port of l
Oading to the port of destination.
2. Professional manufacturer
Specifications and Marks can be produced according to customers 'requirements.
Being in this field for 12 years, has very good relationship with factories.
3. Personalized Service
Quality assurance, reasonable prices, service country of origin, experience technical staff,
Excellent product performance.
4. Stock
There are emergency stocks for regular sizes perennially. This to save time for you.
30% advanced by T/T, the balance should be paid after see the copy of the
B/L; L/C at sight; Western Union.
How happy we are, To meet friends from afar!
Take us, take the new world.
| Size/inch | W.L.L/ton | PIN DIA/inch | I.L/inch | N.W/lbs |
| 1/2 | 2 | 5/8 | 1-5/8 | 0.75 |
| 5/8 | 3-1/4 | 3/4 | 2 | 1.47 |
| 3/4 | 4-3/4 | 7/8 | 2-3/8 | 2.52 |
| 7/8 | 6-1/2 | 1 | 2-13/16 | 3.85 |
| 1 | 8-1/2 | 1-1/8 | 3-3/16 | 5.55 |
| 1-1/8 | 9-1/2 | 1-1/4 | 3-9/16 | 7.60 |
| 1-1/4 | 12 | 1-3/8 | 3-15/16 | 10.81 |
| 1-3/8 | 13-1/2 | 1-1/2 | 4-3/8 | 13.75 |
| 1-1/2 | 17 | 1-3/4 | 4-13/16 | 18.50 |
| 1-3/4 | 25 | 2 | 5-3/4 | 31.40 |
| 2 | 35 | 2-1/4 | 6-3/4 | 46.75 |
| 2-1/2 | 55 | 2-3/4 | 8 | 85.00 |
| 3 | 85 | 3-1/4 | 8-1/2 | 124.25 |
