| Prod Model: |
U. S Type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Hook&Hook Turnbuckle |
| Size: |
5/16''*4-1-1/4''*24 |
| Brand Name: |
Loadstar |
| Color: |
Zinc Color |
| Surface: |
Electric Galvanzied /Hot DIP Galvanzied |
| Processing: |
Forged Hook and Cast Body |
| Packages: |
PP Bags+Gunny Bags or Cartons ,Then Packed on Pall |
| Delivery Time: |
Within 15-30days |
| Samples: |
for Free |
| Material: |
Steel |
Product Description

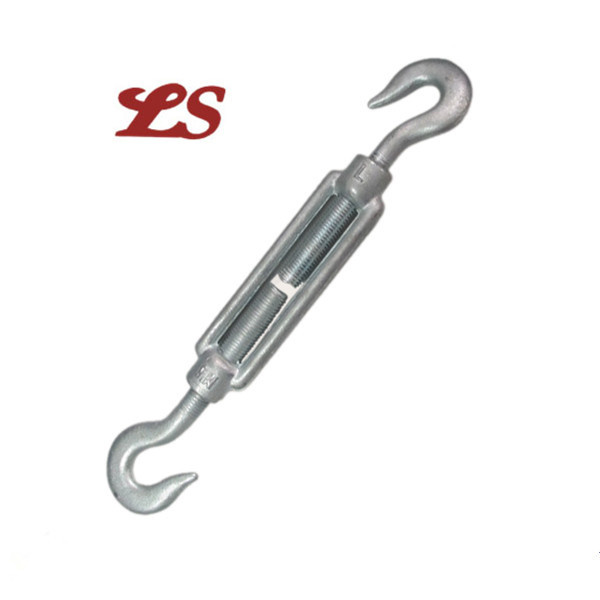

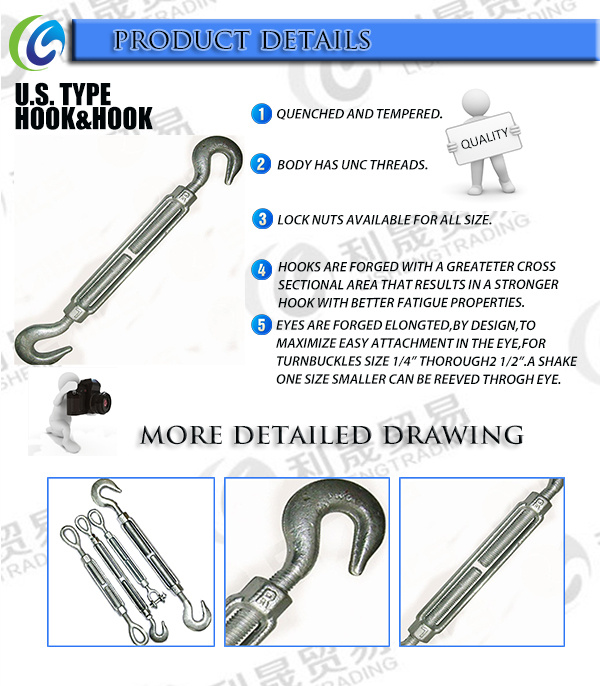

U.S Type Hook&Hook Forged Turnbuckle
We could offer5/16''*4-1-1/4''*24size US type turnbuckle, any other inquiry, pls inform us, we could give you a prompt reply.
With a history of many years, our company has advanced equipemnt and testing facilities. According to the international standards, it can manufa-cture many types of turnbuckles.
Galvanized us type turnbuckle are widely used in various industries. Turnbuckle are used in Industry and Construction; Suitable for wire rope.
Double Hook Turnbuckle
1)PP bags
Size: As your require
Weight: Different size different packing
2)Carton
Size: 35*40*25(cm)
Weight: 250g
We could pack the turnbuckle in all kinds of packing as you like and requirements.
30% advanced by T/T, the balance should be paid after see the copy of the B/L; L/C at sight; Western Union.
Cable turnbuckle
1. Purchase order tracking
Follow up orders from material preparation to delivery. Professional in shipping, fast delivery,
Packed well in container, customs clearance smoothly, tracking the goods from the port of loading to the port of destination.
2. Professional manufacturer
Specifications and Marks can be produced according to customers 'requirements.
Being in this field for 12 years, has very good relationship with factories.
3. Personalized Service
Quality assurance, reasonable prices, service country of origin, experience technical staff,
Excellent product performance.
4. Stock
There are emergency stocks for regular sizes perennially. This to save time for you.
We are professional supplier for turnbuckles, we have professional team and high efficent working ability, we could try our best to meet your any requirements.
We are a new companywith young and studious team. But, we have done
Export and import about 11 yearsfrom 2003 till now.
Take us, take the new world.

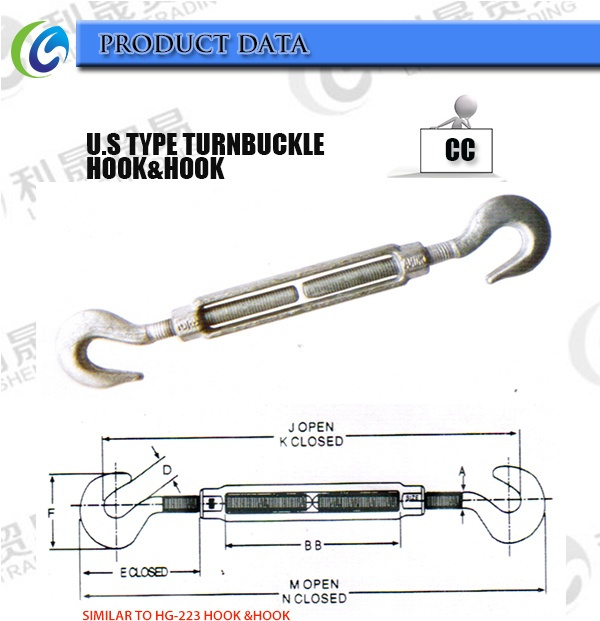

| LS U.S TYPE TURNBUCKLE CC |
|
| THEAD DIATAKE UP(MM) | WLL(T) | WEIGHT EACH(KG) | DIMENSIONS |
| A | D | E | F | J | K | M |
| 6.35x102 | 0.18 | 0.13 | 6.35 | 11.43 | 40.37 | 32.26 | 282.5 | 180.9 | 303.3 |
| 7.94x114 | 0.32 | 0.22 | 7.87 | 12.7 | 49.28 | 38.1 | 325.4 | 211.1 | 350.8 |
| 9.53x152 | 0.45 | 0.35 | 9.65 | 14.22 | 58.42 | 44.96 | 419.1 | 266.7 | 450.1 |
| 12.7x152 | 0.68 | 0.72 | 12.7 | 16.76 | 74.68 | 57.91 | 478 | 300.2 | 517.7 |
| 12.7x305 | 0.68 | 1.02 | 12.7 | 16.76 | 74.68 | 57.91 | 782.8 | 452.6 | 822.5 |
| 15.9x152 | 1.02 | 1.22 | 16 | 22.86 | 93.73 | 71.37 | 520.7 | 336.6 | 571.5 |
| 15.9x305 | 1.02 | 1.59 | 16 | 22.86 | 93.73 | 71.37 | 825.5 | 490 | 876.3 |
| 19.1x152 | 1.36 | 1.76 | 19.05 | 24.89 | 114.81 | 84.58 | 568.5 | 378 | 629.4 |
| 19.1x305 | 1.36 | 2.46 | 19.05 | 24.89 | 114.81 | 84.58 | 873.3 | 530.3 | 934.2 |
| 19.1x457 | 1.36 | 3.68 | 19.05 | 24.89 | 114.81 | 84.58 | 1178 | 682.8 | 1239 |
| 22.2x305 | 1.81 | 3.67 | 22.35 | 28.7 | 131.8 | 96.01 | 914.4 | 565.2 | 984.3 |
| 25.4x305 | 2.27 | 5.41 | 25.4 | 31.75 | 148.34 | 107.95 | 955.8 | 600.2 | 1034 |
| 25.4x457 | 2.27 | 6.35 | 25.4 | 31.75 | 148.34 | 107.95 | 1261 | 752.6 | 113.8 |
| 25.4x610 | 2.27 | 7.95 | 25.4 | 31.75 | 148.34 | 107.95 | 1565 | 905 | 1643 |
| 31.8x305 | 2.95 | 9.34 | 31.75 | 38.1 | 183.39 | 130.3 | 1028 | 658.9 | 1119 |
| 31.8x457 | 2.95 | 10.43 | 31.75 | 38.1 | 183.39 | 130.3 | 1332 | 811.3 | 1424 |
| 31.8x610 | 2.95 | 12.25 | 31.75 | 38.1 | 183.39 | 130.3 | 1637 | 963.7 | 1729 |
| 38.1x305 | 3.4 | 12.47 | 38.1 | 47.75 | 211.84 | 146.1 | 1116 | 735.1 | 1205 |
| 38.1x457 | 3.4 | 14.06 | 38.1 | 47.75 | 211.84 | 146.1 | 1421 | 887.5 | 1510 |
| 38.1x610 | 3.4 | 17.01 | 38.1 | 47.75 | 211.84 | 146.1 | 1726 | 1040 | 1815 |
