| Prod Model: |
FJ12031AST |
| Condition: |
Brand New |
| Product Type: |
120mm Plastic Blade AC Axial Fan |
| Bearing: |
Sleeve Bearing |
| Warantee: |
One Year Guarantee Time |
| Blade Material: |
Plastic |
| Electric Current Type: |
AC |
| Mounting: |
Free Standing |
| Certification: |
CCC |
Product Description

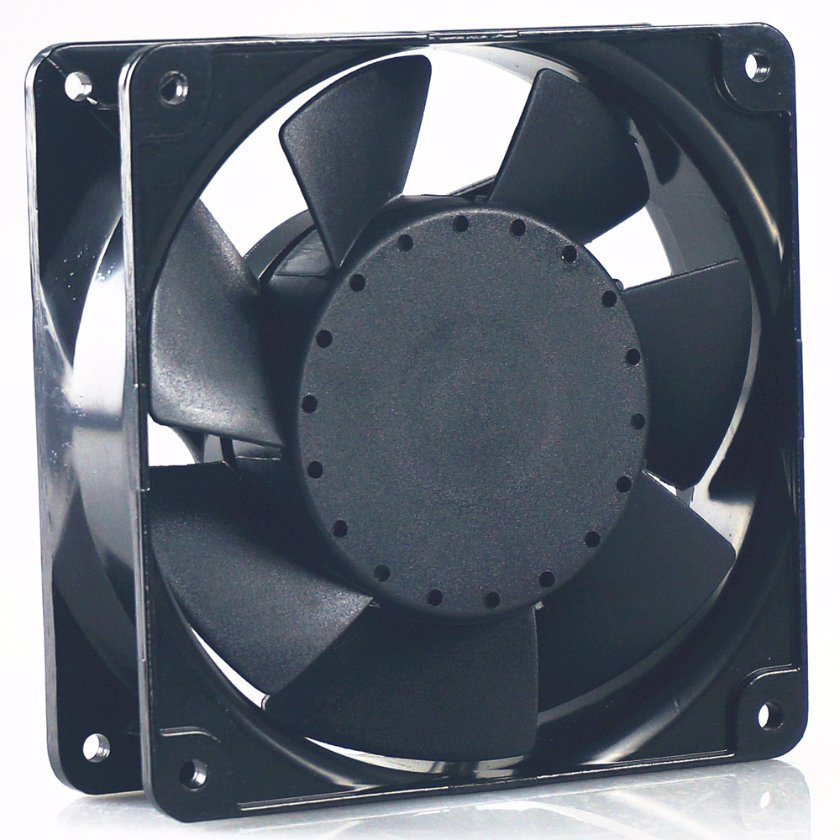

Blower Fan 110-120v sleeve bearing (FJ12031AST)
FJ12031AST
Frame
Aluminium alloy die-casting, surfaces is finished by black
anti-corrosion treatment.
Impeller
Black plastic PBT UL94V-0
Operation Temperature/Humidity Range:
(under unconcretionary state)
-30ºC ~ +60ºC (temperature), 0% ~ 95% (himidity)
Protection
Impedance Protected
Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz
Insulation System
design according to IEC61858 Grade B,
Protection Grade
IP34
| Type | Axial Fan |
| Frame Material | Aluminum alloy die-casting |
| Impeller | Black Plastic PNT UL94V-0 |
| Motor Structure | Shaded pole motor |
| Protection | Impedance Protected |
| Temperature & Humidity | -40ºC ~ +65ºC, 0% ~ 95% |
| Withstand Voltage | AC 1800V at 0.5mA 50/60Hz |
| Power connection | UL3385-22 Lead wire |
| Protection Grade | IP34 |
| Insulation Systerm | B |
| Model Number | FJ12031AST |
| Voltage | 110-120VAC |
| Power: | 50/60Hz |
| Air Volume | 85-95CFM |
| Speed | 2500-2700RPM,Singel speed |
| Certification | CE, ROHS UL, CSA |
| Unit weight | 0.51KG |
| Color | Black |
Packaging & Delivery:Packaging Details: 36 PCS/CTN
Weight: 20.2KGS/CTNSize: 32.5*42.25*34Delivery Detail (sample): Shipped in 3-8 days after payment
FAQ Q: Are you a factory or trading company?A: We are a factory.Q: Where is your factory located? How can I visit there? A: Our factory is located in Yueqing City,Zhejiang Province, China, about 30 mins from Wenzhou Airport .Warmly welcome to visit us!Q: What products do you make?A: We have been producing AC cooling axial fans , Centrifugal fans, Filter fans etc since established in 2006.Q: What information do you need in order to get a quotation? A: Generally, we need the information like quantity, size, voltage , air flow to select a right or a similar fan for you and quote you.Q: Can I have samples for testing before placing orders? A: Yes. We suggest that our customers have some samples of their required fans for quality testing first.Q: Can I have a discount for the quoted price? A: Yes. The price is quoted based on the quantity.Q: How is your quality control systerm? A : Each fan needs to go though strict inspection by QC before delivery, or inspected by 3rd party who customer appoints.Q: Does the product have CE,UL etc approval?A : Yes. All of our products have CE,RoHS approval, some have UL approval.Q: Can you make the fan with our company's logo?A : Yes.Q: What is your payment term?A : TT,LC. Jason Fan was established in year 2006. Being a professional AC fan enterprise of design and production, Jason Fan has developed three main series of fans,which covering AC axial fans, air filter fans and centrifugal fans. In 2013, we completed the development of a DC type fan which applied for welding industry. Meanwhile, we are
