UL/FM Ductile Iron Grooved Pipe Fittings and Couplings
| Price: |
US $ 0.5-48/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HQD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Finish: |
Paint, Epoxy, Galvanization |
| Thread: |
NPT, BSPT, Bsp |
| Pressure: |
300psi - 750psi |
| Gasket: |
EPDM |
| Color: |
Red-Ral3000 / Orange/ Blue/ White |
| Structure: |
Universal |
| Standard: |
Standard |
| Connection: |
Grooved and Threaded |
| Flexible Or Rigid: |
Rigid or Flexible |
| Material: |
Ductile Iron |
Product Description

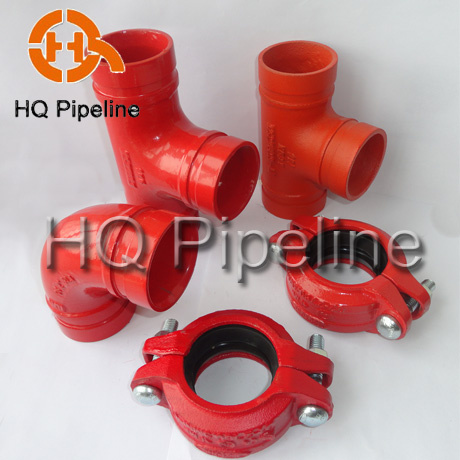

Ductile iron grooved pipe fittings
Ductile iron grooved couplings
FM and UL approved
| 1. Type: Grooved Elbow, tee, cross, reducer, cap, grooved coupling, mechanical tee, mechanical cross, flange adaptor ... |
| 2. Material: Ductile Iron, ASTM A536, Grade 65-45 |
| 3. Certificates: FM & UL & CE |
| 4. Pressure rate: 1.6MPA &2.5MPA or 300PSI - 750PSI |
| 5. Connect type: Grooved-thread end & grooved end |
| 6. Size: 1"-16" |
| 7. Finish: Paint, Epoxy or Galvanization |
| 8. Packaging: Wooden cases or pallets or as per customers'requirement |
| 9. Delivery Time: 25 days after order conformed |
| 10. Payment: By T/T or L/C |
11. Applications range:
1) Automatic sprinkler system for fire protection on commercial, civil and municipal constructions like water supplying, gas supplying, heat supplying etc
2) Industrial pipeline system on shipping, mine, oil field, textile, powder plant etc
3) Pipeline system on subway station, railway station, airport, seaport, bridge et |
Qingdao HQ Import & Export Co., Ltd, the export office of HQ Pipeline, which is a professional manufacturer & exporter of all kinds of pipe fittings, flanges and valves in China: Forged Steel Pipe Fittings, Flanges, Butt Weld Pipe Fittings, Nipples and Coupling, UL/FM Ductile Iron Grooved Pipe Fittings, Pipe hangers and Clamps, Gate Valve, Butterfly Valve, Check Valve, Strainers, Ball Valve...And casting and forging OEM/ODM service, which are widely used in the field of petroleum, natural gas, ship building, metallurgy, electric power, chemical industries, fire protection etc.
HQ Pipeline plants are well equipped with advanced production and inspection equipments: 600T Intermediate frequency push-type forming machine, 3500T Hydraulic-pressure machine, 1/5/8tons forging hammer, air forging hammer, high precision machine tools, electrical heating furnaces, heat treatment furnaces, PMI detection equipment, tensile machines, impact testers, hardness testers, metallographic analyzers, digital UT flaw detectors, etc. And also equipped with skilled workers, several engineers.
Through continuous input of R&D, HQ Pipeline strives to technical innovation, and develops new products constantly, provide OEM/ODM service for non-standard products according to customer's drawings or samples.
With maintaining the Total Quality Management (TQM) by Quality Control Section, all products are subject to pass strict inspection at each stage of the production process, from starting material handling to finished product shipping. For years, HQ Pipeline plants have been successively qualified to produce pressure pipeline unit, honored with " Nationwide Quality Credit AAA Brand Enterprise" And " Contract abiding company", certified with ISO9001-2008.
Years of professional pipeline production technics and rich experience, strictly quality control and assurance, years of export experience, reputed pre-sale and after-sale service, continuous development and improvement, we believe that HQ will be your premier partner. We welcome your visit, and look forward to committed to meet your any need for the pipeline products.
