Home Toolbuy Products Ultrathin Hollow Bolt Tools Big Torque Wrench, Electric Torque Wrench, Hydraulic Torque Wrench, Low Profile/Ratchet Wrench
Ultrathin Hollow Bolt Tools Big Torque Wrench, Electric Torque Wrench, Hydraulic Torque Wrench, Low Profile/Ratchet Wrench
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Description

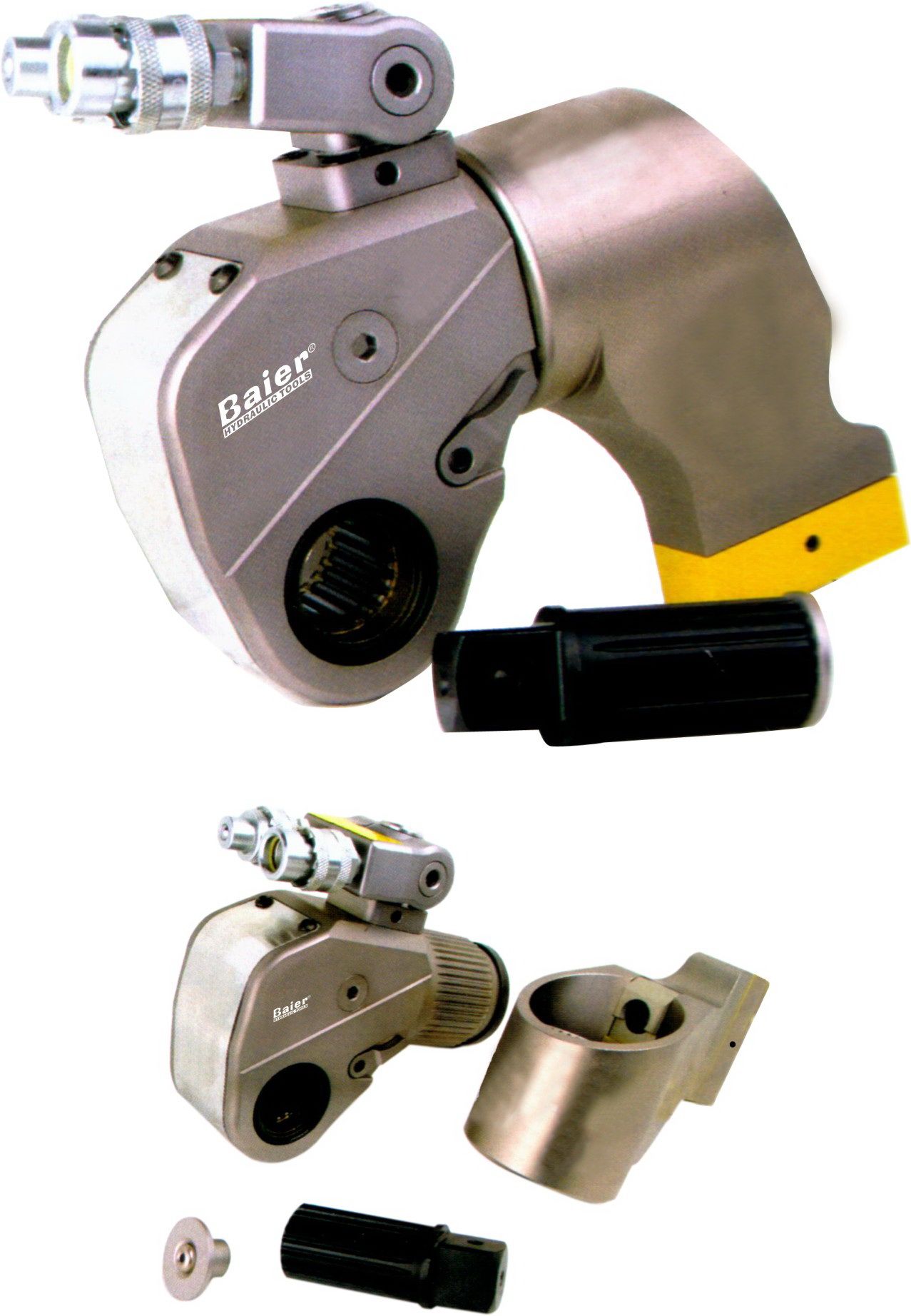

Drive Hydraulic Torque Wrenches RTC
Specifications
1.maximum working pressure 70Mpa, torque accuracy +/-3%
2. aluminum alloy body, high strength, high toughness
3. newly design anti loose links.
4.360 ° × 180 ° hose swivel links, no space limits.
5. square drive connected to high-intensity socket, adapt to a wide range of bolts
6.Easily pressed trigger design lock, 360 degree adjustable reaction arm can be freely fixed to the pivot.| Model | RTC02 | RTC05 | RTC08 | RTC10 | RTC16 | RTC28 | RTC35 | RTC50 | RTC70 |
MAX Torque (Nm)
Nm | 1822 | 4504 | 7505 | 10682 | 15502 | 26652 | 34707 | 48658 | 71886 |
MIN Torque (Nm)
Nm | 188 | 452 | 757 | 1069 | 1555 | 2666 | 3478 | 4866 | 7190 |
Bolt sizeM(mm)
(mm) | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 42-90 | 48-100 | 64-120 | 72-125 |
| Weight(kg) | 2.6 | 5.1 | 7.9 | 11.2 | 15.1 | 26.3 | 34.8 | 50.5 | 87.8 |
| L1(mm) | 145 | 178 | 211 | 222 | 246 | 308 | 323 | 373 | 400 |
| L2(mm) | 174 | 229 | 271 | 293 | 318 | 384 | 401 | 496 | 519 |
| H1(mm) | 50 | 68 | 80 | 90 | 100 | 120 | 137 | 153 | 160 |
| H2(mm) | 72 | 95 | 123 | 134 | 142 | 183 | 200 | 216 | 223 |
| H3(mm) | 96 | 127 | 149 | 167 | 182 | 220 | 247 | 282 | 291 |
| H4(mm) | 131 | 176 | 198 | 217 | 232 | 270 | 297 | 331 | 340 |
| R1(mm) | 26 | 34 | 39 | 47 | 51 | 59 | 66 | 77 | 81 |
| R2(mm) | 85 | 114 | 137 | 153 | 154 | 186 | 199 | 241 | 259 |
axle
| 3/4'' | 1'' | 1 1/2'' | 1 1/2'' | 1-1/2'' | 2 1/2'' | 2 1/2'' | 2 1/2'' | 2 1/2'' |
Established in 2009, BAIER Hydraulic Power(Wuhan) Co., Ltd. is an professional leading manufacturer of hydraulic tools in China. Such as hydraulic torque wrench, hydraulic cylinders, hydraulic nut splitter, hydraulic gear pullers, hyraulic pumps, etc. Our products have been widely used in petrochemical, cement, shipbuilding, steel plant, and heavy constructions areas, etc.Besides, we have gained CE and ISO9001 certificates. Our Factory:

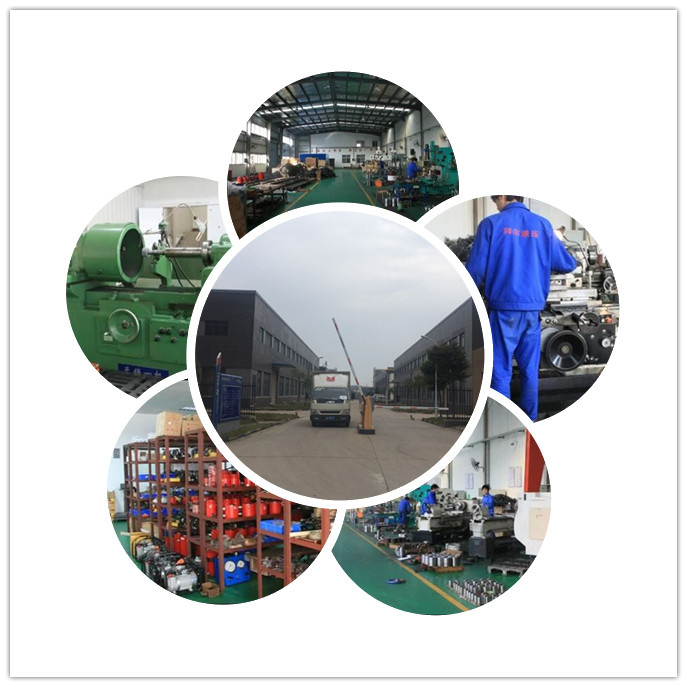

We has established an factory base covering a gross area of 8200 square meters in Qingshan District, Wuhan City, responsible for manufacturing.

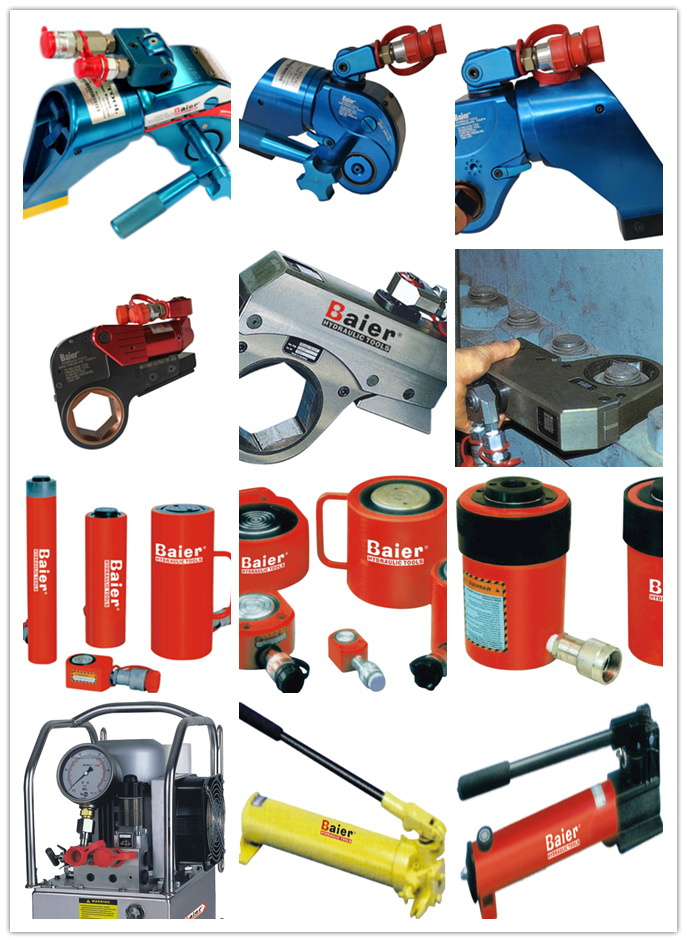

Our main product category includes:
Hydraulic cylinders and jacks
Hydraulic bolting tools such as hydraulic torque wrench
Hydraulic pumps
Hydraulic bolt tensioners, nut splitters.
Our Clients:
Our clients includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Thanks for your time!
Established in 2009, BAIER Hydraulic Power(Wuhan) Co., Ltd. is an professional leading manufacturer of hydraulic tools in China. Such as hydraulic torque wrench, hydraulic cylinders, hydraulic nut splitter, hydraulic gear pullers, hyraulic pumps, etc.
Our products have been widely sold to Europe, South-east Asia and South Africa, and have got high appreciation and trust from all our customers. Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained ISO9001 certificates.
We has established a factory base covering a gross area of 8200 square meters in Qingshan District, Wuhan City. Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our factory has been approved by ISO9001: 2008. Our products have been widely used in petrochemical, cement, shipbuilding, steel plant, and heavy constructions areas, etc. Because our products are widely accepted and approved by our clients in China, we are planning to explore the oversea market by our high quality products and service.
