| Prod Model: |
DFU-M75 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Depth: |
300m |
| Diameter: |
46mm~75mm |
| Size: |
2370*300*500mm |
| Drilling Hole Angle: |
0~360 Degrees |
| Weight: |
Main Rig 360kg |
| System: |
Fully Hydraulic |
| Certificate: |
ISO&CE |
| Usage: |
Ore |
| Power Type: |
Electric |
| Type: |
Core Drilling Rig |
| Condition: |
New |
Product Description

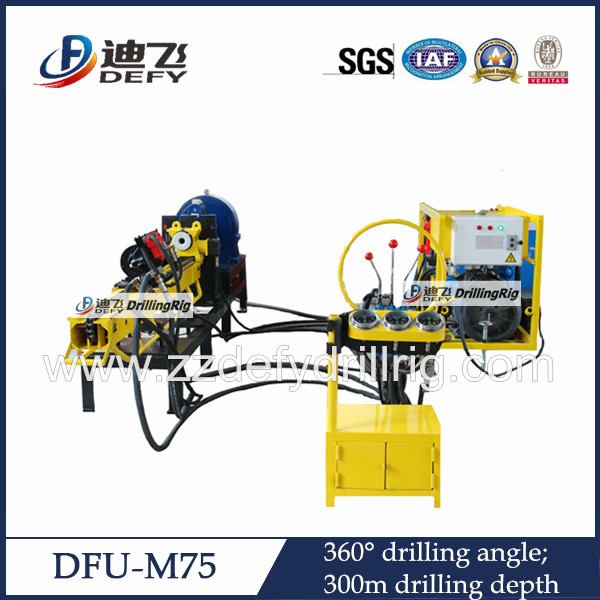

Underground Tunnel Jumbo Drill for all direction coring
1. Application:
All-hydraulic drilling rig is suitable for drilling holes for the purpose of mine exploring, also they could be used in railway engineering, tunneling and water conservancy project, . You will surely benefited a lot by its excellent and reliable performance.
2. Features:
1)Oil pump drive motor to rotate, hydraulic cylinder working without turret.
2)Machine's rotation, feed, pumping and clamping rely on hydraulic transmission, to make drilling work smoothly.
3)Fast drilling speed can achieve arbitrary direction's dip angle drilling, high applicability.
4)Adopts V-guide, the highest principal axis'concentricity.
5)Easy to operate, can be disassembled and easy transport.
3. Machine composition
Tunnel drilling rig is composed of power unit, main machine body, control panel, rotation unit, rod holder, mud pump, etc.
*****************
For more details, please contact us by email or telephone for turn-key solution!
Ms. Sophie Nie
Mobile: 0086 15639080652
Tel.: 0086 371 55819257
|
Model |
Drilling depth (m) |
Drilling hole
diameter (mm) |
Drilling Angle
(degrees) |
Drilling pipe
material |
|
DFU-M75 |
300 |
75~46 |
0~360 |
Steel |
|
DFU- M56-1 |
400 |
56~36 |
0~360 |
Steel or Aluminum |
|
DFU-M56-1 |
550 |
56~36 |
0~360 |
Steel or Aluminum |
|
DFU-M95-1 |
500 |
95~59 |
0~360 |
Steel |
|
DFU-M95-2 |
600 |
95~59 |
0~360 |
Steel |
|
DFU-M95-3 |
700 |
95~59 |
0~360 |
Steel |
|
Drilling Capability of DFU-M75 |
Drilling depth
(m) |
Drilling hole
diameter (mm) |
Drilling pipe diameter (mm) |
Drilling pipe material |
|
180 |
75 |
72 |
Steel |
|
250 |
59 |
55.5 |
Steel |
|
300 |
46 |
42 |
Steel |
