| Price: | US $ 28-35/Piece |
|---|---|
| Min Order: | 2/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | YET905 |
|---|---|
| Frequency: | 303MHz/310MHz/315MHz/433MHz/868MHz Optional |
| Package: | Plastic Bag/Paper Box , Customized |
| Code: | Fixed Code,Learning Code,Rolling Code,Copy Code Op |
| Transmitting Distance: | 50-100 Meters |
| Operating Voltage: | 12V |
| Transmission Speed: | 50-60kHz |
| Use Range: | Industrial Appliance,Car ,Motorcycle,Door Opener,T |
| Frequency Windage: | ±0.2MHz |
| Colour: | Red ,Balck ,Orange and So on Can Be Choosed |
| Material: | Zinc Alloy |
| Type: | Key Lock |
| Style: | Modern |
| Shape: | Mortise Door Lock |
| Anti-theft Standard: | A |
| Part: | Lock |
| Backset: | 60mm |
| Door Thickness Fits: | 35-50mm |
| Lock Cylinder Length: | 65mm |
| Usage: | Alarm |

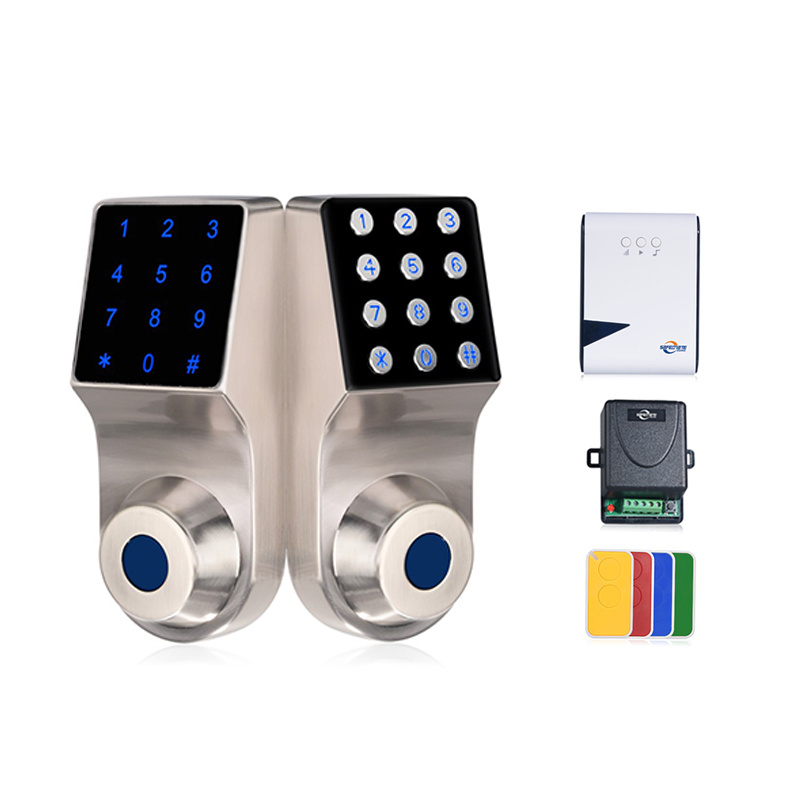

Unicon Vision High Quality Office Home Apartment Smart Finger Print Door Lock YET905
| Manual of Wireless Doorbell Control Kit Table of Contents 1. Function Features ..................................................3 2. Technical Parameters .............................................….4 3. Operating Instructions .............................................…4 4. How to Install ....................................................8 5. Attentions ......................................................9 Function Features 1. A perfect combination of doorbell and gated lock, being convenient and practical; 2. RF data realized with rolling codes to provide the automotive-grade security protection; 3. Simple digital touch keyboard; 4. The all-metal wireless transmitting keyboard is designed through overcoming the limitation in technology and IPX-7 waterproof; 5. Warm prompt for low battery. Function Description
2. Press down the Doorbell button on the password keyboard until the LED light twinkles for three times, indicating the learning is completed successfully. 3. Long press the Play button for about 7s untill the LED light turns off to eliminate(delete) all codes. 4. Press down the Doorbell button on the password keyboard matched, then, the doorbell will ring. 5. To adjust the volume and set to mute, please press the Volume button. 6. To select different ringing tones, please press the Tone button. 7. To listen to the ringing tone for test, please press the Play button.
1. Methods and steps of learning and code clearing Press down the Learn button on the controller and then release it after the LED light turns on, then, the controller enters the first-time learning status (now the LED light is off); next, press the button to be controlled on the remote control with the LED light always twinkling slowly, indicating the completion of the first time of learning. then press again the Learn button on the controller and release it after the LED light is on to enter the second-time learning status (the LED light is off); then, press down the same button on the remote control with the LED light off after blinking fast for five times, indicating the successful completion of the whole learning. Six types of these remote controls could be learned at most. If the remote controls are lost and you want all of them to be disabled, please long press the Learn button (for over 8s) till the LED light turns off, and then the controller will clear the contents inside the memory automatically. To reuse them, learn again.
2. The initial password is 123456 and the user account is 00. (00 for the master administrator use.) 3. If the information is entered correctly with the keyboard, the buzzer beeps once; if any mistake, it beeps twice. 4. If the password is entered correctly, the buzzer will give a long beep; and then, the password keyboard sends a code of HCS301. 5. Press the doorbell button and send the code of 1527. 6. To restore to factory settings, please input *9#99#999#; to send the password is required to match up with the receiving terminal again. 7. The feature of peep protection is provided for password input. The password could be entered in the format of UUXXPPXX, in which XX could be random numbers. Master administrator operation: 1. If the password of the master administrator is input correctly, the code of HCS301 will be sent (for about 2s). 2. Add or change the password (user group number: 00-21): *1#1#UUPP#. 3. Delete a single user (the master administrator cannot be deleted): *1#3#UU#. 4. Delete all passwords (the master administrator cannot be deleted): *1#5#. User operation: Change the password: *5#UUCP#NP# CP: old password NP: new password Note: this product could give a warm prompt for low battery. When the total voltage of four batteries is less than 4.4V, the buzzer will beep for three times every minute to remind you to replace the batteries.
| ||||||||||||||||
