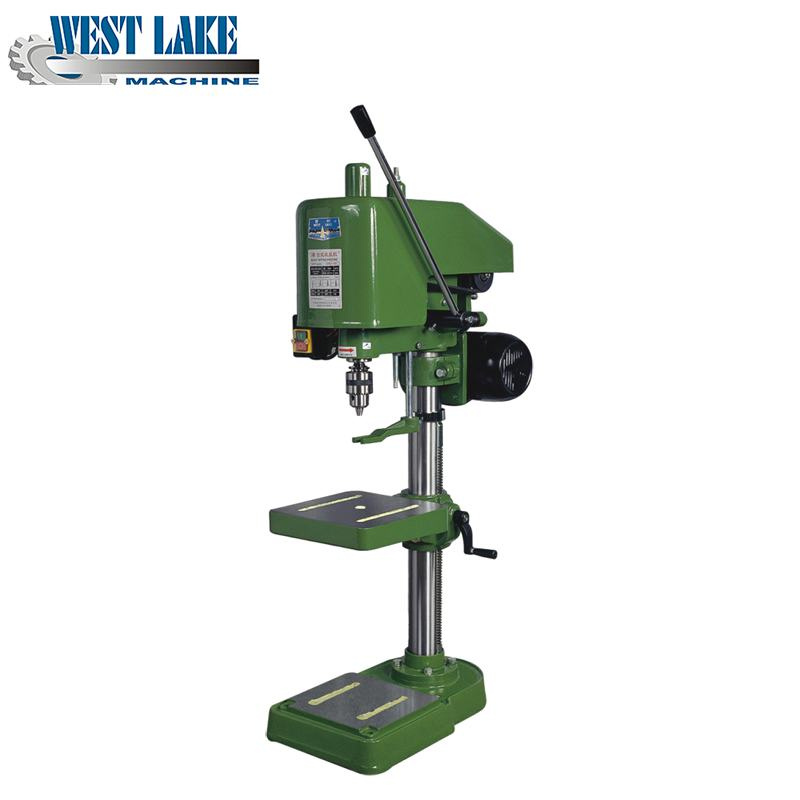

Universal Vertical Tapping Machine Tool with ISO 16mm (SWJ-16)
| Price: |
US $ 0.01/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
SWJ-16 |
| Funtion: |
Tapping |
| Applied Materials: |
The Casting |
| Control Mode: |
Manual |
| Transmissin Way: |
Machinery Friction Clutch |
| Max.Tapping Capacity: |
16mm |
| Features: |
Little Impact and Libration |
| Equipped: |
Over Loading Protection Mechanism |
| Performance: |
Spindle Can Rotate Positive and Negative |
| Color: |
Green |
| Areas Of Application: |
Processing and Machinery Industrial |
| Layout: |
Vertical |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Structure: |
Vertical Tapping Machine |
| Hole Diameter: |
16mm |
Product Description
Main Feature:1.It use machinery friction cluth make the spindle positive and negative rotation.
2.Little impact and rotation.
3.Machinery friction cluth was equipped with over loading protection mechanism.It can protect tap.
4.The modul with K is equipped with tapping chuck.Technical Data:| Max.tapping capacity(cast/steel) | M16/M12 |
| Diameter of column | 73mm |
| Spindle speeds range | forward:240-570rpm |
| reverse:275-650rpm |
| Max.distance spindle nose to worktable | 492/450mm |
| Max.distance spindle nose to base | 676mm |
| Distance spindle axis to column surface | 183mm |
| Spindle taper | B18 |
| Spindle travel | 50mm |
| Dimension of worktable surface | 270×280mm or Φ320mm |
| Dimension of base surface | 254×237mm |
| Overall height | 1230mm |
| Motor | 750w |
| N.W./G.W. | 120/102kgs |
| Ship measurement | 79×46×134cm |
The Pictures of Machine Parts:
