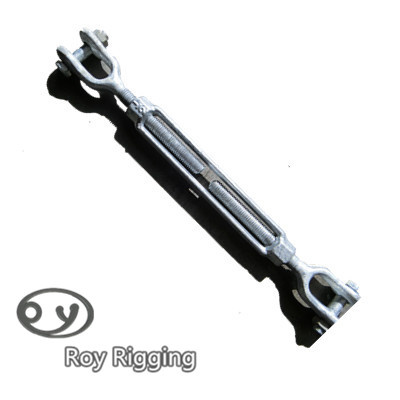

Us Fed Spec Galvanised Drop Forged Jaw & Jaw Turnbuckle

Name: Us Fed Spec Galvanised Drop Forged Jaw & Jaw Turnbuckle
Brand: tool-buy.com
SKU: 696790812
Availability: InStock
Rating: 4.5 (133 reviews)

Price:	US $ 0.65/Piece
Trade Terms:	FOB,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Qingdao Roy Hardware Rigging Co., Ltd.

Showroom Product Company Profile

Prod Model:	HG-228
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	1/4 *4
Weight:	0.36 Lbs./ 0.16kg
Wll:	500 Lbs.
Material:	Steel

Product Description

SPECIFICATION:

Name:US Fed Spec Galvanised Drop Forged Jaw & Jaw Turnbuckle

Item Number: HG-288

Thread Dia.: 1/4"

Take Up: 4"

Material: Carbon Steel 45#

Weight Each: 0.36lbs. / 0.16kgs

WLL: 500lbs.

FOS: 4:1

DESCRIPTION:

End fittings are Quenched and Tempered; bodies are heat treated by normalizing

Hot Dip galvanized, zinc plated or self-colored.

In-line or straight pull application.

Lock Nuts available for all sizes.

Fatigue Rated.

Thread Diameter & Take Up (In.)	Work Load Limit (Lbs.)*	Unit Weight (Lbs.)	Dimensions (Inches)
Thread Diameter & Take Up (In.)	Work Load Limit (Lbs.)*	Unit Weight (Lbs.)	A	B	E Closed	G	J Open	K Closed	M Open	N Closed	BB
1/4 x 4	500	.36	.25	.45	1.66	.64	11.19	7.19	12.18	8.18	4.07
5/16 x 4-1/2	800	.56	.31	.50	2.02	.87	13.07	8.57	14.12	9.62	4.58
3/8 x 6	1200	.85	.38	.53	2.11	.85	16.25	10.25	17.50	11.50	6.10
1/2 x 6	2200	1.82	.50	.64	3.22	1.07	18.65	12.65	20.14	14.14	6.03
1/2 x 9	2200	2.29	.50	.64	3.20	1.07	24.94	15.94	26.43	17.43	9.36
1/2 x 12	2200	2.71	.50	.64	3.20	1.07	30.94	18.94	32.43	20.43	12.36
5/8 x 6	3500	3.21	.63	.79	3.90	1.32	19.74	13.74	21.82	15.82	6.03
5/8 x 9	3500	3.95	.63	.79	3.89	1.32	26.08	17.08	28.16	19.16	9.39
5/8 x 12	3500	4.58	.63	.79	3.89	1.32	32.08	20.08	34.16	22.16	12.39
3/4 x 6	5200	4.80	.75	.97	4.71	1.52	21.09	15.09	23.68	17.68	6.13
3/4 x 9	5200	5.85	.75	.97	4.68	1.52	27.49	18.49	30.08	21.08	9.59
3/4 x 12	5200	6.72	.75	.97	4.68	1.52	33.49	21.49	36.08	24.08	12.59
3/4 x 18	5200	8.45	.75	.97	4.71	1.52	45.49	27.49	48.08	30.08	18.53
7/8 x 12	7200	9.37	.88	1.16	5.50	1.77	34.65	22.65	37.62	25.62	12.16
7/8 x 18	7200	11.80	.88	1.16	5.50	1.77	47.12	29.12	50.09	32.09	18.63
1 x 6	10000	10.40	1	1.34	6.09	2.05	23.82	17.82	27.18	21.18	6.18
1 x 12	10000	13.80	1	1.34	6.09	2.05	35.82	23.82	39.18	27.18	12.18
1 x 18	10000	17.10	1	1.34	6.09	2.05	47.82	29.82	51.18	33.18	18.18
1 x 24	10000	21	1	1.34	6.06	2.05	60.42	36.42	63.78	39.78	24.84
1-1/4 x 12	15200	21.90	1.25	1.84	8.09	2.82	39.37	27.37	43.58	31.58	12.06
1-1/4 x 18	15200	25.90	1.25	1.84	8.09	2.82	51.37	33.37	55.58	37.58	18.06
1-1/4 x 24	15200	29.80	1.25	1.84	8.09	2.82	63.93	39.93	68.14	44.14	24.62
1-1/2 x 12	21400	32.60	1.50	2.06	8.93	2.81	40.76	28.76	45.68	33.68	12.32
1-1/2 x 18	21400	38	1.50	2.06	8.93	2.81	52.76	34.76	57.68	39.68	18.32
1-1/2 x 24	21400	43.50	1.50	2.06	8.93	2.81	65.38	41.38	70.30	46.30	24.94
1-3/4 x 18	28000	53.50	1.75	2.60	9.36	3.35	53.35	35.35	59.16	41.16	18.37
1-3/4 x 24	28000	61.10	1.75	2.60	9.36	3.35	65.35	41.35	71.16	47.16	24.37
2 x 24	37000	96.30	2	2.62	11.80	3.74	69.64	45.64	76.72	52.72	24.48
2-1/2 x 24	60000	167	2.50	3.06	13.26	4.44	72.97	48.97	82.18	58.18	24.6
2-3/4 x 24	75000	199	2.75	3.69	14.92	4.19	74.75	50.75	85.50	61.50	24.65

Established in 1996, Roy Rigging Hardware Co., Ltd. Specializes in rigging hardware and electrical power hardware products. Locate in Qingdao, we enjoy convenient transportation networks, like Qingdao port. We produce nearly 300 kinds of products including earth anchors, rigging accessories, wire rope fittings, shackles, hooks, etc. The products are exported to more than 30 countries. The annual output is around 3000 ton and increasing year by year.

Covering an area of 15, 000 square meter, our factory is equipped with six advanced production lines, and operate under strict QC guidelines to guarantee high-quality product at competitive prices. Company currently employs more than 80 people including high-qualified engineers to provide customized solution for OEM/ODM projects.
