| Prod Model: |
3/16''-3'' |
| Product Name: |
Us Type Alloy Steel Red Bow Shackle |
| Size: |
3/16''-3'' |
| Delivery: |
10-20 Days |
| Application: |
for Lifting |
| B.L.: |
6 Times The W.L.L |
| Process: |
Forged |
| Sample: |
for Free |
| Type: |
G2130 Bow Shackle |
| MOQ: |
100 |
| Surface Finish: |
Powder Plastified |
| Material: |
Alloy Steel |
| Shape: |
Bow Shackle |
| Color: |
Red or Yellow |

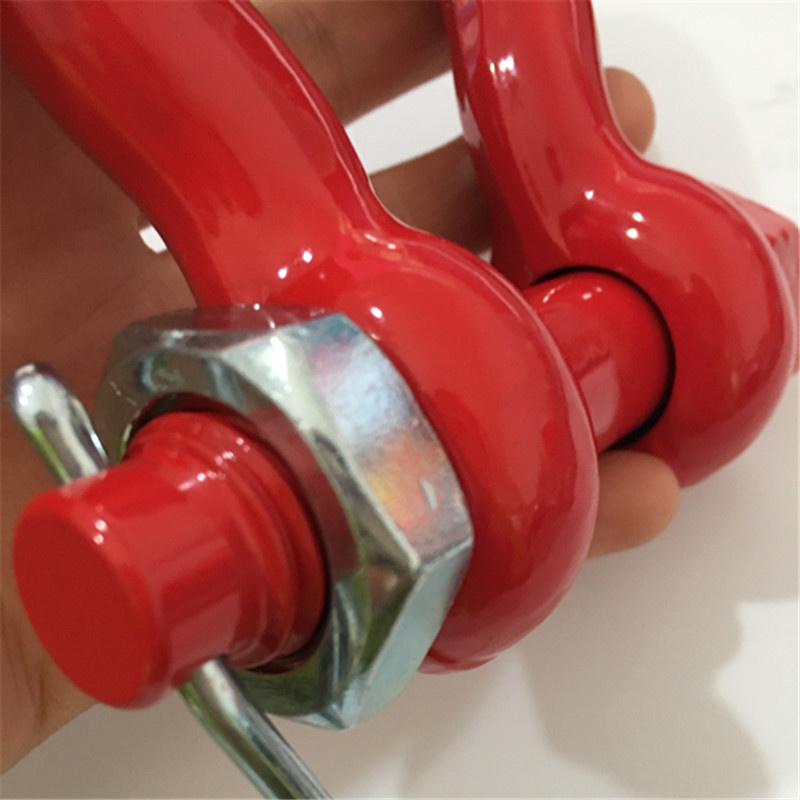

Product Description
For lifting application.
Forged -quenched and tempered.
Bow body -surface:powder plastified.
Nut-surface finish: eletric galvanized
Bolt -surface finish: powder plastified.

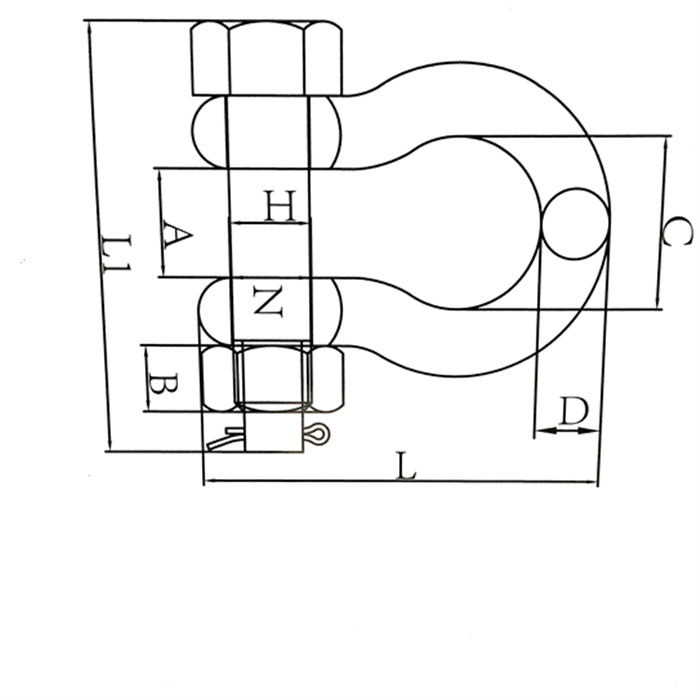

| ITEM NO. 362- | weight/lbs | wll/t | B.l/t | A+/-1.5 | C+/-1.5 | D+/- 1 | L+/-3 | H+0.2 | N | L1+/-0.5 | B |
| 3/16 | 0.06 | 0.33 | 1.98 | 9.7 | 15.3 | 4.8 | 37.5 | 7 | 6 | 32 | 3.2 |
| 1/4 | 0.11 | 0.5 | 3 | 11.9 | 19.8 | 6.35 | 46.8 | 8.7 | 7.5 | 40 | 4 |
| 5/16 | 0.22 | 0.75 | 4.5 | 13.5 | 21.4 | 8 | 53 | 11.5 | 9.5 | 48.4 | 5 |
| 3/8 | 0.33 | 1 | 6 | 16.8 | 26.2 | 9.7 | 63.3 | 13 | 11.2 | 58.8 | 6 |
| 7/16 | 0.49 | 1.5 | 9 | 19 | 29.5 | 11.2 | 78 | 15 | 13.4 | 65.9 | 7 |
| 1/2 | 1.01 | 2 | 12 | 20.6 | 33.3 | 12.7 | 83.3 | 17 | 15.2 | 73.7 | 8 |
| 5/8 | 1.60 | 3.25 | 19.5 | 27 | 42.9 | 17.5 | 106.5 | 21 | 19 | 94 | 10 |
| 3/4 | 2.42 | 4.75 | 28.5 | 32 | 50.8 | 20.6 | 126.5 | 23.5 | 21.2 | 108.7 | 10 |
| 7/8 | 3.95 | 6.5 | 39 | 36.6 | 58 | 24.6 | 148.1 | 26.5 | 24 | 127.8 | 12 |
| 1 | 5.66 | 8.5 | 51 | 43 | 68.4 | 27 | 166.6 | 29.5 | 27 | 145.8 | 13.5 |
| 1-1/8 | 8.27 | 9.5 | 57 | 46 | 74 | 31.75 | 190 | 32 | 30 | 160.6 | 15 |
| 1-1/4 | 11.71 | 12 | 72 | 51.6 | 82.6 | 35 | 209.6 | 38.5 | 36 | 181.4 | 18 |
| 1-3/8 | 15.83 | 13.5 | 81 | 57.2 | 92.2 | 38.1 | 232.7 | 41 | 39 | 188.3 | 19 |
| 1-1/2 | 20.8 | 17 | 102 | 60.5 | 98.6 | 41.2 | 254 | 41.5 | 39 | 211 | 20 |
| 1-3/4 | 33.91 | 25 | 150 | 73.2 | 127 | 57.2 | 313.5 | 50.5 | 48 | 281.6 | 39 |
| 2 | 52.25 | 35 | 210 | 82.5 | 146 | 61 | 347.5 | 58.5 | 56 | 311 | 46 |
| 2-1/2 | 98.25 | 55 | 330 | 105 | 184.2 | 79.5 | 453.2 | 70..5 | 68 | 403 | 58 |
| 3 | 154 | 85 | 510 | 127 | 200.2 | 92 | 546 | 82.5 | 80 | 476 | 64 |
Warning : Ultimate load is 6 times the Working Load Limit
For Working load limit reduction due to side loading applications see instructions .
The above Working Load Limit is based on in-line load 0 .
NEVER EXCEED WORKING LOAD LIMIT !!!
