| Prod Model: |
US Type drop forged Turnbuckle with hook and eye |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface: |
Galavanized |
| Size: |
1/4*4-2-3/4*24 |
| Product: |
Turnbuckle Jaw and Jaw |
| Material.: |
Cast Iron/45# |
| Package: |
Gunny Bag+ Iron Pallet |
| Certificate: |
ISO, Ce, SGS |
| Product Name: |
Jaw Turnbuckles |
| Payment: |
T/T |
| Product Usage: |
Lifting Work |
| Product MOQ: |
1000PCS |
| Material: |
Steel |
Product Description
Basic Product Info.

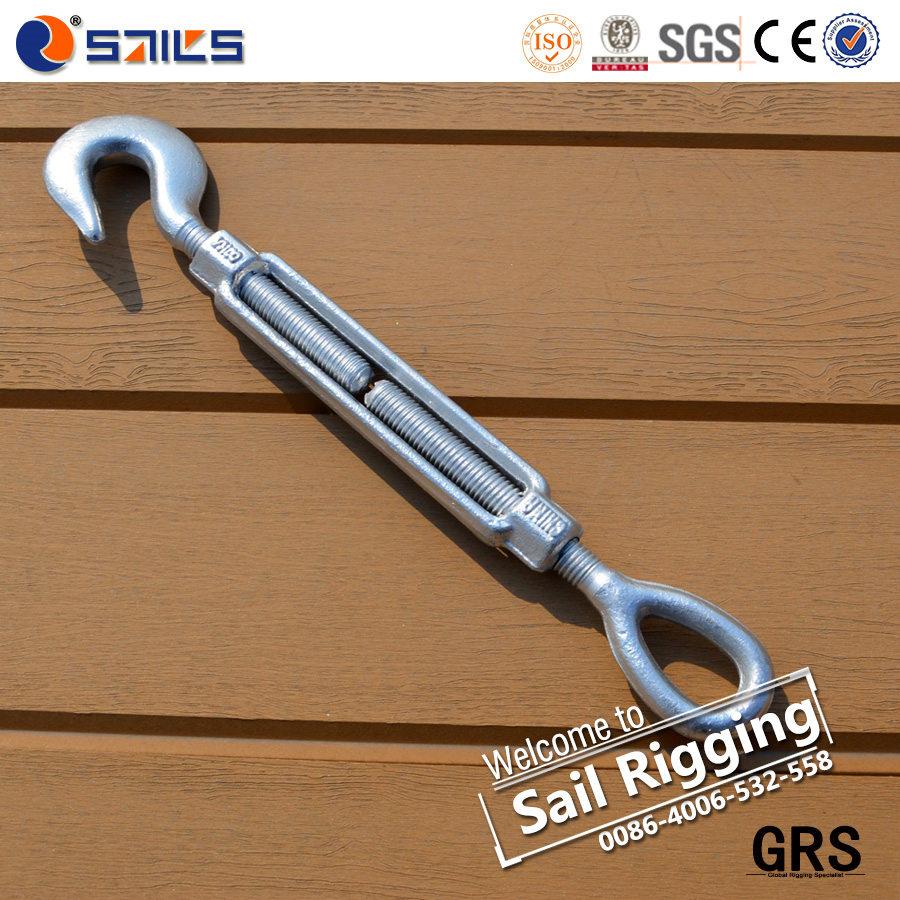

Name: US Type drop forged Turnbuckle with hook and eye
Material: Carbon Steel
Surface: Galvanized
Size: 1/4*4-2-3/4*24
Packing: Gunny bag+ iron pallet
Product Description
1.Focus on Manufacturing Rigging Hardware over 18 Years.
2.BV and SGS Assessed Factory
3.ISO9001:2008 International Quality System Certificates
4.2000 Suqare meter warehourse to Guarantee Fast Delivery
High Tensile Turnbuckle Chain Turnbuckle Jaw and Jaw
Commodity name | US Type drop forged Turnbuckle with hook and eye |
| Brand name | SailRigging |
| Usage | Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings |
| Main standard | US type , DIN1480 type, JIS type |
| Material | Carbon steel, Alloy steel, Stainless steel 304 or 316 |
| Finish | Hot Dipped Galvanized, Electro Galvanized, Color Painted, High polished, Mirror Polished |
| Technology | Drop forged, Precision Casting |
| Size | Different size available (1/4"-2 1/2") |
| M.O.Q | 100PCS per Size |
| WLL | 0.5T-55T |
| MBS | 6 times WLL or 4 times WLL |
| Packing | Gunny bag or carton and pallet / by customer requirements. |
| Delivery time | 10-20days after order confirmation |
| Payment term | T/T, L/C, Western Union |
| Business type | Manufacturer, trading |
| Certifications | ISO9001,CE,BV,SGS |
| Notes | Special specifications and marks can be made according to customers requirements; |
| Main products | Eye bolts,Shackles,Turnbuckles,Wire Rope Clips,Load binders,Lifting Hooks,
Connecting Links,Master Links,Swivels and many other rigging hardwares. |
Dear Customers:
Welcome to visit our website and hope our products will satisfy you.
We think creatively and manufacture precisely to meet your needs.And we have our own factory and R&D Center.
Our main products are shackles,eye bolts,wire rope clips,load binders,turnbuckles,lifting hooks,connecting links,swivels and many other rigging products.
Just slow down your fast lifestyle and enjoy our products.
Your Faithfully
SailRigging
FAQ
>> 1.Are you a factory or a trading company?
1.We are a factory focused on rigging hardware over 18 years.
2.Our main products are shackles,eye bolts and nuts. turnbuckles, wire rope clips, hooks and load binders.
3.We have 6 production lines with advanced machines over 30 like friction presses, air hammer, punching machines,etc.
4.We own warehouse over 3000 square meters.
5.We have numerous distributors at home and board.
>> 2.How do you control your quality?
1.Selection of high-quality steel material from famous steel group
2.Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4.The third party product inspections are acceptable.
5.ISO Quality Management System Certificated Factory
6.Inspection before loading
>> 3.What are your advantages compared with others?
1.BV, SGS Field Certification and Assessed Factory
2.Focused on rigging since 1997, Rich experience in Production.
3.Owned factory, the same quality product, the best price.
4.Timely Delivery with the support of 3000 square meters warehouse.
5.Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
6.Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.
Blue Pin D Shackle samples are free for charge.
Professional Sales online to answer your question timely within 12 hours.
Please don't hesitate to contact us for more information about d shackles.Warmly welcome you to visit our factory!Hope we can set up mutually benefically business relationship.

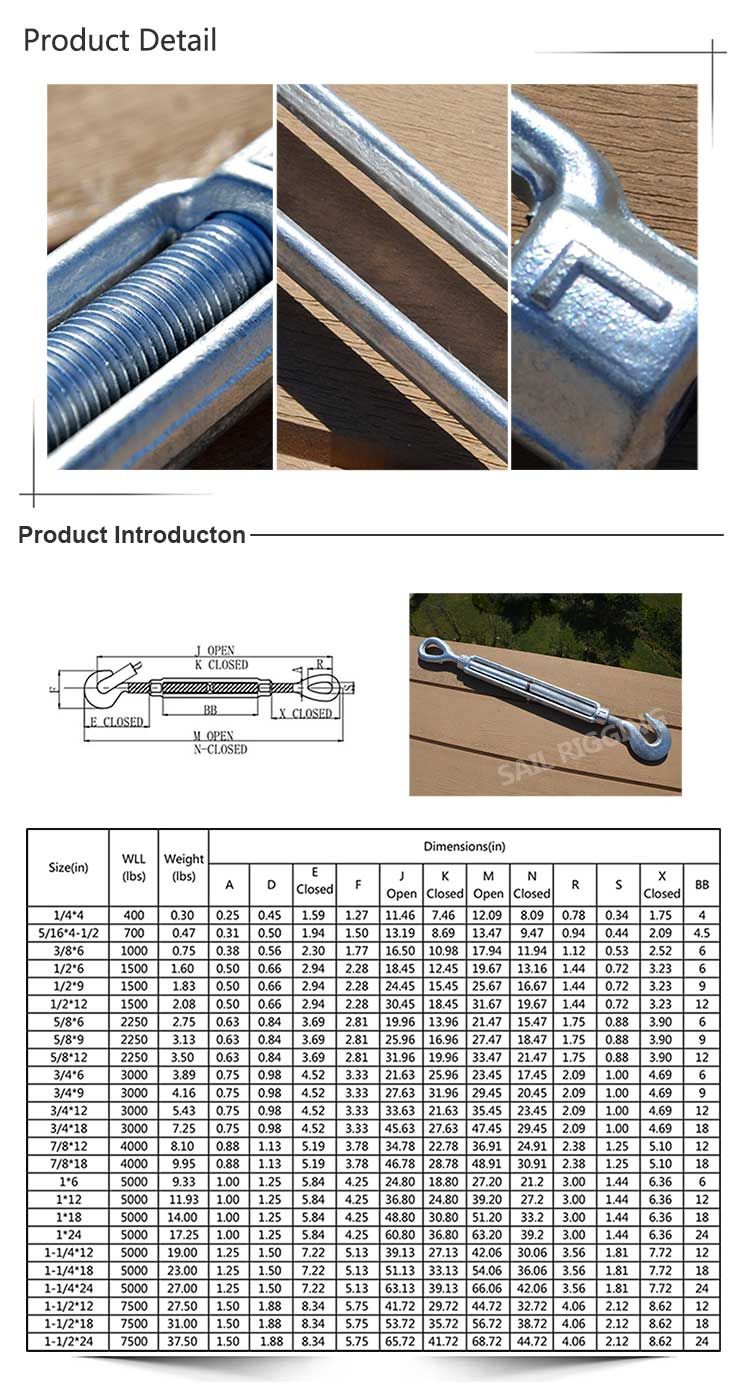

| Dimensions(in) |
Thread Dia
&
Take Up | Working
load
limit
(lbs) | Weight
Each
(lbs) | A | B | E
Closed | G | J
Open |
K
Closed | M
Open |
N
Closed | BB |
| 1/4x4 | 500 | 0.37 | 0.25 | 0.45 | 1.66 | 0.64 | 11.19 | 7.19 | 12.18 | 8.18 | 4.07 |
| 5/16x41/2 | 800 | 0.56 | 0.31 | 0.5 | 2.02 | 0.87 | 13.07 | 8.57 | 14.12 | 9.62 | 4.58 |
| 3/8x6 | 1200 | 0.85 | 0.38 | 0.53 | 2.11 | 0.85 | 16.25 | 10.25 | 17.5 | 11.5 | 6.1 |
| 1/2x6 | 2200 | 1.82 | 0.5 | 0.64 | 3.22 | 1.07 | 18.65 | 12.65 | 20.14 | 14.14 | 6.03 |
| 1/2x9 | 2200 | 2.29 | 0.5 | 0.64 | 3.2 | 1.07 | 24.94 | 15.94 | 26.43 | 17.43 | 9.36 |
| 1/2x12 | 2200 | 2.71 | 0.5 | 0.64 | 3.2 | 1.07 | 30.94 | 18.94 | 32.43 | 20.43 | 12.36 |
| 5/8x6 | 3500 | 3.21 | 0.63 | 0.79 | 3.9 | 1.32 | 19.74 | 13.74 | 21.82 | 15.82 | 6.03 |
| 5/8x9 | 3500 | 3.95 | 0.63 | 0.79 | 3.89 | 1.32 | 26.08 | 17.08 | 28.16 | 19.16 | 9.39 |
| 5/8x12 | 3500 | 4.58 | 0.63 | 0.79 | 3.89 | 1.32 | 32.08 | 20.08 | 34.16 | 22.16 | 12.39 |
| 3/4x6 | 5200 | 4.8 | 0.75 | 0.97 | 4.71 | 1.52 | 21.09 | 15.09 | 23.68 | 17.68 | 6.13 |
| 3/4x9 | 5200 | 5.85 | 0.75 | 0.97 | 4.68 | 1.52 | 27.49 | 18.49 | 30.08 | 21.08 | 9.59 |
| 3/4x12 | 5200 | 6.72 | 0.75 | 0.97 | 4.68 | 1.52 | 33.49 | 21.49 | 36.08 | 24.08 | 12.59 |
| 3/4x18 | 5200 | 8.45 | 0.75 | 0.97 | 4.71 | 1.52 | 45.49 | 27.49 | 48.08 | 30.08 | 18.53 |
| 7/8x12 | 7200 | 9.37 | 0.88 | 1.16 | 5.5 | 1.77 | 34.65 | 22.65 | 37.62 | 25.62 | 12.16 |
| 7/8x18 | 7200 | 11.8 | 0.88 | 1.16 | 5.5 | 1.77 | 47.12 | 29.12 | 50.09 | 32.09 | 18.63 |
| 1x6 | 10000 | 10.4 | 1 | 1.34 | 6.09 | 2.05 | 23.82 | 17.82 | 27.18 | 21.18 | 6.18 |
| 1x12 | 10000 | 13.8 | 1 | 1.34 | 6.09 | 2.05 | 35.82 | 23.82 | 39.18 | 27.18 | 12.18 |
| 1x18 | 10000 | 17.1 | 1 | 1.34 | 6.09 | 2.05 | 47.82 | 29.82 | 51.18 | 33.18 | 18.18 |
| 1x24 | 10000 | 21 | 1 | 1.34 | 6.06 | 2.05 | 60.42 | 36.42 | 63.78 | 39.78 | 24.84 |
| 11/4x12 | 15200 | 21.9 | 1.25 | 1.84 | 8.09 | 2.82 | 39.37 | 27.37 | 43.58 | 31.58 | 12.06 |
| 11/4x18 | 15200 | 25.9 | 1.25 | 1.84 | 8.09 | 2.82 | 51.37 | 33.37 | 55.58 | 37.58 | 18.06 |
| 11/4x24 | 15200 | 29.8 | 1.25 | 1.84 | 8.09 | 2.82 | 63.93 | 39.93 | 68.14 | 44.14 | 24.62 |
| 11/2x12 | 21400 | 32.6 | 1.5 | 2.06 | 8.93 | 2.81 | 40.76 | 28.76 | 45.68 | 33.68 | 12.32 |
| 11/2x18 | 21400 | 38 | 1.5 | 2.06 | 8.93 | 2.81 | 52.76 | 34.76 | 57.68 | 39.68 | 18.32 |
| 11/2x24 | 21400 | 43.5 | 1.5 | 2.06 | 8.93 | 2.81 | 65.38 | 41.38 | 70.3 | 46.3 | 24.94 |
| 13/4x18 | 28000 | 53.5 | 1.75 | 2.6 | 9.36 | 3.35 | 53.35 | 35.35 | 59.16 | 41.16 | 18.37 |
| 13/4x24 | 28000 | 61.1 | 1.75 | 2.6 | 9.36 | 3.35 | 65.35 | 41.35 | 71.16 | 47.16 | 24.37 |
| 2x24 | 37000 | 96.3 | 2 | 2.62 | 11.8 | 3.74 | 69.64 | 45.64 | 76.72 | 52.72 | 24.48 |
| 2 1/2x24 | 60000 | 167 | 2.5 | 3.06 | 13.26 | 4.44 | 72.97 | 48.97 | 82.18 | 58.18 | 24.6 |
| 2 3/4x24 | 75000 | 199 | 2.75 | 3.69 | 14.92 | 4.19 | 74.75 | 50.75 | 85.5 | 61.5 | 24.65 |
We can produce the all size US type bolt pin chain shackle G2150 in the above chart, also we can produce the rigging products according to your drawings or samples(from molding to samples need only 10days), and OEM mode is welcomed.
Our main products include Shackles, Turnbuckles, load binders, Hooks, Eye bolts and nuts, Wire rope clips, swivels, Connecting links, Stainless steel riggings etc. and we warmly welcome friends from all over the world to contact us for business, with the most excellent products and services, to seek common development, and to create prosperity.
Qingdao Sail Rigging Co., Ltd. is a high technology enterprise which has modern management level and ability of manufacturing medium and high grade rigging. We are mainly engaged in the R&D, manufacture and sale of rigging products. We focus on the production of rigging for nearly 30 years. Main products of Qingdao Sail Rigging Co., Ltd. Include shackles, turnbuckles, load binders, hooks, eye bolts and nuts, wire rope clips, thimbles, anchors, snap hooks and stainless steel riggings. We can also take up processing business according to the drawings, samples and materials provided by customers. Various sizes and categories are also available. Our factory is about 2000 square meters. We have advanced production machinery, such as Friction Type Forging machine, Sand Blasting machine, Thread machine and Punching machine. Testing Machinery includes Hardness Tester, C/S Analyzer and Elemental Analyzer. Six production lines are working. The production capacity is 300 tons per month.
Sail Rigging determined to ensure the quality of raw materials and guarantee the production process in strict monitoring. The company has passed many certification authority, such as ISO, CE, SGS, BV, etc. We have senior management personnel and technicians, professional sales and after sale service team, advanced production facilities, rich experience in production management, strong technical force, scientific testing methods and reliable quality assurance. We can meet your requirements exactly. Our experienced sales teams are very nice and friendly. They are good at English, Japanese and Korean. We will have a pleasant cooperation and supply you high quality products.
With our commitment to supply high-quality products, competitive prices and prompt deliveries, we have won the trust of customers at home and abroad, particularly in the USA, Europe, Africa, Australia, Asia. Sail Rigging sincerely welcome the friends from all over the world come to negotiate business. On the basis of equality and mutual benefit, make the developing cooperation and invest, develop the international rigging market jointly.
