Blower: |
Roots Blower |
Material: |
Iron |
Usage: |
for Manufacture |
Flow Direction: |
Axial Flow |
Pressure: |
High Pressure |
Certification: |
ISO |
Product Description

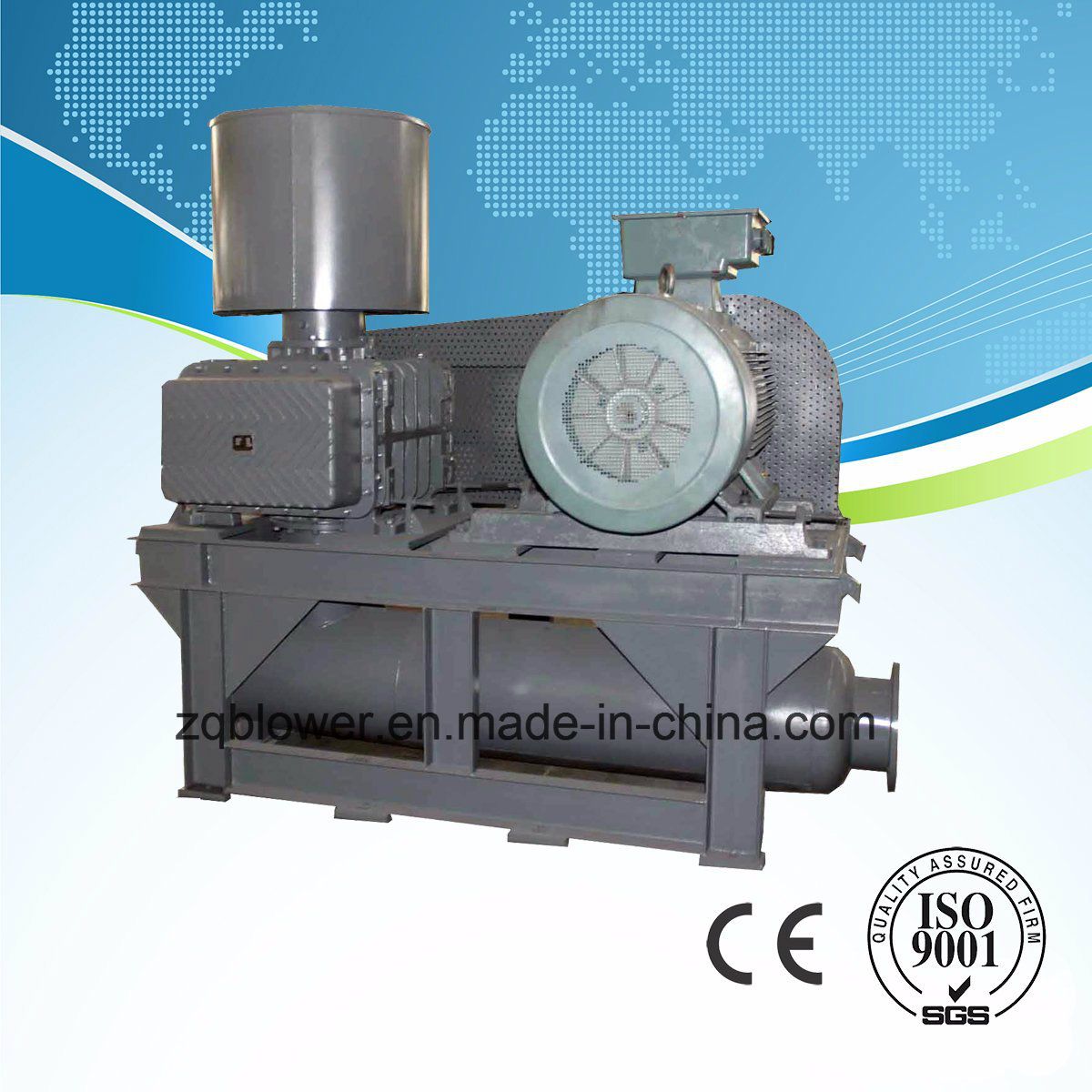

Tri-Lobe Roots Blower For Pneumatic Conveying
ZG Blowers with tri-lobe are heavy duty style new products based on MB blowers which technology is from America.
It is the replacement for Duroflow models of Gardner Denver, RAM/RCS models of Dresser Roots, and RBS models of Robuchi.

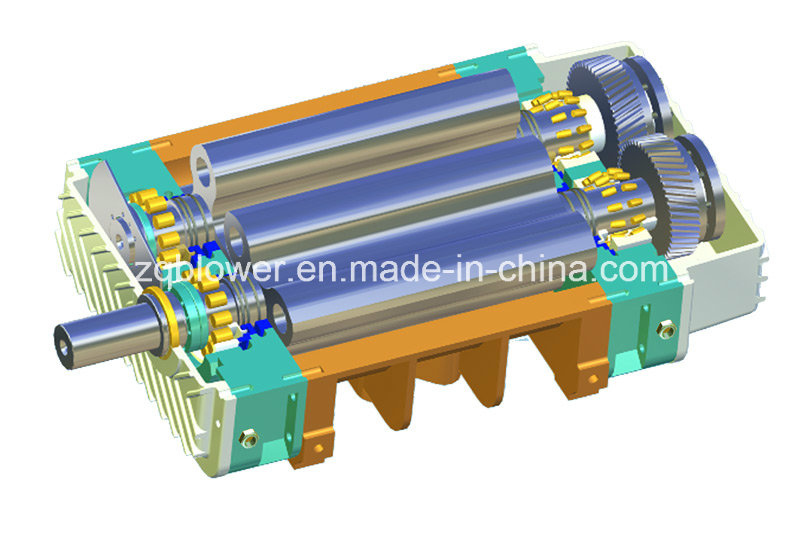

Features:- Low noise tri-lobe rotor
- Noise-reduction know-how application for casing
- Integral-shaft ductile iron impellors
- Dual splash lubrication
- Oversized cylindrical roller bearings
- Hardened teeth face for precision helical timing gear, taper-lock shaft mounting
- Versatile configuration
- Piston ring air seals
- Lip type viton oil seals
- Air cooling
- Automatic belt tensioner and integrated discharge silencer base frame application for the blower package.
Specification:
Roots blower / Vacuum pump
Pressure: 9.8~ 98 KPa / Vacuum: -9.8 to -49 KPa
Flow: 0.43~193.9m3/min / 0.52~193.9m3/min
Application:
Widely used in waste water treatment, petro-chemical, cement, power, metallurgy and pneumatic conveying diverse industries.
