| Price: | US $ 10-1000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union |
| Prod Model: | Custom CNC machining parts |
|---|---|
| Certificate: | ISO, Ts, TUV, BV |
| Application: | Machinery, Oil, Gas, Pipe |
| Surface: | Galvanized, Black, Yellow |
| Size: | 1/2"-80" |
| Service: | Customized OEM |
| Model Number: | OEM |
| Micro Machining Or Not: | Micro Machining |
| Place Of Origin: | Shandong, China (Mainland) |
| Material Capabilities: | Alloy Steel |
| Packing: | Wooden Pallets or Wooden Cases or as Customer's Re |
| Standard: | BSW |
| Material: | Alloy Steel |
| Manufacturing Way: | Forging |
| Type: | Hydraulic |
STANDARDS | SIZE | PRESSURE | TYPE |
GOST flanges | DN15-DN3000 | PN6,PN10,PN16,PN25 | gost12821-80 plate flange,blind flange |
PN40,PN63,PN100 | gost12820-80 collar (welding neck) flange | ||

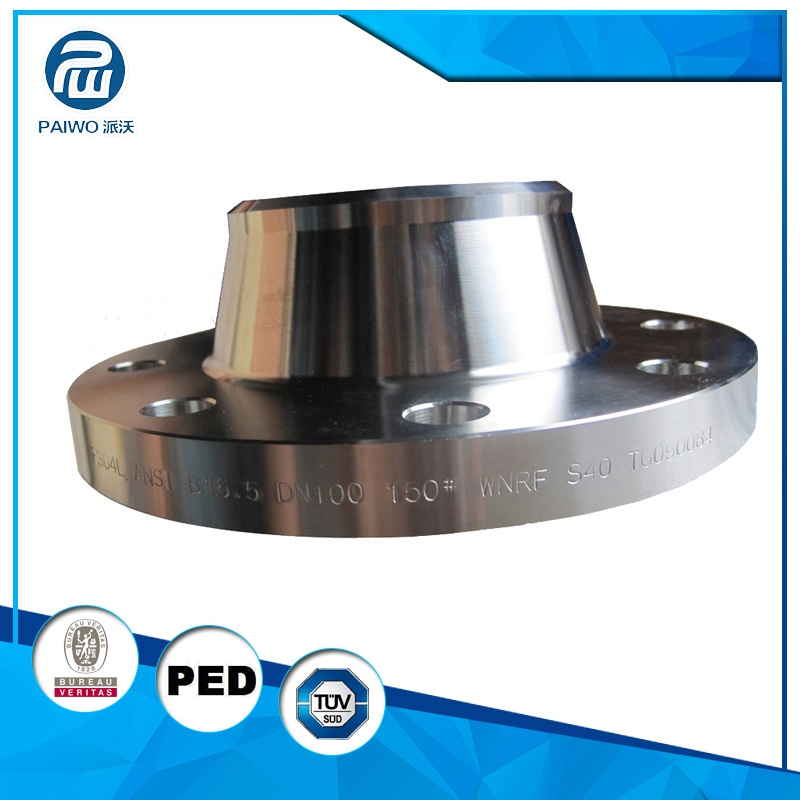

ANSI B16.5 | 1/2"-24" | class75,125,150,300 | slip-on,welding neck,socket welding, |
ASME B16.5 | class400,600,900 | threaded,lap joint,blind,RTJ(ring joint) | |
ASA B16.5 | class1500,2500 | FF(flat face),RF(raised face) | |
ANSI B16.47 A | 12"-60" | class150,300 | slip-on,welding neck ,RTJ(ring joint) |
class400,600,900 | FF(flat face),RF(raised face) | ||
ANSI B16.47 B | 26"-60" | class75,150,300 | slip-on,welding neck ,RTJ(ring joint) |
FF(flat face),RF(raised face) | |||
ANSI B16.36 | 1"-24" | class300,400,600 | welding neck,slip-on,RTJ,threaded |
class900,1500,2500 | FF(flat face),RF(raised face) | ||
AWWA C207 flanges | 4"-144" | class150 | Table 2 AWWA ring flanges classB classD |
class300 | Table 3 AWWA hub flanges classD | ||
class400 | Table 4 AWWA hub flanges classE | ||
class600 | Table 5 AWWA ring flanges classE | ||
class900 | Table 6 AWWA ring flanges classF | ||
class1500 | Table 6 AWWA ring flanges classF | ||
class2500 | Table 7 AWWA blind flanges thickness | ||
DIN flanges | DN10-DN4000 | PN6,PN10 | DIN2502,2503,2527,2565,2566,2573 |
PN16,PN25 | 2576,2627,2628,2629,2630,2631 | ||
PN40,PN64 | 2638,2641,2642,2656,86029,86030 | ||
PN100,PN160 | 2632,2633,2634,2635,2636,2637 | ||
JIS B 2220 | 10A-1500A | 1K,2K,5K,10K,16K | SOPFF,SOPRF,SOH,BL |
20K,30K,40K,63K | A-TYPE,B-TYPE,C-TYPE | ||
6BAR,10BAR,16BAR | welding neck | ||
25BAR,40BAR | slip-on | ||
EN1092-1 | DN10-DN1800 | PN6,PN10,PN16 | TYPE01,02,05,11,12,13 |
21,32,32,36,37 | |||
UNI flanges | DN10-DN2000 | PN6,PN10,PN16 | DIN2642,2282,6093,2254,2527,6092 |
PN25,PN40,PN64 | 6089,2277,2278,2284,2253,6082 | ||
PN100,PN160 | 2276,6083,6084 | ||
SABS1123 | 15mm-800mm | plate | |
BS4504,BS10 | DN10-DN800 | PN6,PN10 | slip-on,welding neck,socket welding |
PN16,PN25 | plate,threaded,lap joint,blind | ||
PN40,PN63 | FF(flat face),RF(raised face) | ||
ISO7005-1 | DN10-DN800 | PN6,PN10 | slip-on,welding neck,socket welding |
PN16,PN25 | plate,threaded,lap joint,blind | ||
PN40,PN63 | FF(flat face),RF(raised face) | ||
Surface Treatment | Rust-proof oil,Black,Yellow,Electro Galvanizing,Hot Dip Galvanizing | ||
Packing | Wooden Pallets or Wooden Cases or As Customers' Requirements | ||
Payment Terms | L/C Or 30 % Advance By T/T and The balance Will be Paid After the copy of B/L | ||
Delivery Time | 30 Days \after the Advance or the L/C | ||
Application | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry and general pipes connecting projects etc. | ||
After-Sales Service | Orders and Products Tracking System | ||
