| Prod Model: |
HZ1542D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |

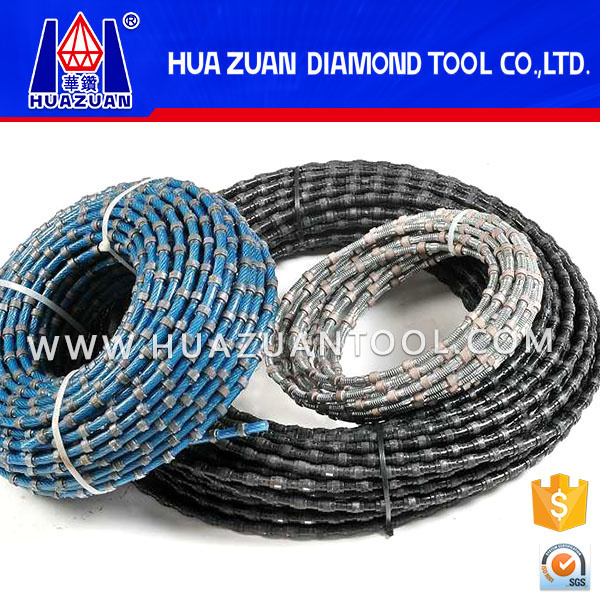

Wire Saw for Cutting Granite Marble Concrete |
| Hardness: |
Soft, Middle, Hard |
| Cutting Speed: |
10-40 |
| Wire Speed(M/S): |
30-40 |
| Technology: |
Sintered, Electroplated, Vacuum Brazed |
| Certification: |
ISO9001:2000, SGS |
| Beads Diameter: |
7.2-11.5mm |
| Price: |
Competitive |
| Grade: |
a |
| Production Processes: |
More Than 70 Processes, 100% Quality Testing |
| Saw Type: |
Chain Saw |
| Application: |
Granite,Marble,Concrete |
| Type: |
Fixed |
| Power Source: |
Hydraulic |
| Brand: |
Huazuan |
Product Description
Product Description
| Application | 1.For Stone Quarry,Block Squaring&Chamfering,Profiling Cutting
2.For Cutting Reinforce Concrete |
| Diameter Of Wire Saw | 7.2mm, 8.0mm, 8.5mm,9.0mm,11.0mm,11.5mm |
| Technology | Sintered,Electroplated,Vaccum Brazed |
| Coating Fix Injection | Plastic,Rubber,Spring,Rubber+Spring,Plastic+Spring |
| Beads/Meter | 40/37/33/28/26pcs |
| Attention | l. Checking the saw regularly and adjust timely.
2.Checking the pearl abrade regularly,Avoid the eccentric wear
3. Checking the joint regularly and adjust timely.
4. The tension of ropes is 250-300kg(Φ4-5mm ropes)
5. Water supply is around 15-25L/min |
| Feature | 1.Very less breakage ratio when using therefore increase the working lifetime.
2.Automatic production ensures stable quality performance.
3.Safe, high efficiency and environment protecting. |
What is the maximum thickness of granite and concrete you can use your wire saw cut?
Depending on the process, Diamond can saw various thicknesses, for example:
Wall saws will typically cut concrete or masonry up to a thickness of 24 inches. In the event that the wall to be cut can be accessed from both sides, a total thickness of 48 inches can be sawed.
Slab saws will typically cut up to 24 inches deep through concrete, asphalt, or brick paving. When thickness exceeds these depths Diamond is equipped to create openings with wire saws.
With a wire saw depth is or thickness is unlimited. Wire saws are capable of cutting through press bases, concrete foundations, reactor vessels, stainless steel, and more.
| Diameter(mm) | Applications | Coating | Bead/m | Cutting Speed(m2/h) | Wire Life(m2/m) |
| Φ11.5/Φ10.5 | Reinforced concrete | rubber+spring | 40 | 0.5-5 | 0.5-8 |
| Φ11.5/Φ11.0 | Granite mine/quarry | rubber/rubber+spring | 40 | 2-12 | 7-22 |
| Φ11.5/Φ11.0/Φ10.5 | Marble mine/quarry | spring/spring+plastic | 28-40 | 4-20 | 15-50 |
| Φ11.0/10.5 | Granite & marble block | plastic/rubber | 37/40 | 6-30 | 7-50 |
| Φ8.8/Φ8.5 | Granite&marble profiling | plastic/rubber | 33/37/40 | 7-30 | 7-40 |
| Φ7.2/Φ8.5 | Granite slab | plastic | 37 | 0.5-1.6 | 6-15 |
Product Pictures
Packaging & Shipping
Our Services
Why Choose us?
1.We are reliable Alibaba Gold Supplier,Support Trade Assurance
2.We are leading manufacturer in diamond tools, more than 20 years experience
3.Rich experience in Global market, export to more than 60 countries.
4.100% QC inspection Before Shipment
5.Keep researching and developing the latest technology
6.Reply within 24 hours.
Company Information
Contact Us
FAQ
Q1:What is the warranty of the diamond wire saw?
A1: The Quality is stable.
This 1 year whatever happen some questions about quality welcome to contract us
Q2:What is the Specific Size of your diamond wire saw?
A2: Our mainly size is 7.2mm 8mm,8.5mm,9mm,10.5mm 11mm 11.5mm and so on,we product the size as request.
Q3:What is Lifespan of Your Diamond wire Saw?
A3:The lifespan of this diamond saw is on the above data.
If you want have other requirement about the quality.We also can satisfy your requirement
Q4:Can we Buy different kind of quality in different stone?
A4:Yes,You can .Give us your requirement .The design are depend on the different hardness of the stones.
Q5: If our factory have no import license can we buy from you?
A5: Of cause you can.If the weight lower than 45kg.We advice you choice send by Express( FedEx,Dhl)
We suggest you can find a company which have import license from your country.
Use their name import from us.
